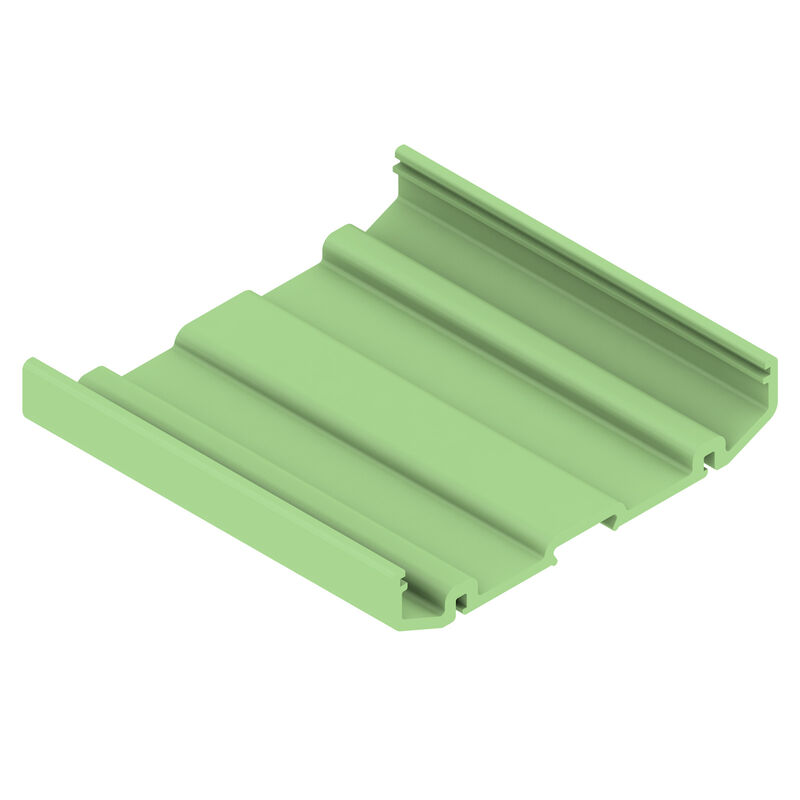

Profile housing, RS 100 Pale green, Extruded profile, Width: 2000 mm

Product ID 4347570000
Gegevensblad downloaden Engineeringondersteuning Productdownloads
Verwante producten 3
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Material data General data Important note Classifications

Approvals

ROHS
Conform

General ordering data

Version
Profile housing, RS 100 Pale green, Extruded profile, Width: 2000 mm
Order No.
4347570000
Type
PF RS 100 GN 2000MM
GTIN (EAN)
4032248945306
Qty.
2
Delivery status
This article will no longer be available in the future.
Last order date
/Date(1774908000000)/

Dimensions and weights

Depth
19 mm
Depth (inches)
0,748 inch
Height
104 mm
Height (inches)
4,094 inch
Width
2.000 mm
Width (inches)
78,74 inch
Net weight
484 g

Temperatures

Operating temperature
-50 °C...60 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Material data

Basic material
PVC
Insulating material
PVC
Surface finish
untreated
UL 94 flammability rating
V-0

General data

IP20 in installed state
Colour
Pale green
Colour chart (similar)
RAL 6021
Encapsulation option
No

Important note

Product information
3 heights are available for the cover profile and the end plates:
TS mounting without cover: TS 32 = 45 mm, TS35x7.5 = 40.5 mm
TS mounting with low cover: TS 32 = 89 mm, TS 35x7.5 = 84.5 mm
TS mounting with high cover: TS 32 = 121 mm, TS 35x7.5 = 116.5 mm
Direct mounting, without/low/high cover: 24 / 69 / 99 mm

Dimensions of the PCB
Thickness: 1.6 (±0.2) mm, width: 100 (+0.5) mm
Dimension of the RS section = length of the printed circuit board – 4.5 mm
Dimension of ADP section = PCB length - 1 mm

Example:
PCB length 160 mm, RS = 155.5 mm, ADP = 159 mm"

Classifications

ETIM 8.0
EC002779
ETIM 9.0
EC002779
ETIM 10.0
EC002779
ECLASS 14.0
27-19-06-01
ECLASS 15.0
27-19-06-01
