RCMKIT-I 24VAC 3CO LD

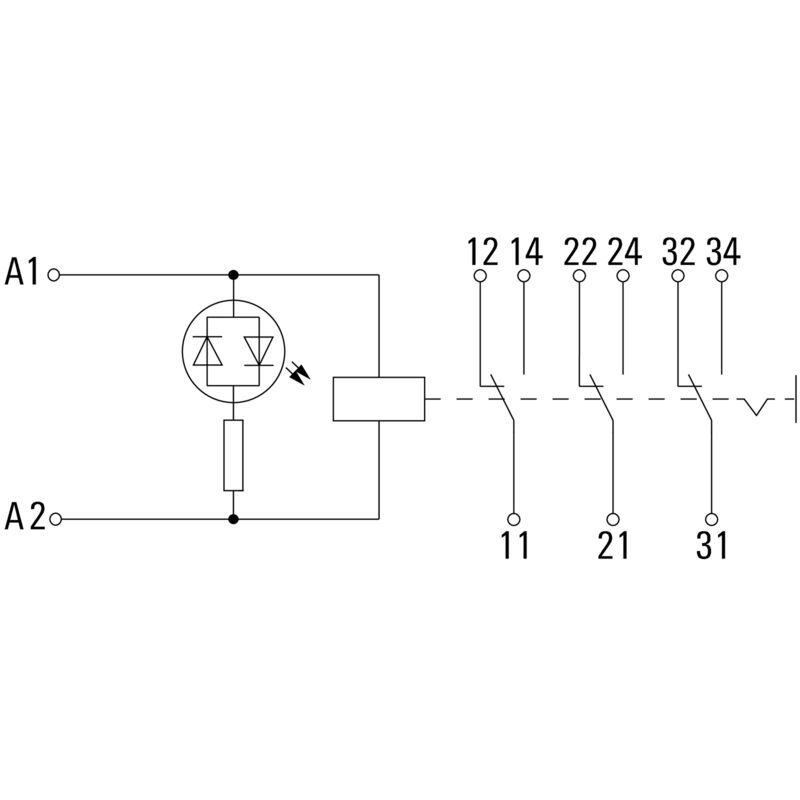

RIDERSERIES RCM, Relay module, Number of contacts: 3, CO contact AgNi, Rated control voltage: 24 V AC, Continuous current: 10 A, Screw connection, Test button available: Yes
Product ID
8920990000
Eigenschappen
| Version | RIDERSERIES RCM, Relay module, Number of contacts: 3, CO contact AgNi, Rated control voltage: 24 V AC, Continuous current: 10 A, Screw connection, Test button available: Yes |
| Order No. | 8920990000 |
| Type | RCMKIT-I 24VAC 3CO LD |
| GTIN (EAN) | 4032248692248 |
| Qty. | 10 items |
| Depth | 71,6 mm |
| Depth (inches) | 2,819 inch |
| Height | 73,5 mm |
| Height (inches) | 2,894 inch |
| Width | 27,2 mm |
| Width (inches) | 1,071 inch |
| Net weight | 93 g |
| Storage temperature | -40 °C...70 °C |
| Operating temperature | -40 °C...70 °C |
| Humidity | 40 °C / 93 % rel. humidity, no condensation |
| REACH SVHC | / |
| Rated control voltage | 24 V AC |
| Rated current AC | 55 mA |
| Power rating | 1.32 VA |
| Coil resistance | 192 Ω ± 10 % |
| Coil tolerance | 10 % |
| Status indicator | red LED |
| Rated switching voltage | 240 V AC |
| Continuous current | 10 A |
| Max. switching frequency at rated load | 0,1 Hz |
| Max. switching voltage, AC | 250 V |
| Min. switching power |
1 mA @ 24 V
10 mA @ 12 V 100 mA @ 5 V |
| Inrush current | 20 A / 20 ms |
| AC switching capacity (resistive), max. | 2500 VA |
| DC switching capacity (resistive), max. | 240 W @ 24 V |
| Switch-on delay | ≤ 15 ms |
| Switch-off delay | ≤ 10 ms |
| Contact type | 3 CO contact (AgNi) |
| Mechanical service life |
AC coil 20 x 106 switching cycles
DC coil 30 x 106 switching cycles |
| Rail | TS 35 |
| Test button available | Yes |
| Version of test button |
Lockable test button
Momentary test button |
| Mechanical switch position indicator | Yes |
| Colour | black |
| Rated voltage | 250 V |
| Pollution severity | 2 |
| Surge voltage category | III |
| Insulating material group | IIIa |
| Clearance and creepage distances for control side - load side | ≥ 4 mm |
| Dielectric strength for control side - load side | 2.5 kVeff / 1 Min. |
| Dielectric strength of neighbouring contacts | 2.5 kVeff / 1 Min. |
| Dielectric strength of open contact | 1.2 kVeff /1 min. |
| Impulse withstand voltage | 5 kV (1.2/50 µs) |
| Protection degree | IP20 |
| Certificate no. (CSA) relay | 249409-2426937 |
| Certificate no. (CSA) base | 249409-2295474 |
| Certificate No. (DNV) | TAA000011A |
| Certificate no. (cURus) relay | E522350 |
| Certificate no. (cURus) base | E223759 |
| Wire connection method | Screw connection |
| Stripping length, rated connection | 8 mm |
| Tightening torque, min. | 0,5 Nm |
| Tightening torque, max. | 0,7 Nm |
| Clamping range, rated connection | 2,5 mm² |
| Clamping range, min. | 1 mm² |
| Clamping range, max. | 2,5 mm² |
| Wire cross-section, solid, min. | 1 mm² |
| Wire cross-section, solid, max. | 2,5 mm² |
| Wire connection cross section, finely stranded, min. | 1 mm² |
| Wire connection cross section, finely stranded, max. | 2,5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min. | 1 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max. | 2,5 mm² |
| Conductor cross-section, flexible, AEH (DIN 46228-1), min. | 1 mm² |
| Conductor cross-section, flexible, AEH (DIN 46228-1), max. | 2,5 mm² |
| Wire connection cross section, finely stranded, two clampable wires, min. | 1 mm² |
| Wire cross-section, finely stranded, two clampable wires, max. | 1,5 mm² |
| Blade size | size PZ1 |
| Product information | IP20 without connected conductor at complete opened clamping yoke connection. |
