Eigenschappen
| Product type | Sensor/actuator line |
| Sheathing colour | black |
| Version | Sensor/actuator line, One end without connector, M12, Number of poles : 5, 15 m, Female socket, straight, Shielded: No, LED: No, Sheath material: PVC, Halogen: Yes |
| Order No. | 1925591500 |

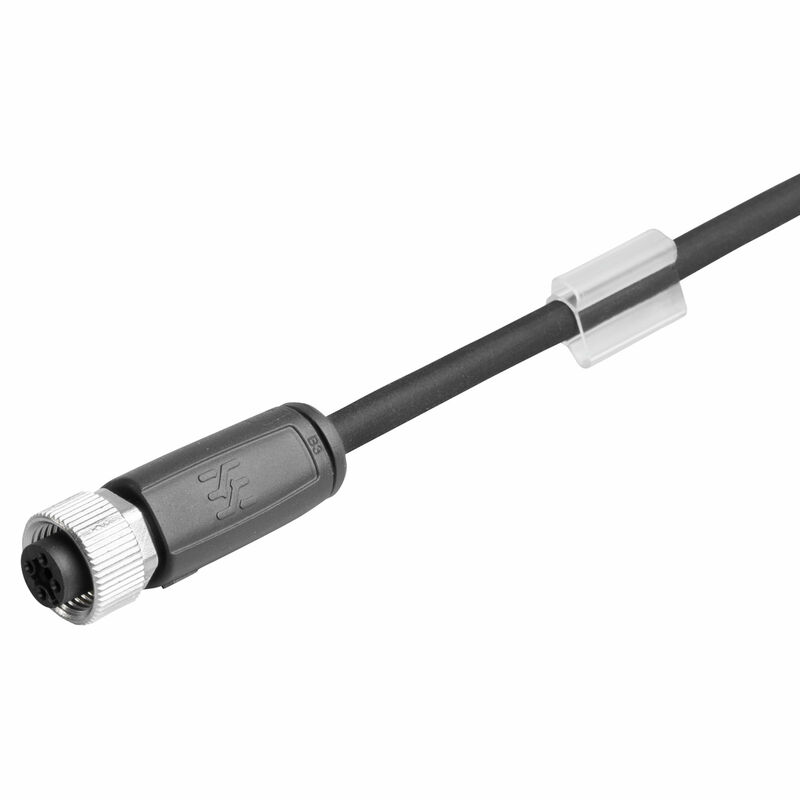

| Type | SAIL-M12BG-5-15V |
| GTIN (EAN) | 4050118181234 |
| Qty. | 1 items |
| Net weight | 715 g |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | 1c533b66-fcff-4da5-b89f-fd55fbf5cb55 |
| Cable length | 15 m |
| Colour coding |
brown
white blue black grey |
| Configurable cable length | No |
| Core cross-section | 0,34 mm² |
| Halogen | Yes |
| Insulation | PVC |
| Irradiation crosslinked | No |
| Number of poles | 5 |
| Outer cladding in accordance with UL AWM style | 2464 (80 °C / 300 V) |
| Outside diameter | 5.7 mm ± 0.2 mm |
| Resistant to welding beads | No |
| Sheath material | PVC |
| Sheathing colour | black |
| Shielded | No |
| Suitable for cable carriers | No |
| Temperature range, moving | -5...80 °C |
| Temperature range, stationary | -30...80 °C |
| Torsion resistance | 0 °/m |
| Welding spark resistance | No |
| Coding | A-coded |
| Connection thread | M12 |
| Contact surface | Gold-plated |
| Housing main material | PUR |
| Insulation strength | 108 Ω |
| jumpered | No |
| LED | No |
| Plugging cycles | ≥ 100 |
| Pollution severity | 3 |
| Protection degree |
IP67
IP68 when screwed in IP65 IP66 |
| Rated current | 4 A |
| Rated voltage | 60 V |
| Temperature range of housing | -25…+85 °C |
| Threaded ring material | Diecast zinc |
| Tightening torque | M12: 0.8 - 1.2 Nm |
| Version | Female socket, straight |
| Insulation strength | 108 Ω |
| Rated voltage | 60 V |
| Certificate no. (cULus) | E307231 |
| Connector standard | IEC 61076-2-101 |
| Connector standard | IEC 61076-2-101 |
| Plug left | M12, A-coded, IP69, female contact, straight, Plastic, unshielded |
| Plug right | free conductor end |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_153091) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1925591500) |
| Product Change Notification |
[DE - Technische Änderung zu M12 Gewindering mit 6-Kant](https://mdcop.weidmueller.com/mediadelivery/asset/900_88623)
[EN - Technical change to M12 nut with additional hexagonal mounting](https://mdcop.weidmueller.com/mediadelivery/asset/900_88624) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| Brochures | [FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293) |
| ETIM 6.0 | EC001855 |
| ETIM 7.0 | EC001855 |
| ETIM 8.0 | EC001855 |
| ETIM 9.0 | EC001855 |
| ECLASS 9.0 | 27-06-03-11 |
| ECLASS 9.1 | 27-06-03-11 |
| ECLASS 10.0 | 27-06-03-11 |
| ECLASS 11.0 | 27-06-03-11 |
| ECLASS 12.0 | 27-06-03-11 |
| ECLASS 13.0 | 27-06-03-11 |
| Approvals |    |
| ROHS | Conform |
| UL File Number Search | [UL Website](LINK/UL_search.html) |
| Certificate no. (cULus) | E307231 |
