SAIL-M12BG-CD-10B
SAIL-M12BG-CD-10B
Dimensioned drawing
Male, straight
SAIL-M12BG-CD-10B
Pole scheme
M12 = A-coded
SAIL-M12BG-CD-10B
Wiring diagram
SAIL-M12BG-CD-10B
The ideal tool: Screwty ® with torque function
Light, securely screwed-in round plug-in connectors. Screwty set DM / VPE: 1 / Order No.: 1920000000 Adapters: M12, M12 F, M8, M8 F

SAIL-M12BG-CD-10B

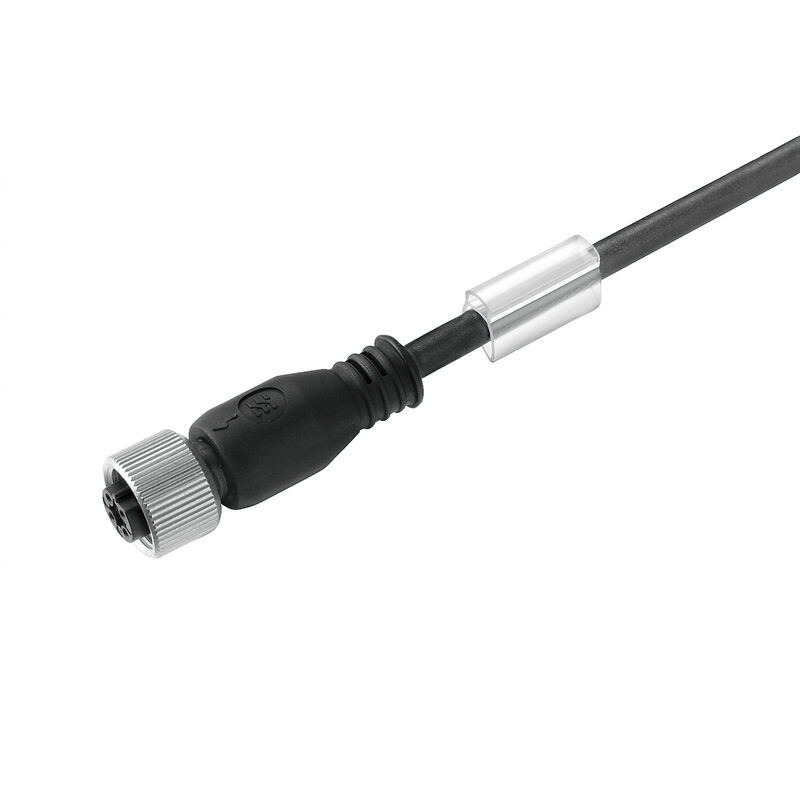

Bus line, One end without connector, M12, Number of poles: 5, 10 m, Female socket, straight, Shielded: Yes, LED: No, Sheath material: PVC, Halogen: Yes

Product ID 1060121000
Gegevensblad downloaden Engineeringondersteuning Productdownloads
Verwante producten 5
Approvals General ordering data Dimensions and weights Environmental Product Compliance Технические характеристики кабеля Allmänna tekniska data Cable specific standards Electrical properties Общие стандарты Plug, left Plug, right Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/0d1637a4-c7dd-4915-8bc8-4c9de8d8b393/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Сертификат № (cULus)
E307231

General ordering data

Version
Bus line, One end without connector, M12, Number of poles: 5, 10 m, Female socket, straight, Shielded: Yes, LED: No, Sheath material: PVC, Halogen: Yes
Order No.
1060121000
Тип
SAIL-M12BG-CD-10B
GTIN (EAN)
4032248809035
Qty.
1 items

Dimensions and weights

Length
10 m
Length (inches)
393,701 inch
Net weight
467 g

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
6c
REACH SVHC
Lead 7439-92-1
SCIP
1c533b66-fcff-4da5-b89f-fd55fbf5cb55

Технические характеристики кабеля

Acceleration
7 m/s²
Bending cycles
5 млн
Bending radius, min., stationary
10 x диаметр кабеля
Cable length
10 m
Colour coding
red
black
white
blue
Configurable cable length
No
Core cross-section
0,34 mm²
Halogen
Yes
Hybrid cable
No
Insulation
PVC
Irradiation crosslinked
No
Number of poles
5
Number of wires
5
Outer cladding in accordance with UL AWM style
2571 (80 °C)
Outside diameter
6.7 mm ± 0.3 mm
Resistance to oils
in accordance with IEC 60811-2-1
Resistance to spread of flame
According to IEC 60754-1
Resistant to welding beads
No
Sheath material
PVC
Sheathing colour
violet
Shielded
Yes
Speed
180 m/min
Suitable for cable carriers
No
Temperature range, moving
-25...80 °C
Temperature range, stationary
-40...80 °C
Welding spark resistance
No
Wire cross section (Print/Online)
2 x 0.34 mm² + 2 x 0.22 mm²

Allmänna tekniska data

Coding
A-kodad
Connection thread
M12
Couple de serrage
M12: 0.8 - 1.2 Nm
gebrückt
No
Hlavní materiál krytu
PUR
LED
No
Material del anillo roscado
Brass, nickel-plated
Materiál kontaktu
CuZn35PB2
Nominal current
4 A
Nominal voltage
125 V
Povrch kontaktu
Gold-plated
Schutzart
IP67
Steckzyklen
≥ 100
Temperature range of housing
-25…+80 °C
Verschmutzungsgrad
3
Verze
Female socket, straight

Cable specific standards

Gaz nocifs
According to EN-50267-2-1

Electrical properties

Nominal voltage
125 V

Общие стандарты

Certificate no. (cULus)
E307231
Connector standard
IEC 61076-2-101

Plug, left

Csatlakozó, bal
M12, A-coded, Number of poles: 5, IP67, female contact, straight, plug, shielded

Plug, right

Prise de raccordement à droite
Free conductor end

Classifications

ETIM 8.0
EC002599
ETIM 9.0
EC002599
ETIM 10.0
EC002599
ECLASS 14.0
27-06-03-08
ECLASS 15.0
27-06-03-07
