Eigenschappen

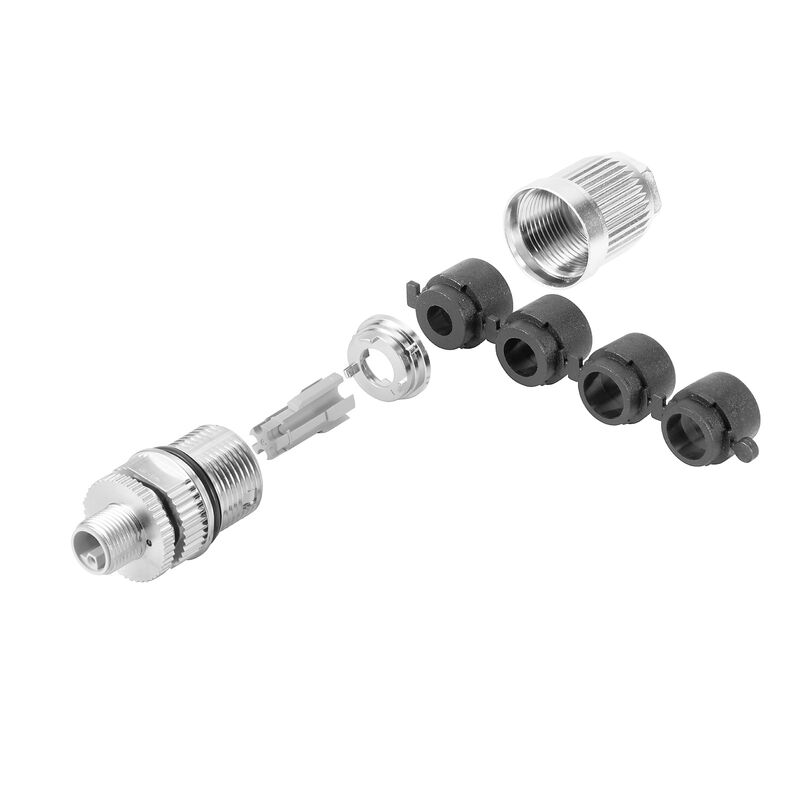

| Version | Field attachable connector, M12 plug |
| Order No. | 2531020000 |
| Type | SAISC-M-5S-M12-L-COD |
| GTIN (EAN) | 4050118541137 |
| Qty. | 1 items |
| Net weight | 43 g |
| RoHS Compliance Status | Compliant with exemption |
| RoHS Exemption (if applicable/known) | 6c |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | ebf89fc8-a87f-4691-b87a-dfb9921774b4 |
| Cable diameter, max. | 13,5 mm |
| Cable diameter, min. | 5,8 mm |
| Coding | L-coded |
| Conductor cross-section, max. | 2,5 mm² |
| Conductor cross-section, min. | 0,5 mm² |
| Connection cross-section, max. | 1,5 mm² |
| Connection cross-section, min. | 0,75 mm² |
| Contact material | Cu |
| Contact surface | Gold-plated |
| Housing main material | Zinc diecast |
| Number of poles | 5 |
| Plugging cycles | 500 |
| Pollution severity | 3 |
| Protection degree |
IP67
when screwed in |
| Rated current | 16 A |
| Rated current | 16 A |
| Rated voltage | 63 V |
| Shield connection | Yes |
| Temperature range of housing | -40 … +85 ° C |
| Threaded ring material | Diecast zinc |
| Type of connection | Crimp connection |
| Number of poles | 5 |
| Connection 1 | M12 |
| Connection 2 | Crimp |
| Housing main material | Zinc diecast |
| Connection thread | M12 plug |
| Contact material | Cu |
| Contact surface | Gold-plated |
| Protection degree |
IP67
when screwed in |
| Plugging cycles | 500 |
| Connector standard | IEC 61076-2-111 |
| Product information |
Enclosures, inserts and crimp contacts need to be ordered separately. 4 x Crimp contact, Pin / 1 x Crimp contact, Socket for FE-Function. |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_181348) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2531020000) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC002635 |
| ETIM 7.0 | EC002635 |
| ETIM 8.0 | EC002635 |
| ETIM 9.0 | EC002635 |
| ECLASS 9.0 | 27-44-01-02 |
| ECLASS 9.1 | 27-44-01-03 |
| ECLASS 10.0 | 27-44-01-02 |
| ECLASS 11.0 | 27-44-01-02 |
| ECLASS 12.0 | 27-44-01-16 |
| ECLASS 13.0 | 27-44-01-02 |
| ECLASS 14.0 | 27-44-01-16 |
| Approvals |    |
| ROHS | Conform |
| UL File Number Search | [UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html) |
| Certificate No. (cURus) | E307231 |
