Eigenschappen

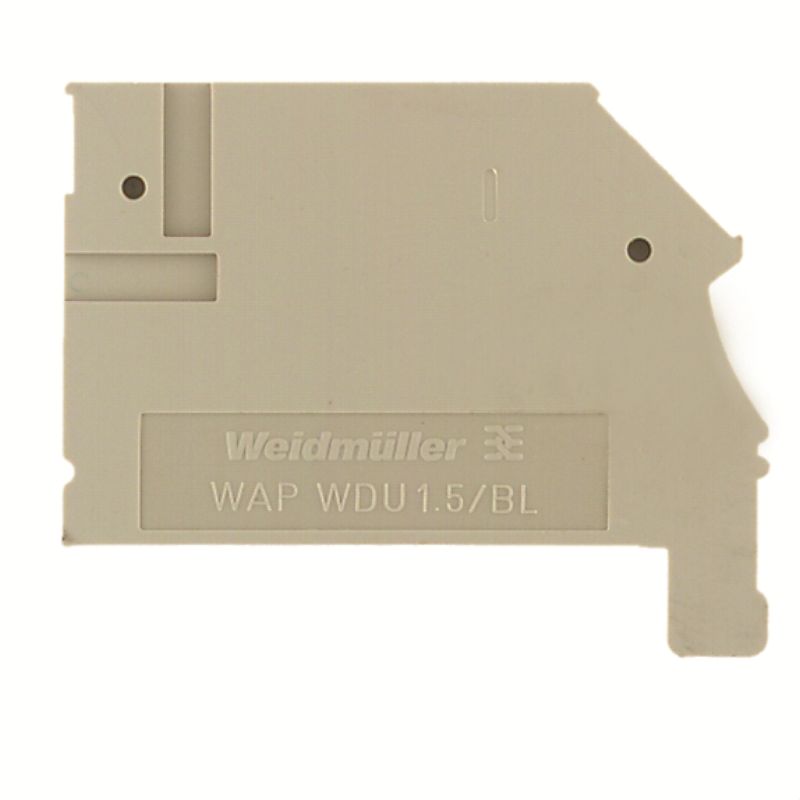

| Version | End plate (terminals), dark beige, Height: 45.4 mm, Width: 2.5 mm, V-0, Wemid |
| Order No. | 1577330000 |
| Type | WAP WDU1.5/BLZ |
| GTIN (EAN) | 4008190127046 |
| Qty. | 50 items |
| Depth | 37 mm |
| Depth (inches) | 1,457 inch |
| Height | 45,4 mm |
| Height (inches) | 1,787 inch |
| Width | 2,5 mm |
| Width (inches) | 0,098 inch |
| Net weight | 1,806 g |
| Storage temperature | -25 °C...55 °C |
| Continuous operating temp., min. | -50 °C |
| Continuous operating temp., max. | 120 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Material | Wemid |
| Colour | dark beige |
| UL 94 flammability rating | V-0 |
| Version | End plate |
| Installation advice |
Feed-through (bushing)
Direct mounting |
| Snap-on | No |
| Installation advice |
Feed-through (bushing)
Direct mounting |
| Approval/Certificate/Document of Conformity | [Confirmation of Standards EN 45545-2_2020-10](https://mdcop.weidmueller.com/mediadelivery/asset/900_308425) |
| Engineering Data |
[CAD data -- 18503_WAP_WDU1.5-BLZ_DXF.dxf](https://mdcop.weidmueller.com/mediadelivery/asset/900_38076)
[CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_62190) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1577330000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1577330000) |
| User Documentation | [StorageConditionsTerminalBlocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_87149) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000886 |
| ETIM 7.0 | EC000886 |
| ETIM 8.0 | EC000886 |
| ETIM 9.0 | EC000886 |
| ECLASS 9.1 | 27-14-11-33 |
| ECLASS 10.0 | 27-14-11-33 |
| ECLASS 11.0 | 27-14-11-33 |
| ECLASS 12.0 | 27-14-11-33 |
| ECLASS 13.0 | 27-25-03-01 |
| ECLASS 14.0 | 27-25-03-01 |
| ROHS | Conform |
Is accessoire van
-
Product ID:1784460000VPE:100 items
Feed-through terminal block, Screw connection, dark beige, 1.5 mm², 16 A, 250 V, Number of connections: 3, Number of levels: 1, TS 35, V-0, Wemid, 120 °C
-
Product ID:1577340000VPE:100 items
Feed-through terminal block, Screw connection, dark beige, 1.5 mm², 16 A, 250 V, Number of connections: 3, Number of levels: 1, TS 35, V-0, Wemid, 120 °C
-
Product ID:1577260000VPE:100 items
Feed-through terminal block, Screw connection, dark beige, 1.5 mm², 16 A, 250 V, Number of connections: 3, Number of levels: 1, TS 35, V-0, Wemid, 120 °C
-
Product ID:1038900000VPE:100 items
Feed-through terminal block, Screw connection, dark beige, 2.5 mm², 21.5 A, 400 V, Number of connections: 1, Number of levels: 1, TS 35, V-0, Wemid, 120 °C
Terminal BlocksUniversal rangeClamping yoke technologyW-SeriesStandardterminal blocks with miscellaneous connection1-tier1.5 mm²
Terminal BlocksUniversal rangeClamping yoke technologyW-SeriesStandardterminal blocks with miscellaneous connection1-tier2.5 mm²
