AAM 6 YE FLASH

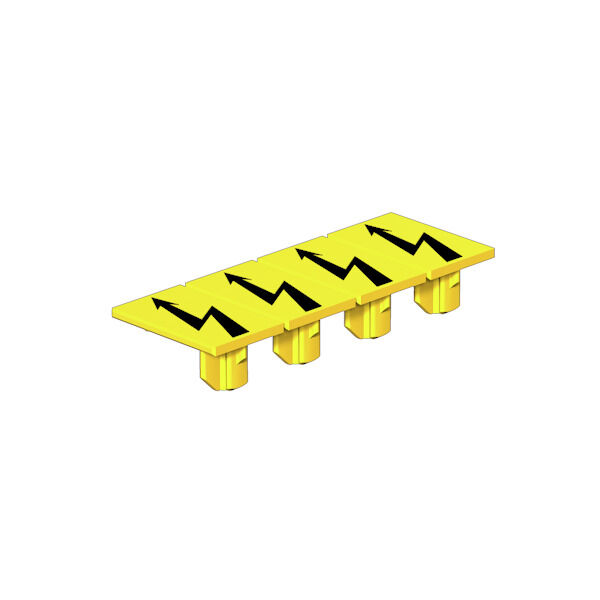

Product image

AAM 6 YE FLASH

Terminal marker, 13 x 8.1 mm, Pitch in mm (P): 8.00 yellow

Product ID 2635570000
Gegevensblad downloaden Engineering Support Product Downloads
Is accessoire van 59 Verwante producten 7
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Material data Rating data IECEx/ATEX Dimensions General Classifications

Approvals

ROHS
Conform

General ordering data

Version
Terminal marker, 13 x 8.1 mm, Pitch in mm (P): 8.00 yellow
Order No.
2635570000
Type
AAM 6 YE FLASH
GTIN (EAN)
4050118674514
Qty.
40  items

Dimensions and weights

Depth
5,3  mm
Depth (inches)
0,209  inch
Height
13  mm
Height (inches)
0,512  inch
Width
8,1  mm
Width (inches)
0,319  inch
Net weight
0,088  g

Temperatures

Operating temperature range
-40...100 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Material data

Material
PA 6.6
Colour
yellow
UL 94 flammability rating
V-2

Rating data IECEx/ATEX

Operating temperature range
-40...100 °C

Dimensions

Pitch in mm (P)
8  mm

General

Operating temperature range, max.
100  °C
Operating temperature range, min.
-40  °C

Classifications

ETIM 6.0
EC000761
ETIM 7.0
EC000761
ETIM 8.0
EC000761
ETIM 9.0
EC000761
ETIM 10.0
EC000761
ECLASS 9.0
27-14-11-37
ECLASS 9.1
27-14-11-37
ECLASS 10.0
27-14-11-37
ECLASS 11.0
27-28-11-01
ECLASS 12.0
27-28-11-01
ECLASS 13.0
27-28-11-01
ECLASS 14.0
27-28-11-01
ECLASS 15.0
27-28-11-01
