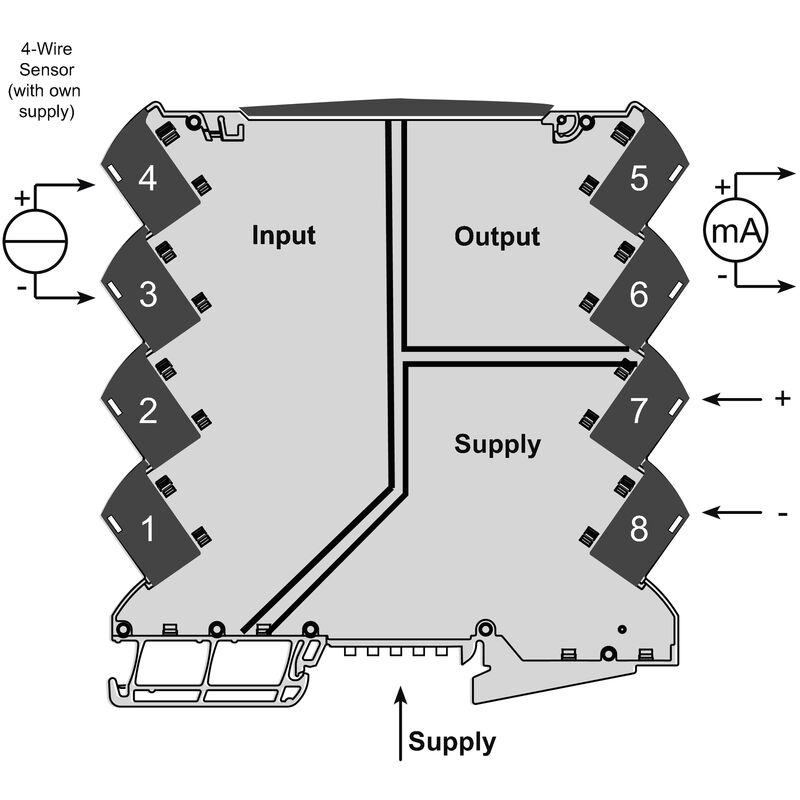

Connection diagram
ACT20M-CI-CO-S
Dimensioned drawing
ACT20M-CI-CO-S

ACT20M-CI-CO-S

Analogue isolating amplifier, Input : 0(4)-20 mA, Output : 0(4)-20 mA

Ürün No. 1175980000
Konfigüratörde aç
Veri sayfasını indir Mühendislik desteği Ürün İndirmleri
Aksesuarlar 4 İlgili ürünler 4
Approvals General ordering data Dimensions and weights Temperatures Probability of failure Environmental Product Compliance Input Kimenet General data Соответствие стандартам по изоляции Data for Ex applications (ATEX) Connection data Zgodność z EMC i aprobaty Descrizione articolo Classifications Tender specification sheets

Approvals

Homologaciones
![](https://assets.dam.weidmueller.com/assets/api/8761d6a8-633c-4aff-8793-97a5d2b0ca50/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/0d1637a4-c7dd-4915-8bc8-4c9de8d8b393/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/cbf09862-97e9-475d-b71a-c6db1e3e9933/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/33adcb9c-2865-4cbb-8057-1da77b87f940/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/52b59257-358c-4bc4-9ea4-df407cebf157/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/6bcf1f04-895d-40c6-8f30-a01c9cbab475/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/5855f480-81e6-48e1-aa53-1e87419df7ba/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Nr certyfikatu (cULus)
E337701

General ordering data

Ausfuehrung
Analogue isolating amplifier, Input : 0(4)-20 mA, Output : 0(4)-20 mA
Order No.
1175980000
Art
ACT20M-CI-CO-S
GTIN (EAN)
4032248970131
Qty.
1 adet

Dimensions and weights

Tiefe
114,3 mm
Depth (inches)
4,5 inch
Höhe
112,5 mm
Height (inches)
4,429 inch
Breite
6,1 mm
Width (inches)
0,24 inch
Net weight
87 g

Temperatures

Tárolási hőmérséklet
-40 °C...85 °C
Üzemi hőmérséklet
-25 °C...70 °C
Feuchtigkeit bei Betriebstemperatur
0...95 % (no condensation)
Humidity
40 °C / 93 % rel. humidity, no condensation

Probability of failure

SIL in compliance with IEC 61508
None
MTBF
284 a

Environmental Product Compliance

RoHS megfelelőségi állapot
Compliant with exemption
RoHS alóli kivétel (ha van/ismert ilyen)
7a, 7cI
REACH SVHC
Lead 7439-92-1
SCIP
2f6dd957-421a-46db-a0c2-cf1609156924

Input

Sensor
Current source
Sensor with own supply
4-wire sensor
수량 입력
1
입력 저항, 전류
20 Ω + PTC 50 Ω
입력 전류
0...20 mA
4…20mA
전압 강하, 전류 입력
<1.5 V

Kimenet

Corrente di impedenza di carico
≤ 600 Ω
@ max 23mA
Gränsfrekvens (-3 dB)
100 Hz
Kimenetek száma
1
Typ
active
connected control must be passive
출력 전류
0...20 mA
4...20 mA

General data

Leistungsaufnahme, typ.
0,45 W
공급 전압
24 V DC ±30 % at terminal or via CH20M rail bus
공칭 소비 전력
1,2 VA
구성
none
보호 등급
IP20
스텝 반응 시간
≤ 7 ms
온도 계수
≤ 0.01 % / °C
작동 고도
≤ 2000 m
장착 레일
TS 35
전력 소비, 최대
0,8 W
정확도
<0.05 % of measuring range

Соответствие стандартам по изоляции

EMC 표준
EN 61326-1
갈바닉 절연
3-way isolator
서지 전압 범주
II
오염 심각도
2
절연 전압
2.5 kVeff /1 min.
정격 전압
300 Veff

Data for Ex applications (ATEX)

identificazione
II 3 G Ex nA IIC T4 Gc
IECEx - gas labelling
Ex nA IIC T4 Gc
Standard: IEC 60079-0-15
Installation location
Device installed in safe area, zone 2

Connection data

Type of connection
Screw connection
Coppia di serraggio, min.
0,4 Nm
Par de apriete, max.
0,6 Nm
Clamping range, rated connection
2,5 mm²
Clamping range, min.
0,5 mm²
Clamping range, max.
2,5 mm²
Wire connection cross section AWG, min.
AWG 30
Wire connection cross section AWG, max.
AWG 14

Zgodność z EMC i aprobaty

EMC standards
EN 61326-1
Standards
IEC 61010-1

Descrizione articolo

Description du produit
Dwukanałowy, nieregulowany wzmacniacz separujący prądu stałego ACT20M-CI-CO-S zapewnia separację standardowych analogowych sygnałów prądowych. Analogowy prądowy sygnał wejściowy jest liniowo przetwarzany na analogowy prądowy sygnał wyjściowy i jest separowany galwanicznie. Zasilanie jest galwanicznie odseparowane od wejścia oraz wyjścia (separacja 3-kierunkowa) poprzez bezpośrednie podłączenie lub szynę montażową Weidmüller

Nieregulowany izolujący wzmacniacz prądu stałego ACT20M CI-2CO-S jest wyposażony w te same funkcje, ale ma 2 galwanicznie separowane wyjścia (separacja 4-kierunkowa).

Classifications

ETIM 8.0
EC002653
ETIM 9.0
EC002653
ETIM 10.0
EC002653
ECLASS 14.0
27-21-01-20
ECLASS 15.0
27-21-01-20

Tender specification sheets

Ausschreibungstext lang

Standard signal isolating amplifier
1-channel signal isolating amplifier in 6.1 mm width with external power supply,
for transmitting and isolating analogue DC current signals 0/4...20 mA.

Add-on housing for TS35 rail mounting
Dimensions: L/W/H 114.3/ 6.1/ 112.5 mm
Screw connection / Nominal cross-section 2.5 mm2
Protection degree: IP 20

Input                         0/4...20 mA
Output                                             0/4...20 mA
Load resistance             < 600 Ohm
Transmission error             < 0,05 % v. E.
Limit frequency 100 Hz
Auxiliary power                                     24 VDC +/- 30 %
Power loss approx. 1.2 W
Ambient
temperature range -25 °C...+70 °C

Isolation                                 EN 61010-1, 3-way isolation up to 2.5 kV AC/DC of all circuits against each other
Test voltage                               2.5 kV input against output against auxiliary power
Rated
voltage                                           300 V AC/DC at overvoltage category II and pollution degree 2
Approvals cULus, FM Div2, ATEX Zone2, DNV, GL




Type                                                             ACT20M-CI-CO-S


Short specification
Standard signal isolating amplifier
1-channel signal isolating amplifier in 6.1 mm width with external power supply,
for transmitting and isolating analogue DC current signals from 0/4 to 20 mA
