CC-DT-H 15/49 BL
CC-DT-H 15/49 BL

CC-DT-H 15/49 BL

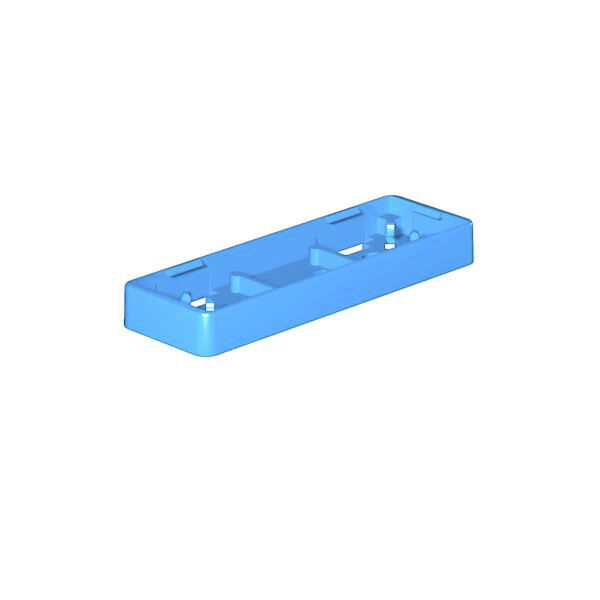

ClipCard, Accessories, 17 x 52 mm, blue

Produkt ID 3009100000
Download datablad Product Downloads
Er tilbehør til 4 Anvendte produkter 6
General ordering data Dimensions and weights Temperatures Environmental Product Compliance General data Device markers Classifications

General ordering data

バージョン
ClipCard, Accessories, 17 x 52 mm, blue
注文番号
3009100000
유형
CC-DT-H 15/49 BL
GTIN (EAN)
4099986911680
Qty.
25 Styk

Dimensions and weights

깊이
6 mm
Depth (inches)
0.236 inch
높이
17 mm
Height (inches)
0.669 inch
너비
52 mm
Width (inches)
2.047 inch
Net weight
1.766 g

Temperatures

Operating temperature range
-40...100 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%
Product Carbon Footprint
  • Cradle to gate:
    0.027 kg CO2 eq.

General data

Barwny
blue
Halogenki
No
Klasa palności wg UL 94
HB
Materiał podstawowy
Polyamide 66
Możliwość wykrycia zgodnie z wymaganiami Rondotest
4.7 mm Al
Width
52 mm
zakres temperatur roboczych, maks.
100 °C
zakres temperatur roboczych, min.
-40 °C
Zakres temperatury stosowania
-40...100 °C
Рекомендованные отрасли промышленности
Food processing industry
버전
Marker holder

Device markers

할로겐
No

Classifications

ETIM 8.0
EC001288
ETIM 9.0
EC001288
ETIM 10.0
EC001288
ECLASS 14.0
27-28-11-04
ECLASS 15.0
27-28-11-04
