IE-C5DE4UP0100PCAPSA-E

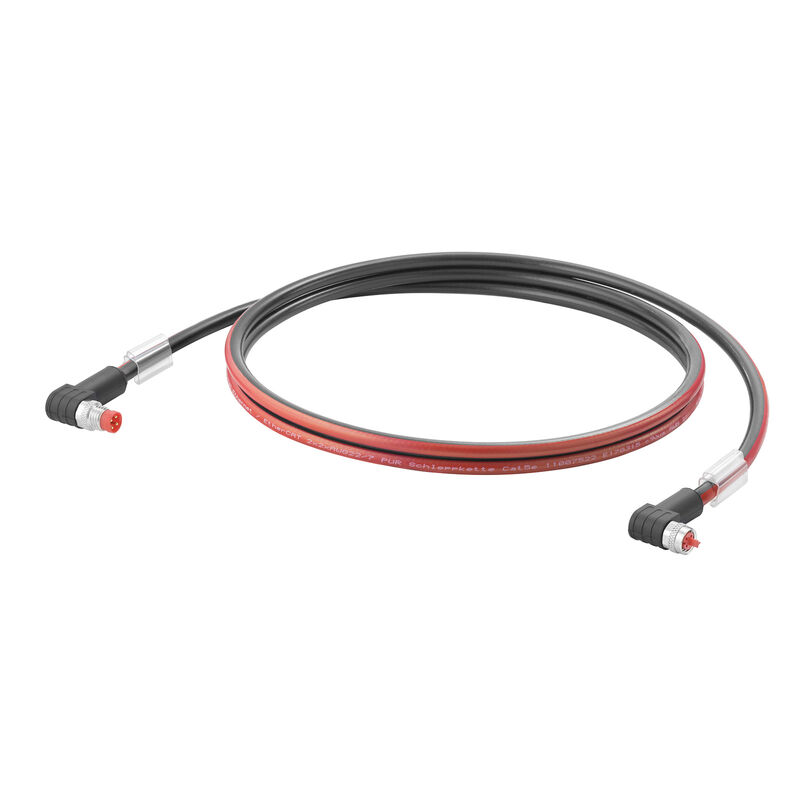

Dragline cable, M8 P-code - IP67 angeled pin, M8 P-code - IP67 angeled socket, Cat. 5e, PUR, 10 m

Ürün No. 2717810100
Veri sayfasını indir Product Downloads
İlgili ürünler 50
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Technical specifications for cable General technical data Plug, left Plug, right Besorolások

Approvals

ROHS
Conform

General ordering data

Utförande
Dragline cable, M8 P-code - IP67 angeled pin, M8 P-code - IP67 angeled socket, Cat. 5e, PUR, 10 m
Order No.
2717810100
Type
IE-C5DE4UP0100PCAPSA-E
GTIN (EAN)
4050118779899
Qty.
1 adet

Dimensions and weights

Längd
10 m
Length (inches)
393,701 inch
Net weight
625 g

Temperatures

Drifttemperatur
-40 °C...80 °C

Environmental Product Compliance

RoHS-kompatibilitetsstatus
Compliant
REACH SVHC
Lead 7439-92-1
SCIP
67cf1078-beca-4687-860b-dc475a6ec24a

Technical specifications for cable

Antal ledare
4
Antal poler
4
Böjcykler
2 Mio
Färkodning
white
yellow
blue
orange
Flamhärdighet
Yes
Halogener
halogen-free, according to IEC 60754
Isolering
Polyolefin
Mantelfärg
black
Mantelmaterial
PUR
Oljebeständighet
in accordance with IEC 60811:404
Provspänning ledare-ledare-skärm
1 kV DC, 1 min
1000 Veff, 50 Hz, 1 min
Skärmad
Yes
Släpkedjetålighet
No
Temperaturområde, fast lagd
-40...80 °C
Temperaturområde, rörligt
-30...70 °C

General technical data

Skyddsklass
IP67

Plug, left

Stickkontakt vänster
M8, P-coded, IP67, male contact, angled 90°, plug, Plastic, shielded

Plug, right

Stickkontakt höger
M8, P-coded, IP67, female contact, angled 90°, plug, Plastic, shielded

Besorolások

ETIM 8.0
EC002599
ETIM 9.0
EC002599
ETIM 10.0
EC002599
ECLASS 14.0
27-06-03-08
ECLASS 15.0
27-06-03-08
