Eigenschappen

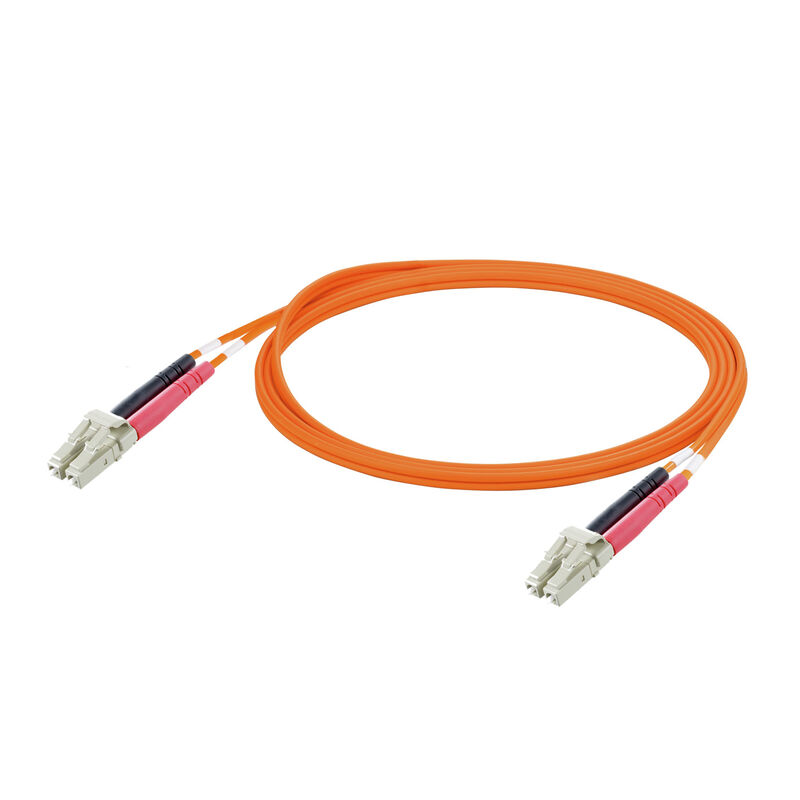

| Version | Pre-assembled patch cable, crossover, LC-Duplex IP 20, LC-Duplex IP 20, 50 µm, PVC, 2 m |
| Order No. | 1062570000 |
| Type | IE-FM5Z2VO0002MLD0LD0X |
| GTIN (EAN) | 4032248813247 |
| Qty. | 1 items |
| Length | 2 m |
| Length (inches) | 78,74 inch |
| Net weight | 37 g |
| Storage temperature | -25 °C...75 °C |
| Operating temperature | -5 °C...75 |
| Installation temperature | -5 °C...50 °C |
| RoHS Compliance Status | Compliant |
| REACH SVHC | Lead 7439-92-1 |
| Connector standard | IEC 61754-20 |
| Connector standard | IEC 61754-20 |
| Attenuation |
≤ 2.7 dB/km at 850 nm
≤ 0.7 dB/km at 1300 nm |
| Bandwidth |
≥ 600 MHz*km at 850 nm
≥ 1200 MHz*km at 1300 nm |
| Fibre type |
GOF
Multimode OM2 |
| Cable layout | ZIPCORD |
| Core diameter | 50 µm |
| Material sheath | PVC |
| Primary coating | 245 µm |
| Sheath diameter | 3*6 mm |
| Sheathing colour | orange |
| Standard designations | I-V(ZN)Y |
| Min. bending radius, once only | 30 mm |
| Min. bending radius, repetitive | 60 mm |
| Plug left | LC-Duplex, IP20, male contact, straight, plug, Plastic, unshielded |
| Plug right | LC-Duplex, IP20, male contact, straight, plug, Plastic, unshielded |
| Plug left | LC-Duplex, IP20, male contact, straight, plug, Plastic, unshielded |
| Plug right | LC-Duplex, IP20, male contact, straight, plug, Plastic, unshielded |
| User Documentation |
[MAN IE GUIDE DE](https://mdcop.weidmueller.com/mediadelivery/asset/900_40065)
[MAN IE GUIDE EN](https://mdcop.weidmueller.com/mediadelivery/asset/900_40066) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| Brochures |
[FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293)
[PI PROFINET CABLING EN](http://download.weidmueller.com/asset/download/file/38183) [PI PROFINET CABLING EN](http://download.weidmueller.com/asset/download/file/38183) |
| ETIM 6.0 | EC002607 |
| ETIM 7.0 | EC002607 |
| ETIM 8.0 | EC002607 |
| ETIM 9.0 | EC002607 |
| ECLASS 9.0 | 27-06-10-03 |
| ECLASS 9.1 | 27-06-10-03 |
| ECLASS 10.0 | 27-06-10-03 |
| ECLASS 11.0 | 27-06-10-03 |
| ECLASS 12.0 | 27-06-10-03 |
| ECLASS 13.0 | 27-06-10-03 |
| ECLASS 14.0 | 27-06-10-03 |
| ROHS | Conform |
