IE-OM-V05M-K21-2S
IE-OM-V05M-K21-2S

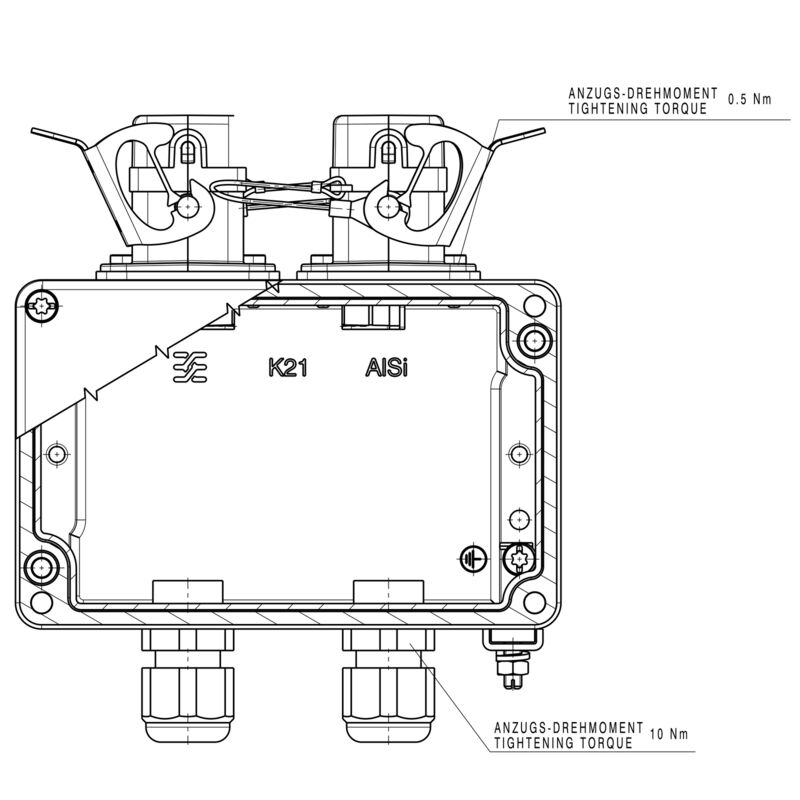

Dimensioned drawing
IE-OM-V05M-K21-2S
Drawing

IE-OM-V05M-K21-2S

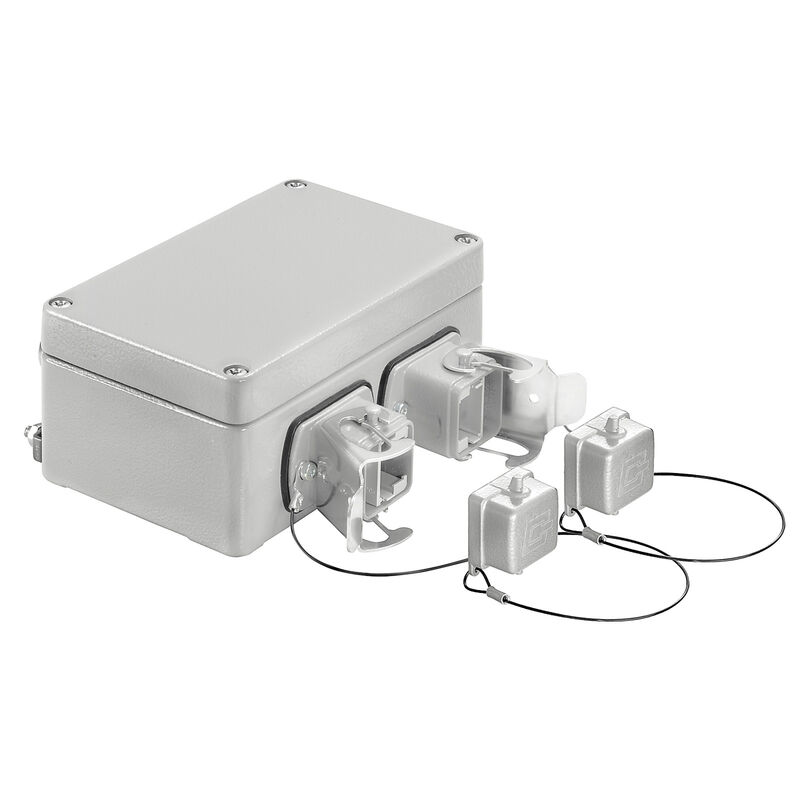

Junction box, IP67, Variant 5, 2 ports, straight

Ürün No. 1966290000
Veri sayfasını indir Engineering Support Product Downloads
Aksesuarlar 6 İlgili ürünler 1
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance General data Standard generali Classifications

Approvals

ROHS
Conform

General ordering data

Version
Junction box, IP67, Variant 5, 2 ports, straight
Číslo objednávky
1966290000
Type
IE-OM-V05M-K21-2S
GTIN (EAN)
4032248658480
Qty.
1 adet

Dimensions and weights

Depth
57 mm
Depth (inches)
2,244 inch
Width
136 mm
Width (inches)
5,354 inch
Length
125 mm
Length (inches)
4,921 inch
Net weight
643 g

Temperatures

Provozní teplota
-40 °C...70 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
Výjimka ze směrnice RoHS (je-li použitelné/známo)
6c
REACH SVHC
Lead 7439-92-1
Potassium perfluorobutane sulfonate 29420-49-3
SCIP
3767b26f-703a-492e-9234-36e83d1c0725

General data

Colour
gris
Housing main material
AL-Si 12
Plugging cycles
750
Protection degree
IP67
Type of mounting
Floor-mounted
Wall mounting

Standard generali

Connector standard
IEC 61076-3-106 Var. 5

Classifications

ETIM 8.0
EC002597
ETIM 9.0
EC002597
ETIM 10.0
EC002597
ECLASS 14.0
27-44-03-18
ECLASS 15.0
27-44-03-18
