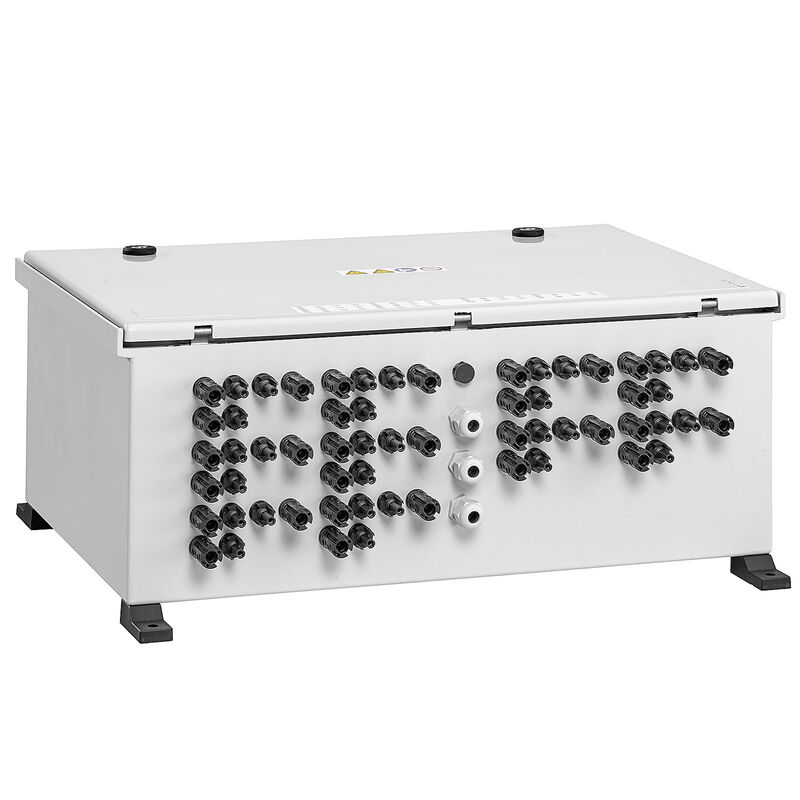

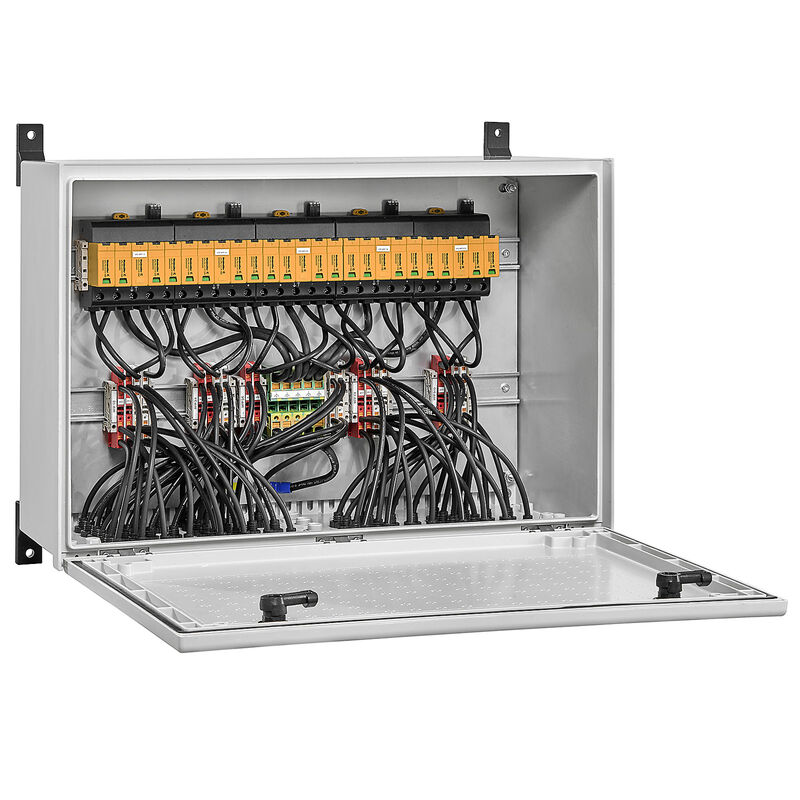

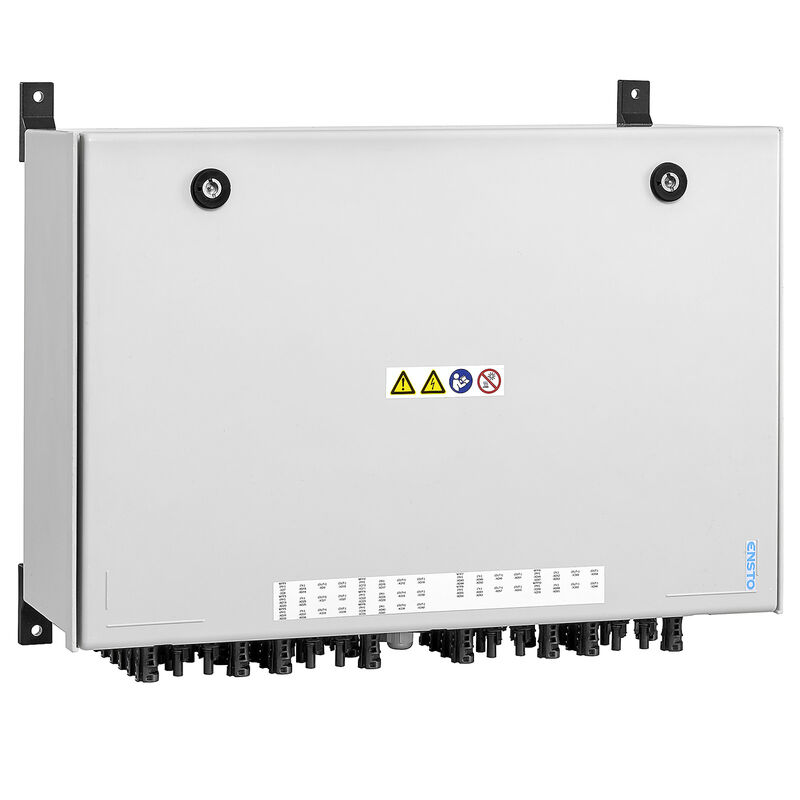

Photovoltaics, Combiner Box, PV Next, 1100 V, 10 MPP's, 2 Inputs / 1 Output per MPP, Surge protection I / II, MC4-Evo 2

Ürün No. 8000106274
Veri sayfasını indir Product Downloads Engineering Support
Aksesuarlar 9 aksesuarıdır 3 Yedek parçalar 2 İlgili ürünler 55
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Included in delivery Guarantee Electrical characteristics Enclosure General data Inputs Outputs Surge protection DC side DC load break switch Important note Classifications Tender specification sheets

Approvals

Approvals
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319222/-S800/-T1z1mm-S80)
ROHS
Conform

General ordering data

Version
Photovoltaics, Combiner Box, PV Next, 1100 V, 10 MPP's, 2 Inputs / 1 Output per MPP, Surge protection I / II, MC4-Evo 2
Order No.
8000106274
Type
PVC DC 2I 1O 10MPP SPD1R EVO 11
GTIN (EAN)
4099986665354
Qty.
1 adet

Dimensions and weights

Depth
248,9 mm
Depth (inches)
9,799 inch
Height
469,5 mm
Height (inches)
18,484 inch
Width
600 mm
Width (inches)
23,622 inch
Net weight
17.500 g

Temperatures

Ambient temperature
-20 °C…50 °C
Humidity
5 - 90 %, no condensation

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
7a, 7cI
REACH SVHC
Lead 7439-92-1
SCIP
bdab5698-6a20-4370-8e28-8810d882d01a

Included in delivery

Included accessories
  • Article:
    Mounting foot
  • Quantity:
    4
  • Article:
    Dustcap VSSO
  • Quantity:
    20
  • Article:
    Sealing plug
  • Quantity:
    3

Guarantee

Time interval
5 years

Electrical characteristics

Current per Maximum Power Point, max.
41 A
Rated DC current per connection
  • Current per string, max.:
    41 A
Rated DC voltage
1.100 V
Rated short-term current resistance
  • Rated current:
    51,25 A

Enclosure

Connection type string
Plug MC4-Evo 2
Enclosure attachment
Via mounting foots
Impact resistance
IK10 in accordance with IEC 62262
Insulating material
Polyester glass-fibre reinforced, Polycarbonate
Protection class
II
Type of mounting
4 screws
Fixing lugs

General data

Installation location
Protected outdoor area (>1 km from sea)
Protection degree
IP65
Standards
EN 61643-31

Inputs

Functional earth connector
  • Cable entry:
    • Number of cable entries:
      2
  • Wire connection:
    • Type of connection:
      PUSH IN with actuator
    • Flexible, max. H05(07) V-K:
      25 mm²
    • w. wire end ferrule, DIN 46228 pt 1, max.:
      16 mm²
Fuses
No
Liczba wpustów kablowych
20
Max. number of DC inputs
per Maximum Power Point 2 inputs connected in parallel
Number of string inputs per MPP
≤ 2
Surge protection auxiliary contact
  • Cable entry:
    • Number of cable entries:
      1
  • Wire connection:
    • Type of connection:
      Tension clamp connection with actuator
    • Flexible, max. H05(07) V-K:
      1,5 mm²
    • w. wire end ferrule, DIN 46228 pt 1, max.:
      1,5 mm²
Säkringstyp
Neither fuse cartridge nor holder
Вход пост. тока + и -
  • Wire connection:
    • Type of connection:
      Stäubli MC4-Evo 2 connector
    • Compatible cable crossection:
      TÜV 2 Pfg1169/08.07
    • Wire cross-section, min.:
      2,5 mm²
    • Wire cross-section, max.:
      16 mm²
  • Cable entry:
    • Number of cable entries:
      20
최대 전력점 수 (MPP)
10
Number of inputs
20

Outputs

DC 출력 + &
  • Wire connection:
    • Type of connection:
      Stäubli MC4-Evo 2 connector
    • Compatible cable crossection:
      TÜV 2 Pfg1169/08.07
    • Wire cross-section, min.:
      2,5 mm²
    • Wire cross-section, max.:
      16 mm²
Numero massimo di uscite DC
per Maximum Power Point 1 output

Surge protection DC side

Discharge current In (8/20 µs)
20 kA
Lightning test current Iimp (10/350 µs)
5 kA
Niveau de protection Up (+/PE)
≤ 3.8 kV
Nivel de protección Up (+/-)
≤ 3.8 kV
Protection level Up (+/- , -/PE , +/PE)
≤ 3.8 kV
Protection level Up (-/PE)
≤ 3.8 kV
PV 시스템 전압, 최대 Ucpv
1.100 V
Short-circuit curent ISCPV
11.000 A
Standards
EN 61643-31
Standby power consumption PC
<0.2 W
Total discharge current Itotal ( 8/20µs)
50 kA
Total discharge current Itotal (10/350µs)
10 kA
Třída požadavků
Type I/II
Максимальное постоянное рабочее напряжение, режим DC UCPV +/- , -/PE , +/PE
1.100 V

DC load break switch

Switch disconnector execution
no switch
Voltage type
DC

Important note

Product information
The SCIP number was assigned due to a lead content of more than 0.1 % of the net weight.

Safe use instruction according to ECHA:
The identification of the hazardous substance is sufficient to allow safe use of the article throughout its life cycle, including the service life, disassembly and waste/recycling phase

Classifications

ETIM 8.0
EC003857
ETIM 9.0
EC003857
ETIM 10.0
EC003857
ECLASS 14.0
22-57-02-92
ECLASS 15.0
22-57-02-92

Tender specification sheets

Long specification

Combiner box for inverters with 10 MPP tracker, suitable for protecting the DC side of a photovoltaic system according to EN 51543-32.

MPP1:
2 inputs, connection via MC4-Evo 2 connector, compatible with cable type TÜV 2 Pfg1169/08.07 / EN 50618:2063
1 output, connection via MC4-Evo 2 connector, compatible with cable type TÜV 2 Pfg1169/08.07 / EN 50618:2063

MPP2 to 10:
identical to MPP1

Max. string voltage Uoc: 1100V
1 class/type I + II combined arrester with signal contact
Connection of the signal contact via cable glands (8-12mmØ) max. conductor cross-section: 1.5mm²
Connection of the functional earth via cable glands (8-12mmØ) Conductor cross-section: 16-25mm²
Protection class: IP65
All built into a glas fibre reinforced polyester housing. Dimensions HxWxD: 469.5x600x248.9 mm

Approval according to low voltage switchgear and controlgear IEC 61439-1:2011 and EN 61439-2:2011
