SAIL-M12WM12G-3-6.8U
SAIL-M12WM12G-3-6.8U
Dimensioned drawing
Male, angled
SAIL-M12WM12G-3-6.8U
Dimensioned drawing
Straight socket
SAIL-M12WM12G-3-6.8U
Pole scheme
Male
SAIL-M12WM12G-3-6.8U
Pole scheme
Socket
SAIL-M12WM12G-3-6.8U
Wiring diagram
Schaltbild

SAIL-M12WM12G-3-6.8U

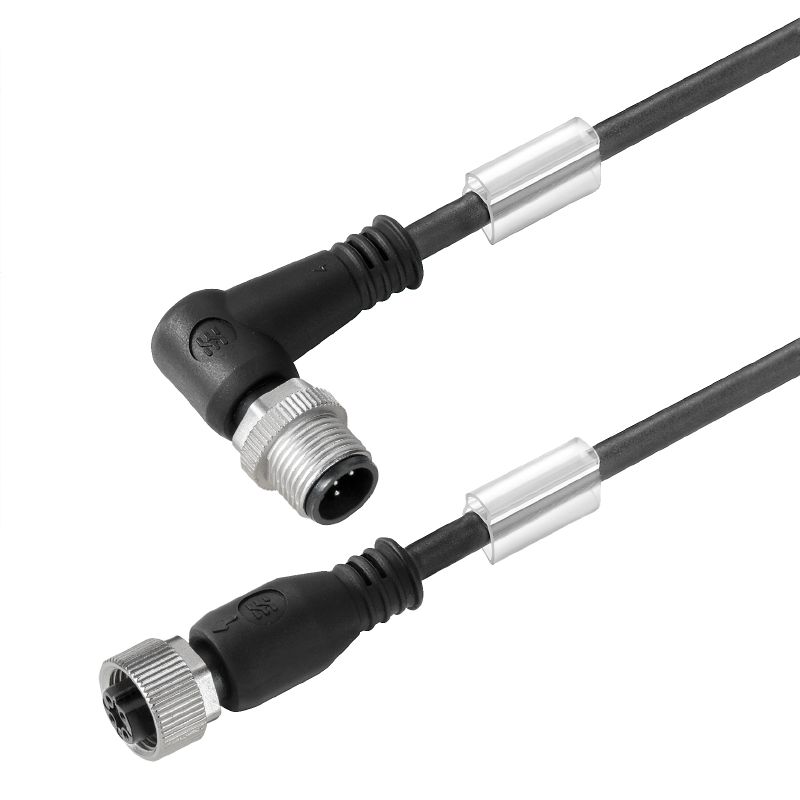

Sensor/actuator line, Connecting line, M12 / M12, Number of poles : 3, 6.8 m, pin, straight - socket, straight, Shielded: No, LED: No, Sheath material: PUR, Halogen: No

Ürün No. 1821050680
Veri sayfasını indir Engineering Support Product Downloads
İlgili ürünler 10
Approvals General ordering data Dimensions and weights Environmental Product Compliance Technical specifications for cable General technical data Electrical properties Standards Plug, left Plug, right Product images Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/5855f480-81e6-48e1-aa53-1e87419df7ba/DAP_Master_ICON,w_80,q_80)
ROHS
Conform

General ordering data

Version
Sensor/actuator line, Connecting line, M12 / M12, Number of poles : 3, 6.8 m, pin, straight - socket, straight, Shielded: No, LED: No, Sheath material: PUR, Halogen: No
Order No.
1821050680
Type
SAIL-M12WM12G-3-6.8U
GTIN (EAN)
4050118626575
Qty.
1 adet

Dimensions and weights

Diameter
3,8 mm
Net weight
300 g

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
6c
REACH SVHC
Lead 7439-92-1
SCIP
1c533b66-fcff-4da5-b89f-fd55fbf5cb55

Technical specifications for cable

PP
Acceleration
5 m/s²
Bending cycles
12 Mio
Bending radius, min., moving
10 x cable diameter
Bending radius, min., stationary
5 x cable diameter
Böjningscykler vid vridning
> 5 Mio.
Cable length
6,8 m
Codifica a colori
brown
blue
black
Configurable cable length
Yes
Core cross-section
0,34 mm²
Halogen
No
Hegesztési szikrákkal szembeni ellenállás
No
Keresztkötéses irradiáció
No
Külső bevonat az UL AWM stílusnak megfelelően
20549 (80 °C / 300 V)
LABS-free
Yes
Number of poles
3
Outside diameter
3.8 mm ± 0.15 mm
Resistance to oils
Yes
Resistance to spread of flame
In accordance with UL1581 UL / CUL FT2
in accordance with IEC 60332-2-2
Résistant à l'hydrolyse et aux microbes
Yes
Sheath material
PUR
Sheath material hygroscopic
Yes
Sheathing colour
black
Shielded
No
Speed
3,33 m/s
Suitable for cable carriers
Yes
Temperaturområde, rörligt
-25...60 °C
Vridningslängd
1 m
Zakres temperatur, stały
-50...80 °C
Ér, az UL AWM stílusnak megfelelően
10493 (80 °C / 300 V)
Устойчивые к каплям сварочного металла
No
비틀림 저항
180 °/m

General technical data

Connection thread
M12 / M12
Contact surface
Gold-plated
Housing main material
PUR
Insulation resistance
108 Ω
LED
No
Nominal current
4 A
Nominal voltage
250 V
Plugging cycles
≥ 100
Pollution severity
3
Protection degree
IP65
IP66
IP67
IP68
when screwed in
IP69
Shock and vibration proof according to
Section B
Temperature range of housing
-25…+85 °C
Threaded ring material
Diecast zinc
Version
pin, straight - socket, straight

Electrical properties

Insulation resistance
108 Ω
Nominal voltage
250 V

Standards

Shock and vibration proof according to
Section B

Plug, left

Plug left
M12, A-coded, IP69, male contact, angled 90°, Plastic, unshielded

Plug, right

Plug right
M12, A-coded, IP69, female contact, straight, Plastic, unshielded

Product images

Classifications

ETIM 8.0
EC001855
ETIM 9.0
EC001855
ETIM 10.0
EC001855
ECLASS 14.0
27-06-03-11
ECLASS 15.0
27-06-03-11
