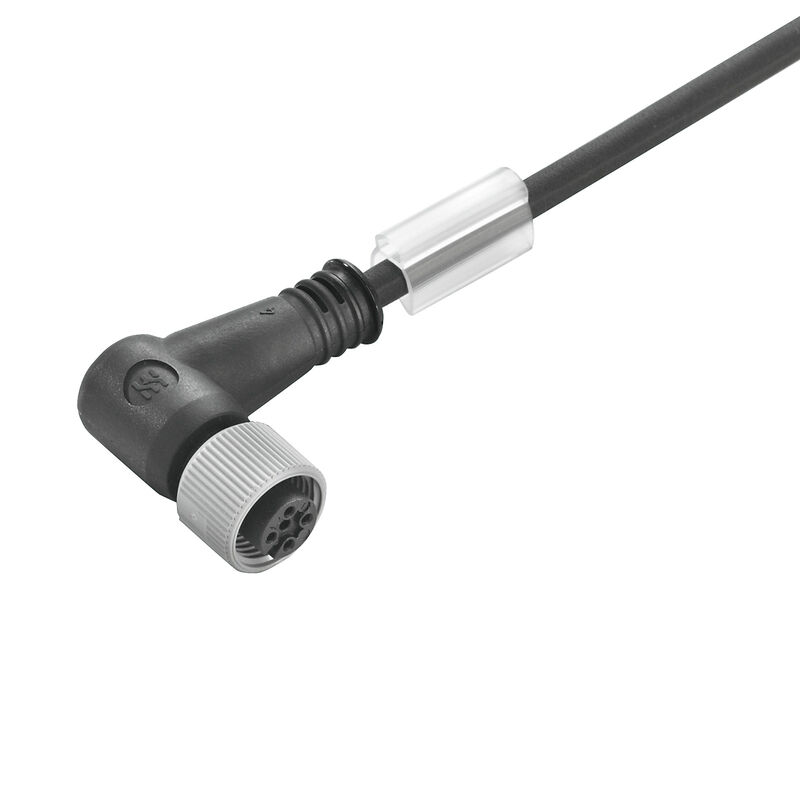

Sensor/actuator line, One end without connector, M12, Number of poles : 3, 0.1 m, Socket, angled, Shielded: No, LED: No, Sheath material: PUR, Halogen: No

Produkt ID 1108770010
Download datablad Engineering-support Produktdownloads
Tilbehør 6 Anvendte produkter 5
Approvals General ordering data Dimensions and weights Environmental Product Compliance Technical specifications for cable General technical data Electrical properties General standards Standards Plug, left Plug, right Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/0d1637a4-c7dd-4915-8bc8-4c9de8d8b393/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/5855f480-81e6-48e1-aa53-1e87419df7ba/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate no. (cULus)
E307231

General ordering data

版本
Sensor/actuator line, One end without connector, M12, Number of poles : 3, 0.1 m, Socket, angled, Shielded: No, LED: No, Sheath material: PUR, Halogen: No
Order No.
1108770010
Type
SAIP-M12BW-3-0.1U
GTIN (EAN)
4032248919512
Qty.
1 Styk
Delivery status
This article will no longer be available in the future.
Last order date
/Date(1790719200000)/
Alternative product
[1108770150](~/p/1108770150)

Dimensions and weights

Diameter
3,8 mm
Net weight
10,56 g

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
6c
REACH SVHC
Lead 7439-92-1
SCIP
1c533b66-fcff-4da5-b89f-fd55fbf5cb55

Technical specifications for cable

Bending cycles
12 Mio
Cable length
0,1 m
Cicli di flessione a torsione
> 5 Mio.
Codage couleur
brown
blue
black
Core cross-section
0,34 mm²
Csavarási ellenállás
180 °/m
Funda de conformidad con el estilo UL AWM
20549 (80 °C / 300 V)
Geschwindigkeit
3,33 m/s
Halogen
No
Irradiation crosslinked
No
Izolace
PP
Konfigurierbare Kabellänge
No
LABS-free
Yes
Mantelmaterial
PUR
Núcleo de conformidad con el estilo UL AWM
10493 (80 °C / 300 V)
Outside diameter
3.8 mm ± 0.15 mm
Poloměr ohybu, min., pohyblivý
10 x cable diameter
Poloměr ohybu, min., stacionární
5 x cable diameter
Počet vodičů
3
Resistance to oils
Да
Resistance to spread of flame
In accordance with UL1581 UL / CUL FT2
in accordance with IEC 60332-2-2
Resistente a hidrólisis y microbios
Yes
Resistente alle perle di saldatura
No
Résistance de soudage
No
Sheathing colour
black
Stíněný
No
Suitable for cable carriers
Yes
Temperature range, stationary
-50...80 °C
Zrychlení
5 m/s²
ねじれ長
1 m
吸湿性シース材質
Yes
温度範囲、移動
-25...60 °C
폴 수
3

General technical data

Coding
A-coded
Connection thread
M12
Contact surface
Gold-plated
Housing main material
PUR
Insulation resistance
108 Ω
jumpered
No
LED
No
Nominal current
4 A
Nominal voltage
250 V
Plugging cycles
≥ 100
Pollution severity
3
Protection degree
IP65
IP66
IP67
IP68
Vissé
Temperature range of housing
-25…+85 °C
Threaded ring material
Plastic
Tightening torque
M12 (plastic nut): 0.6 - 0.8 Nm
Version
Socket, angled

Electrical properties

Napięcie znamionowe
250 V
Opór izolacji
108 Ω

General standards

Certificate no. (cULus)
E307231
Connector standard
IEC 61076-2-101

Standards

Connector standard
IEC 61076-2-101

Plug, left

Plug left
M12, A-coded, IP69, female contact, angled 90°, Plastic, unshielded

Plug, right

Plug right
free conductor end

Classifications

ETIM 8.0
EC001855
ETIM 9.0
EC001855
ETIM 10.0
EC001855
ECLASS 14.0
27-06-03-11
ECLASS 15.0
27-06-03-11
