SM-DT-H 27/27 BL
SM-DT-H 27/27 BL

SM-DT-H 27/27 BL

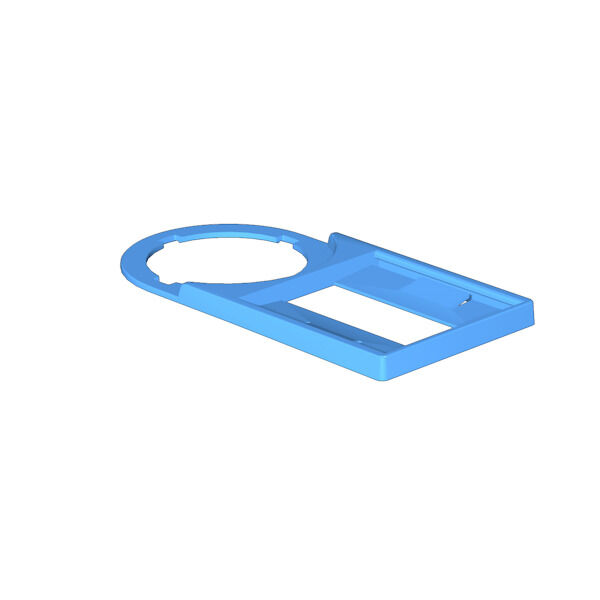

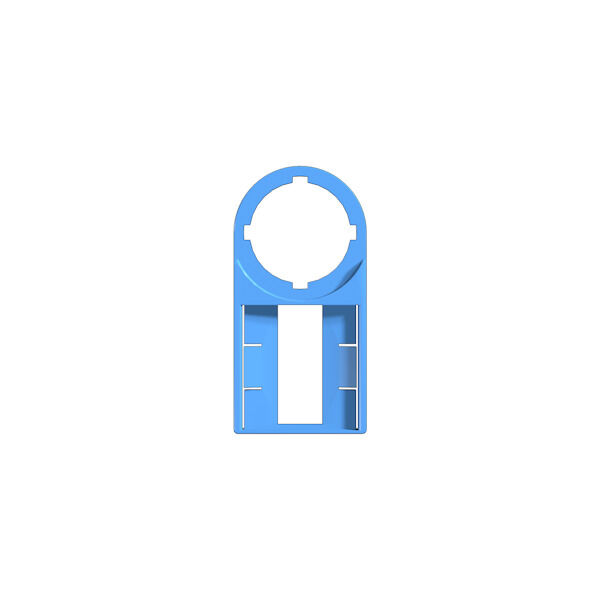

SwitchMark, Zubehör, 59 x 27 mm, blau

Tuotteen tunnus 2737800000
Lataa tietosivu Product Downloads
On lisävaruste 2 Samankaltaiset tuotteet 6
Approvals Allgemeine Bestelldaten Dimensions and weights Temperaturas Umweltanforderungen General data Device markers Classifications

Approvals

ROHS
Conform

Allgemeine Bestelldaten

Version
SwitchMark, Zubehör, 59 x 27 mm, blau
Order No.
2737800000
Type
SM-DT-H 27/27 BL
GTIN (EAN)
4064675210238
Cantidad
10 Pieza

Dimensions and weights

Depth
3,3 mm
Depth (inches)
0,13 inch
Height
59 mm
Height (inches)
2,323 inch
Width
27 mm
Width (inches)
1,063 inch
Peso neto
1,435 g

Temperaturas

Operating temperature range
-40...100 °C

Umweltanforderungen

RoHS Compliance Status
Konform ohne Ausnahme
REACH SVHC
No SVHC above 0.1 wt%
Huella de carbono del producto
  • Desde la cuna hasta la puerta:
    0.015 kg CO2 eq.

General data

Basic material
Polyamide 66
Colour
blue
Detectible in accordance with Rondotest
4.7 mm Al
Halogen
No
Number of markers per combination
1 MultiCard = Accessories
Number of markers per packaging unit
  • Form of supply:
    MultiCard
Operating temperature range
-40...100 °C
Operating temperature range, max.
100 °C
Operating temperature range, min.
−40 °C
Recommended industries
Food processing industry
UL 94 flammability rating
HB
Version
Marker holder
Width
27 mm

Device markers

Halogen
No

Classifications

ETIM 8.0
EC001288
ETIM 9.0
EC001288
ETIM 10.0
EC001288
ECLASS 14.0
27-28-11-04
ECLASS 15.0
27-28-11-04
