Özellikler

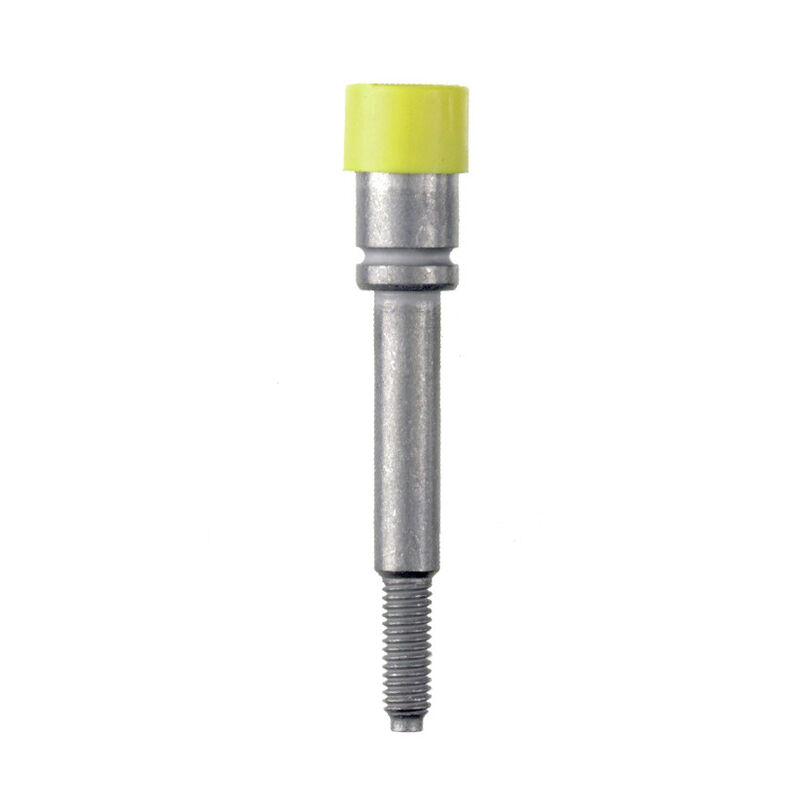

| Version | Socket (terminal), Plug-in depth: 8 mm, Depth: 37.5 mm |
| Order No. | 0389000000 |
| Type | STB 35 IH/GE |
| GTIN (EAN) | 4008190396985 |
| Qty. | 50 adet |
| Depth | 37,5 mm |
| Depth (inches) | 1,476 inch |
| Width | 7,2 mm |
| Width (inches) | 0,283 inch |
| Net weight | 2,38 g |
| Storage temperature | -25 °C...55 °C |
| Continuous operating temp., min. | -50 °C |
| Continuous operating temp., max. | 100 °C |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | dce63e23-eea1-4eaa-9071-1c98fc8fa2ea |
| Material | PA 66 |
| Colour | yellow |
| UL 94 flammability rating | V-2 |
| Version | For the mounting rails |
| Explosion-tested version | No |
| Type of fixing | when screwed in |
| Type of mounting | when screwed in |
| Plug-in depth | 8 mm |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_59107) |
| Engineering Data | [Zuken E3.S](LINK/CAE_EN.html) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.0389000000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=0389000000) |
| WSCAD Universe | [WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=0389000000&norm=0) |
| User Documentation | [StorageConditionsTerminalBlocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_87149) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC002848 |
| ETIM 7.0 | EC002848 |
| ETIM 8.0 | EC002848 |
| ETIM 9.0 | EC002848 |
| ECLASS 9.0 | 27-14-11-92 |
| ECLASS 9.1 | 27-14-11-92 |
| ECLASS 10.0 | 27-14-11-92 |
| ECLASS 11.0 | 27-14-11-92 |
| ECLASS 12.0 | 27-14-11-92 |
| ECLASS 13.0 | 27-25-03-90 |
| ROHS | Conform |
