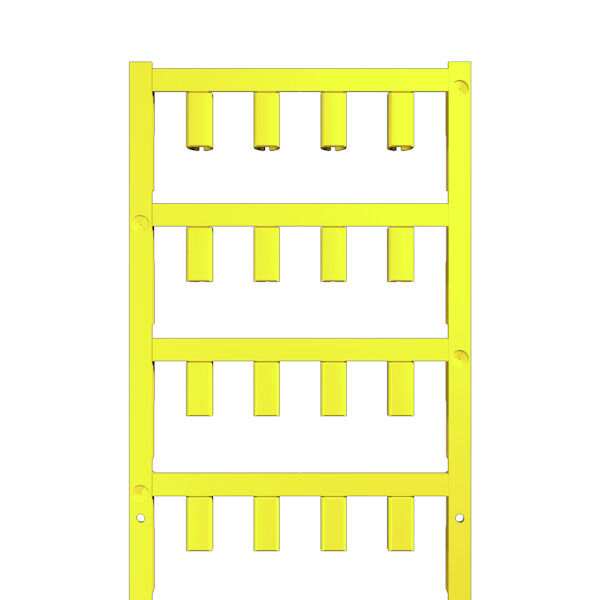

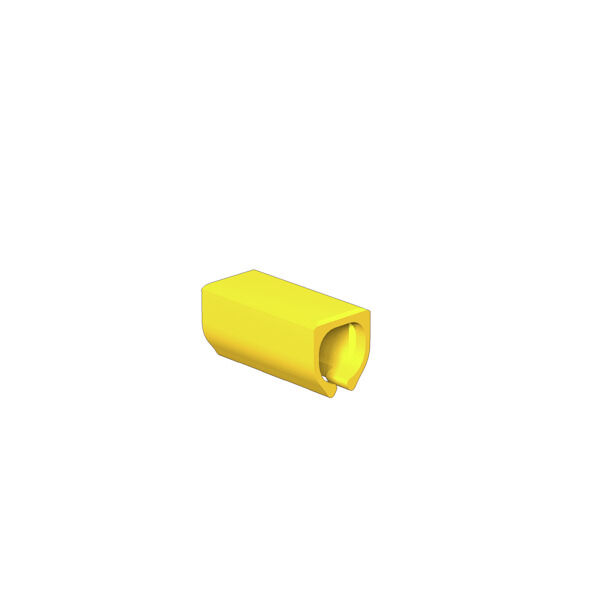

SlimFix, Conductor and cable markers, 3.6 - 6 mm, 12 x 5.7 mm, yellow

Product ID 1746030004
Gegevensblad downloaden Engineering Support Product Downloads
Verwante producten 7
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance General data Conductor and cable markers Classifications

Approvals

ROHS
Conform

General ordering data

Változat
SlimFix, Conductor and cable markers, 3.6 - 6 mm, 12 x 5.7 mm, yellow
Rendelési szám
1746030004
Tipo
VT SF 4/12 MC NE GE V0
GTIN(EAN)
4008190986384
Qty.
192 items

Dimensions and weights

Mélység
6,1 mm
Depth (inches)
0,24 inch
Posizione verticale
12 mm
Height (inches)
0,472 inch
Larghezza
5,7 mm
Width (inches)
0,224 inch
Net weight
0,37 g

Temperatures

Campo delle temperature di impiego
-50...120 °C

Environmental Product Compliance

Состояние соответствия RoHS
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%
Product Carbon Footprint
  • Cradle to gate:
    0.004 kg CO2 eq.

General data

Basic material
Polyamide 66
Colour
yellow
compatible printer
[PRINTJET CONNECT](~/p/2715590000)
Halogen
No
Material colour according to resistance code
4
Number of markers per combination
1 MultiCard = Conductor and cable markers
Number of markers per packaging unit
  • Form of supply:
    MultiCard
Operating temperature range
-50...120 °C
Operating temperature range, max.
120 °C
Operating temperature range, min.
-50 °C
Recommended industries
Transportation
Machinery
Size of labelling field
12 x 5.7 mm
Type of printing
neutral
UL 94 flammability rating
V-0
Width
5,7 mm

Conductor and cable markers

Conductor O.D.
3.6 - 6 mm
Conductor O.D., min.
3,6 mm
Cross-section for connected wire
2.5 - 4 mm²
Ledarytterdiameter, max.
6 mm
Галогены
No
Поперечное сечение соединительного провода, макс.
4 mm²
Поперечное сечение соединительного провода, мин.
2,5 mm²

Classifications

ETIM 8.0
EC001530
ETIM 9.0
EC001530
ETIM 10.0
EC001530
ECLASS 14.0
27-28-11-02
ECLASS 15.0
27-28-11-02
