WK K PZ2

WK K PZ2

Bu ürün artık mevcut değil.

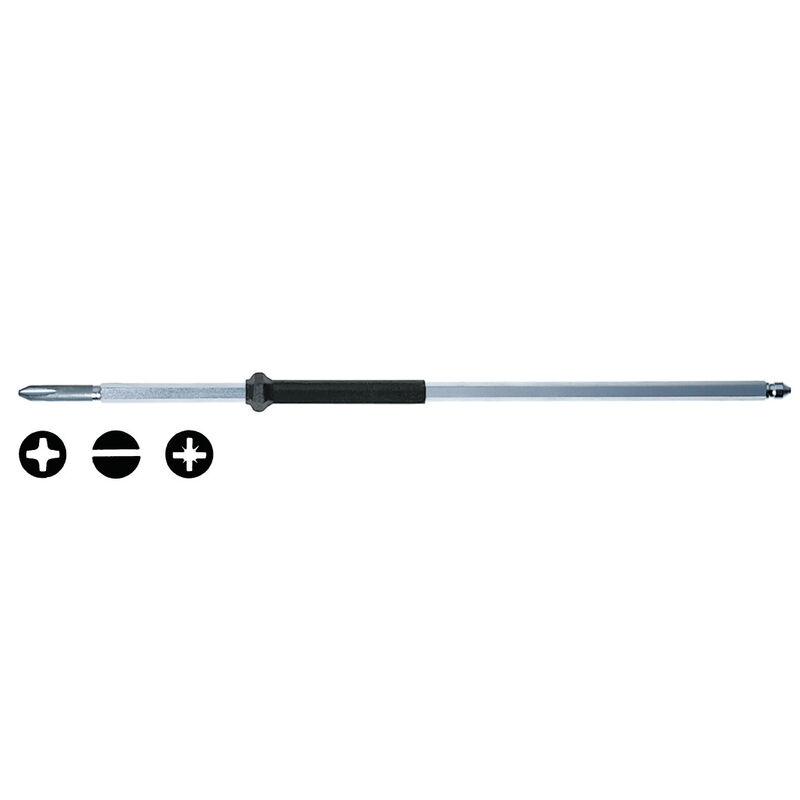

Screwdriver insert

Ürün No. 9918620000
Veri sayfasını indir
Aksesuarlar 2 aksesuarıdır 2 İlgili ürünler 1
General ordering data Dimensions and weights Conformidad medioambiental del producto Technical data Screwing tools 분류

General ordering data

Version
Screwdriver insert
Order No.
9918620000
Type
WK K PZ2
GTIN (EAN)
4032248388998
Qty.
1 items
Статус поставки
Эта артикул в перспективе будет недоступен.
Sista orderdatum
09.09.2025

Dimensions and weights

Depth
4 mm
Profondeur (pouces)
0,157 inch
Height
4 mm
높이 (인치)
0,157 inch
Width
175 mm
Width (inches)
6,89 inch
Net weight
20 g

Conformidad medioambiental del producto

RoHS Compliance Status
Not affected
REACH SVHC
Lead 7439-92-1
SCIP
6a3438d7-aa8c-48e4-8879-adf736ca79e3

Technical data

Description of article
Interchangeable bit for crosshead screws, Pozidrive, size 2

Screwing tools

175 mm
Blade size, crosshead
2
Blade thickness (A)
2 mm
Blade width (B)
2 mm
Form
Pozidrive
Size
2
Torque setting, max.
5,5 Nm

분류

ETIM 8.0
EC003864
ETIM 9.0
EC003864
ETIM 10.0
EC003864
ECLASS 14.0
21-04-42-03
ECLASS 15.0
21-04-42-03
