HDC HE 16 FP
HDC HE 16 FP
HDC HE 16 FP

HDC HE 16 FP

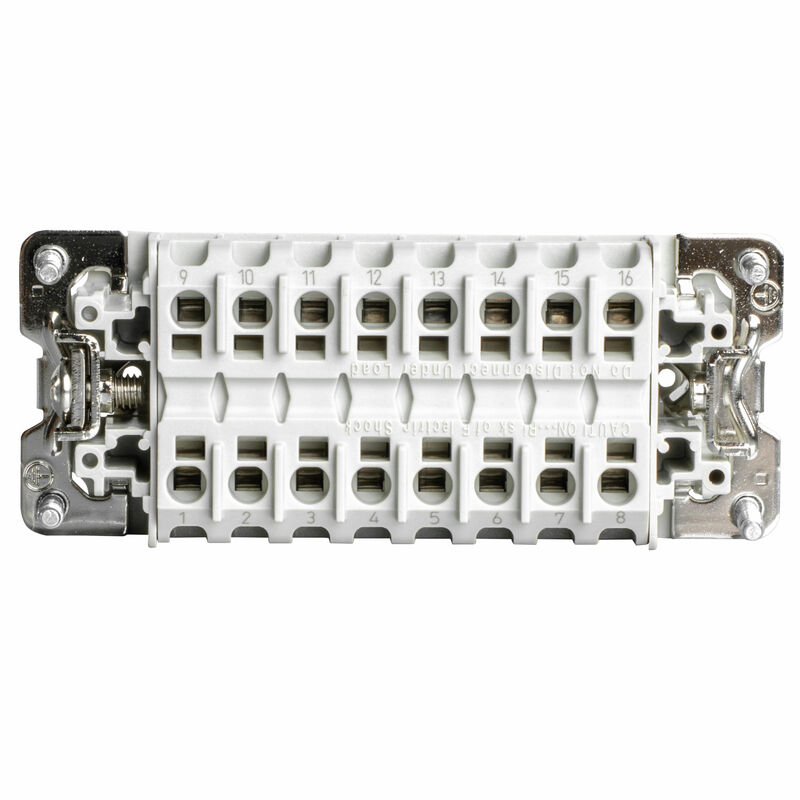

HDC insert, Female, 500 V, 16 A, Number of poles: 16, PUSH IN, Installation size: 6

Tuotteen tunnus 1873560000
Lataa tietosivu Engineering Support Product Downloads
Lisävarusteet 4 On lisävaruste 7 Yksittäinen osa tuotteelle 4 Samankaltaiset tuotteet 2
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Dimensions General data Rating data IECEx/ATEX Connection data PE Version Classifications

Approvals

Approvals
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319222/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319226/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319230/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319234/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319240/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319213/-S800/-T1z1mm-S80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (cURus)
E310075

General ordering data

Version
HDC insert, Female, 500 V, 16 A, Number of poles: 16, PUSH IN, Installation size: 6
Order No.
1873560000
Type
HDC HE 16 FP
GTIN (EAN)
4032248458172
Qty.
1 items

Dimensions and weights

Depth
84,5 mm
Depth (inches)
3,327 inch
Height
33,8 mm
Height (inches)
1,331 inch
Width
34 mm
Width (inches)
1,339 inch
Net weight
73,04 g

Temperatures

Limit temperature
-40 °C ... 125 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
6c
REACH SVHC
Lead 7439-92-1
Potassium perfluorobutane sulfonate 29420-49-3
SCIP
b67daa31-7dca-434d-8290-da7fb52f83a2
Chemical resistance
  • Substance:
    Acetone
  • Chemical resistance:
    Resistant
  • Substance:
    Ammonia, watery
  • Chemical resistance:
    Conditionally resistant
  • Substance:
    Petrol
  • Chemical resistance:
    Resistant
  • Substance:
    Benzene
  • Chemical resistance:
    Resistant
  • Substance:
    Diesel oil
  • Chemical resistance:
    Conditionally resistant
  • Substance:
    Acetic acid, concentrated
  • Chemical resistance:
    Resistant
  • Substance:
    Potassium hydroxide
  • Chemical resistance:
    Conditionally resistant
  • Substance:
    Methanol
  • Chemical resistance:
    Conditionally resistant
  • Substance:
    Motor oil
  • Chemical resistance:
    Conditionally resistant
  • Substance:
    Lye, diluted
  • Chemical resistance:
    Resistant
  • Substance:
    Hydrochlorofluorocarbons
  • Chemical resistance:
    Conditionally resistant
  • Substance:
    Outdoor use
  • Chemical resistance:
    Conditionally resistant

Dimensions

Height of socket
33,8 mm
Total length base
84,5 mm
Width
34 mm

General data

Basic material
Copper alloy
BG
6
Colour
beige
Corrente di dimensionamento (DIN EN 61984)
16 A
Installation size
6
Insulating material group
IIIa
Insulation resistance
1010 Ω
Isolierstoff
PC glass-fibre reinforced (UL-listed and railway-certified)
Number of poles
16
Number of power contacts
16
Number of signal contacts
0
Plugging cycles, gold
≥ 500
Plugging cycles, silver
≥ 500
Pollution severity
3
Prąd znamionowy (cUR)
  • Wire connection cross section AWG:
    AWG 12
  • Rated current:
    19 A
  • Wire connection cross section AWG:
    AWG 14
  • Rated current:
    16 A
  • Wire connection cross section AWG:
    AWG 16
  • Rated current:
    12,5 A
  • Wire connection cross section AWG:
    AWG 18
  • Rated current:
    9,8 A
  • Wire connection cross section AWG:
    AWG 20
  • Rated current:
    8 A
Rated voltage (DIN EN 61984)
500 V
Series
HE
Surface finish
Silver passivated
Tension de choc nominale (DIN EN 61984)
6 kV
Tensión nominal según UL/CSA
600 V AC/DC
Type
Female
Type of connection
PUSH IN
UL 94 flammability rating
V-0
Volume resistance
≤2 mΩ
Низкий уровень дымности по стандарту DIN EN 45545-2
Yes
정격 전류(UR)
  • Wire connection cross section AWG:
    AWG 12
  • Rated current:
    20 A
  • Wire connection cross section AWG:
    AWG 14
  • Rated current:
    15 A
  • Wire connection cross section AWG:
    AWG 16
  • Rated current:
    10 A
  • Wire connection cross section AWG:
    AWG 18
  • Rated current:
    7 A
  • Wire connection cross section AWG:
    AWG 20
  • Rated current:
    5 A

Rating data IECEx/ATEX

Certificate No. (ATEX)
TUEV24ATEX9197X
Certificate No. (IECEX)
IECEXTUR24.0077X
Current (ATEX)
3 A
Current (IECEX)
3 A
Max. voltage (ATEX)
250 V
Max. voltage (IECEX)
250 V
Wire cross section max. (ATEX)
4 mm²
Wire cross section max. (IECEX)
4 mm²

Connection data PE

Blade size, slotted (PE connection)
SD 0.8 x 4.0
Connection type PE
Screw connection
Fixing screw
M 4
Rated cross-section
4 mm²
Stripping length PE connection
10 mm
Tightening torque, max. PE connection
1,5 Nm
Tightening torque, min. PE connection
1,2 Nm
Wire cross section, AWG (PE), max.
AWG 12
Wire cross section, AWG (PE), min.
AWG 20

Version

Basic material
Copper alloy
BG
6
Blade size, slotted (screw connection)
SD 0.5 x 3.0
Conductor cross-section, max.
2,5 mm²
Conductor cross-section, min.
0,5 mm²
Installation size
6
Stripping length, rated connection
10 mm
Surface finish
Silver passivated
Type of connection
PUSH IN
Volume resistance
≤2 mΩ
Wire connection cross section, finely stranded, max.
2,5 mm²
Wire connection cross section, finely stranded, min.
0,5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.
2,5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.
0,5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
1,5 mm²
Wire cross-section, solid, max.
2,5 mm²
Wire cross-section, solid, min.
0,5 mm²

Classifications

ETIM 8.0
EC000438
ETIM 9.0
EC000438
ETIM 10.0
EC000438
ECLASS 14.0
27-44-02-05
ECLASS 15.0
27-44-02-05
