SAI-M23-SE-16-F

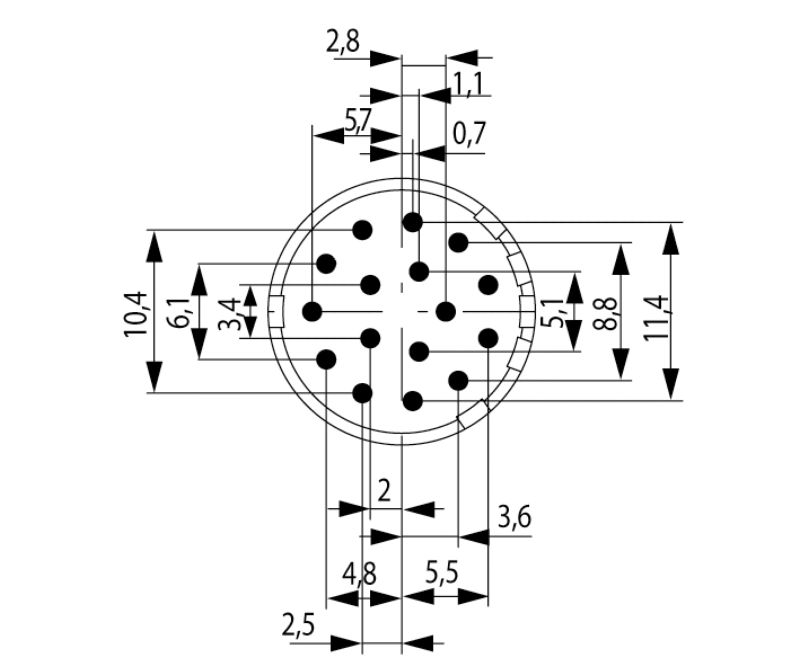

Dimensioned drawing
SAI-M23-SE-16-F
Pinning

SAI-M23-SE-16-F

Tämä tuote ei ole pian enää saatavana.

Viimeinen tilauspäivä: /Date(1798671600000)/

Sensor/Actuator plug-in connector

Tuotteen tunnus 1224240000
Lataa tietosivu Tekninen tuki
Samankaltaiset tuotteet 2
Сертификаты Allmänna beställningsdata Dimensions and weights Miljööverenstämmelse för produkt Technical data customisable plug-in connectors Classifications

Сертификаты

Approvals
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/70d4994d-1e1f-4a62-8b8a-96bcbd57aca3/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/5855f480-81e6-48e1-aa53-1e87419df7ba/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (UR)
E344862

Allmänna beställningsdata

Version
Sensor/Actuator plug-in connector
Order No.
1224240000
Type
SAI-M23-SE-16-F
GTIN (EAN)
4050118008203
Qty.
1 items

Dimensions and weights

Net weight
7,92 g

Miljööverenstämmelse för produkt

RoHS Compliance Status
Kompatibel med undantag
RoHS Exemption (if applicable/known)
6c
REACH SVHC
Lead 7439-92-1
SCIP
1c533b66-fcff-4da5-b89f-fd55fbf5cb55

Technical data customisable plug-in connectors

Coding
none
Connection cross-section, max.
1,5 mm²
Connection cross-section, min.
0,08 mm²
Contact material
Copper-Zinc alloy
Contact surface
vergoldet
Gender of contact
Male
Housing main material
Poliamida termoplástica PA 6, PBT
Nominal voltage
160 V
Number of poles
16
Plugging cycles
> 1000
Pollution severity
3
Type of connection
Uchwyty lutownicze

Classifications

ETIM 8.0
EC003557
ETIM 9.0
EC003557
ETIM 10.0
EC003557
ECLASS 14.0
27-44-02-23
ECLASS 15.0
27-44-02-23
