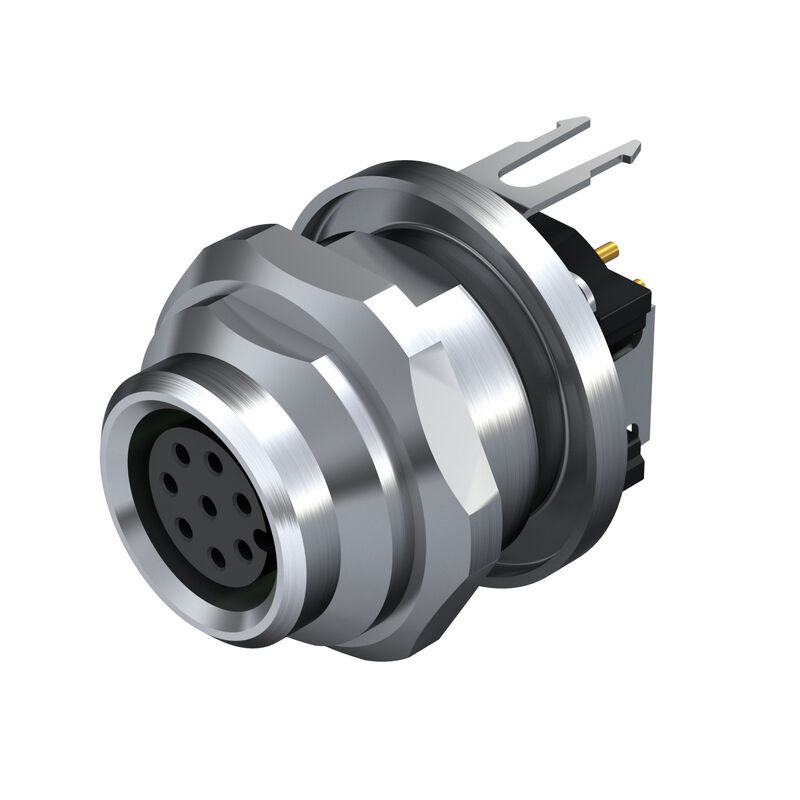

SAIE-M8B-8S-H6TL
SAIE-M8B-8S-H6TL

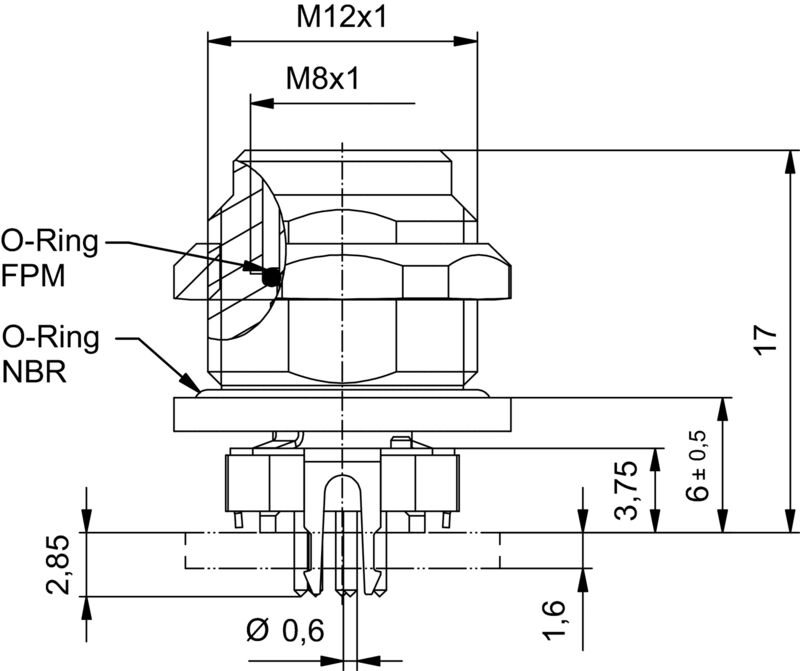

Dimensioned drawing
SAIE-M8B-8S-H6TL

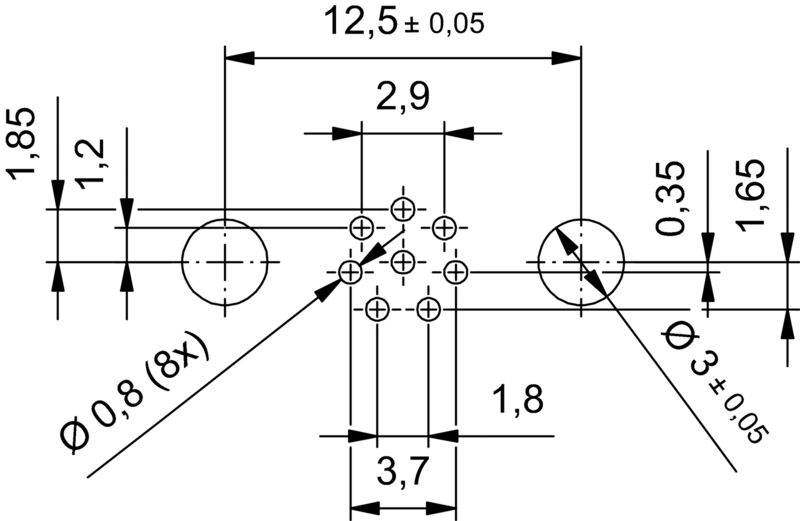

PCB design
SAIE-M8B-8S-H6TL
Pole scheme

SAIE-M8B-8S-H6TL

Built-in plugs, M8, Mounting thread: M 12, Number of poles: 8, Strand / cable length:

Product ID 2423400000
Gegevensblad downloaden Teknisk support Product Downloads
Verwante producten 8
Approvals General ordering data Dimensions and weights Environmental Product Compliance Technical data of PCB plug-in connector General Info Material data System parameters Classifications

Approvals

ROHS
Conform

General ordering data

Version
Built-in plugs, M8, Mounting thread: M 12, Number of poles: 8, Strand / cable length:
Order No.
2423400000
Тип
SAIE-M8B-8S-H6TL
GTIN (EAN)
4050118430288
Qty.
25 items

Dimensions and weights

Net weight
9,046 g

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
6c
REACH SVHC
Lead 7439-92-1
SCIP
0ea6d931-f9e9-40a6-89d9-8d67103189d3

Technical data of PCB plug-in connector

Coding
M8 = none
Housing surface
nickel-plated
Housings
M8 socket
Installation height
6 mm
Mounting thread
Pin: M8 / Socket: M12
Number of poles
8
Shield connection
No
Type of mounting
Rear panel mounting
Tensión nominal
30 V
Rated voltage
60 V (3-pole) / 30 V (4-,5- and 8-pole)
Nominal current
1,5 A
Rated current
4 A (3-, 4- and 5-pole) / 1.5 A (8-pole)
Temperature range
-30…80 °C
Degré de protection
IP67
Contact surface
Au (Gold)
Housing main material
CuZn
nickel-plated
Connection thread
M8
조임 토크
M8: 0.5 Nm
Mounting thread
M 12
Mounting torque
  • max.:
    1,2 Nm
Mounting torque range
1.2 Nm
Insulation resistance
100 MΩ
Pollution severity
3 (2 within the sealed area)
Plugging cycles
≥ 100
Contact material
Cu-alloy
Seal material
FPM
Lock nut material
Nickel-plated CuZn
Material of the flange-mounted housing
Nickel-plated CuZn
Grouting material
PUR

General Info

Number of poles
8
Ház fő anyaga
CuZn
nickel-plated
Connection thread
M8
Contact material
Cu-alloy
Contact surface
Au (Gold)
Type of mounting
Rear panel mounting
Protection degree
IP67
Plugging cycles
≥ 100

Material data

Contact material
Cu-alloy
Érintkező felület
Au (Gold)

System parameters

Insulation resistance
100 MΩ
Number of poles
8
Pin series quantity
1
Plugging cycles
≥ 100
Protection degree
IP67

Classifications

ETIM 8.0
EC003568
ETIM 9.0
EC003568
ETIM 10.0
EC003568
ECLASS 14.0
27-44-01-10
ECLASS 15.0
27-44-01-10
