SC 3.81/15/135G 3.2SN OR BX

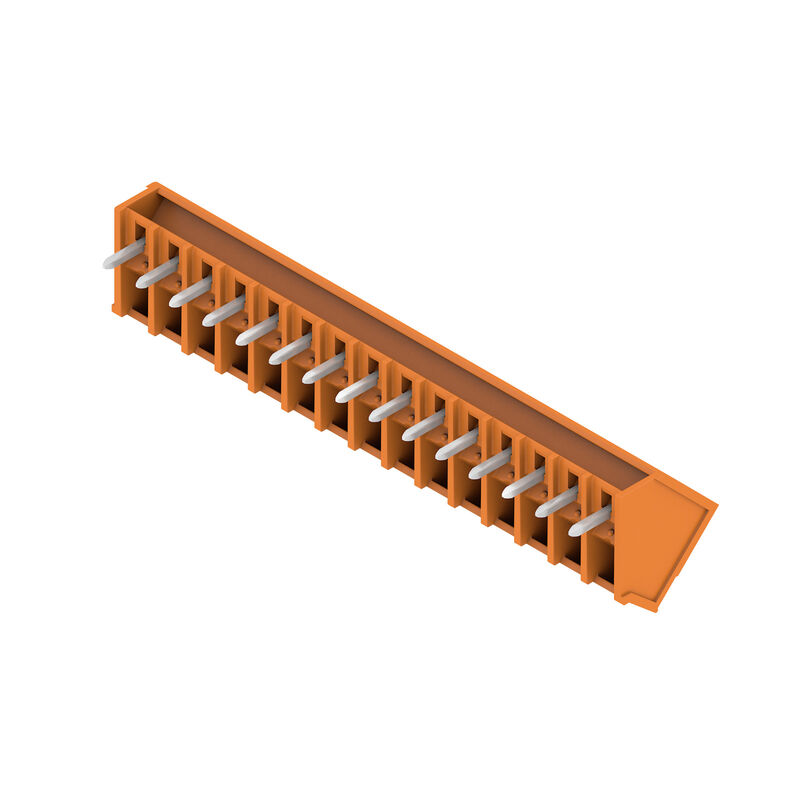

Product image
Similar to illustration
SC 3.81/15/135G 3.2SN OR BX

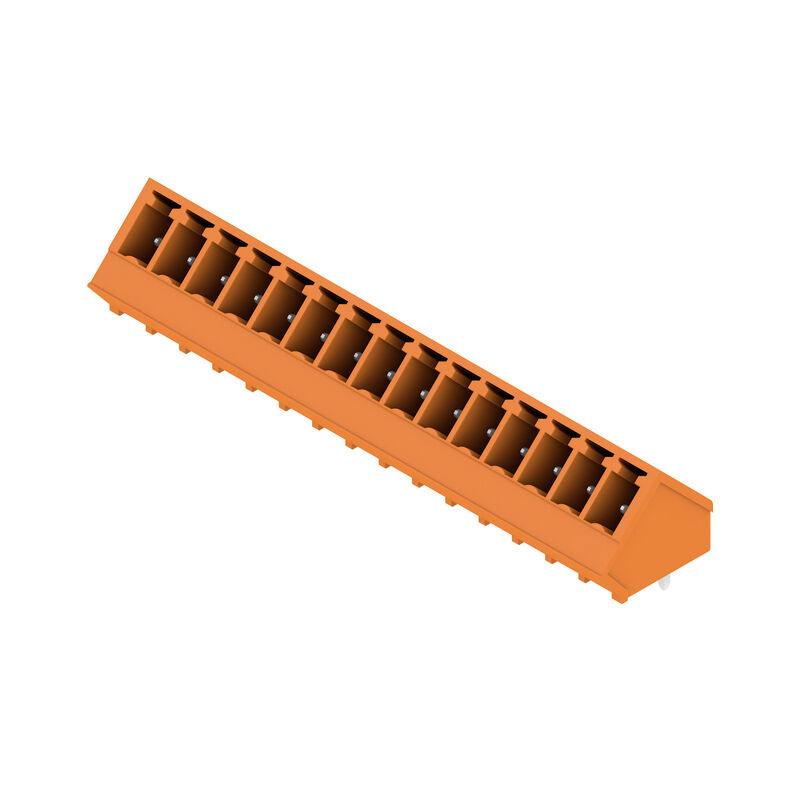

Product image
SC 3.81/15/135G 3.2SN OR BX
Dimensional drawing

SC 3.81/15/135G 3.2SN OR BX

PCB plug-in connector, male header, closed side, THT solder connection, 3.81 mm, Number of poles: 15, 135°, Solder pin length (l): 3.2 mm, tinned, orange, Box

Ürün No. 1975990000
Veri sayfasını indir Engineering Support Product Downloads
İlgili ürünler 25
Approvals General ordering data Dimensions and weights Environmental Product Compliance System specifications Material data Rated data acc. to IEC Rated data acc. to CSA Rated data acc. to UL 1059 Packing Important note Classifications

Approvals

Approvals
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319226/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319230/-S800/-T1z1mm-S80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (cURus)
E60693

General ordering data

Versión
PCB plug-in connector, male header, closed side, THT solder connection, 3.81 mm, Number of poles: 15, 135°, Solder pin length (l): 3.2 mm, tinned, orange, Box
Código
1975990000
Tipo
SC 3.81/15/135G 3.2SN OR BX
GTIN (EAN)
4032248684281
Qty.
50 adet
Product data
IEC: 320 V / 17.5 A
UL: 300 V / 11 A
Packaging
Box

Dimensions and weights

Depth
13,1 mm
Depth (inches)
0,516 inch
Height
14,2 mm
Height (inches)
0,559 inch
Height of lowest version
11 mm
Width
58,54 mm
Width (inches)
2,305 inch
Масса нетто
4,125 g

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

System specifications

Product family
OMNIMATE Signal - series BC/SC 3.81
Type of connection
Board connection
Mounting onto the PCB
THT solder connection
Pitch in mm (P)
3,81 mm
Pitch in inches (P)
0,15 "
Outgoing elbow
135°
Number of poles
15
Number of solder pins per pole
1
Solder pin length (l)
3,2 mm
Solder pin length tolerance
0 / -0.2 mm
Размеры выводов под пайку
d = 1.0 mm
Octagonal
Solder pin dimensions = d tolerance
0 / -0,03 mm
Диаметр отверстия припойного ушка (D)
1,2 mm
Solder eyelet hole diameter tolerance (D)
+ 0,1 mm
L1 in mm
53,34 mm
L1 in inches
2,1 "
Number of rows
1
Pin series quantity
1
Touch-safe protection acc. to DIN VDE 57 106
finger-safe unplugged/ back-of-hand-safe plugged
Touch-safe protection acc. to DIN VDE 0470
IP20 plugged/ IP10 unplugged
Volume resistance
≤5 mΩ
Can be coded
Yes
Plugging force/pole, max.
7 N
Pulling force/pole, max.
5 N

Material data

Insulating material
PA GF
Colour
orange
Colour chart (similar)
RAL 2000
Insulating material group
II
Сравнительный показатель пробоя (CTI)
≥ 550
UL 94 flammability rating
V-0
Materiale dei contatti
Copper alloy
Érintkező felület
tinned
Storage temperature, min.
-40 °C
Storage temperature, max.
70 °C
Operating temperature, min.
-50 °C
Operating temperature, max.
120 °C
Temperature range, installation, min.
-25 °C
Temperature range, installation, max.
120 °C

Rated data acc. to IEC

tested acc. to standard
IEC 60664-1
IEC 61984
Prąd znamionowy, min. liczba biegunów (Tu=20°C)
17,5 A
Prąd znamionowy, maks. liczba biegunów (Tu=20°C)
17,5 A
Rated current, min. number of poles (Tu=40°C)
17,5 A
Rated current, max. number of poles (Tu=40°C)
17,1 A
서지 전압 클래스 정격 전압 / 오염 등급 II/2
320 V
Tensione di dimensionamento con classe di sovratensione/grado di lordura III/2
160 V
Номинальное импульсное напряжение при категории помехозащищенности/Категория загрязнения III/3
160 V
Märkspänning vid överspänningsk./Nedsmutsningsgrad II/2
2,5 kV
Номинальное импульсное напряжение при категории помехозащищенности/Категория загрязнения III/2
2,5 kV
Sovratensione nominale con classe di sovratensione/grado di lordura III/3
2,5 kV
Short-time withstand current resistance
3 x 1s with 76 A

Rated data acc. to CSA

Institute (CSA)
CSA
Certificate No. (CSA)
200039-1121690
Rated voltage (Use group B / CSA)
300 V
Rated current (Use group B / CSA)
11 A
Rated current (Use group D / CSA)
10 A
Reference to approval values
Specifications are maximum values, details - see approval certificate.

Rated data acc. to UL 1059

Institute (cURus)
CURUS
Certificate No. (cURus)
E60693
Rated voltage (Use group B / UL 1059)
300 V
Rated voltage (Use group D / UL 1059)
300 V
Corrente nominale (Gruppo B / UL 1059)
11 A
Rated current (Use group D / UL 1059)
10 A
Reference to approval values
Specifications are maximum values, details - see approval certificate.

Packing

Packaging
Box
VPE length
153 mm
VPE width
90 mm
VPE height
38 mm

Important note

IPC conformity
Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.
Notes
  • Additional variants on request
  • Rated current related to rated cross-section & min. No. of poles.
  • Rated data refer only to the component itself. Clearance and creepage distances to other components are to be designed in accordance with the relevant application standards.
  • P on drawing = pitch
  • In accordance with IEC 61984, OMNIMATE-connectors are connectors without breaking capacity (COC). During designated use, connectors are not allowed to be engaged or disengaged when live or under load
  • Long term storage of the product with average temperature of 50 °C and maximum humidity 70%, 36 months


Classifications

ETIM 8.0
EC002637
ETIM 9.0
EC002637
ETIM 10.0
EC002637
ECLASS 14.0
27-46-02-01
ECLASS 15.0
27-46-02-01
