TBF 60/60/21 TRSP

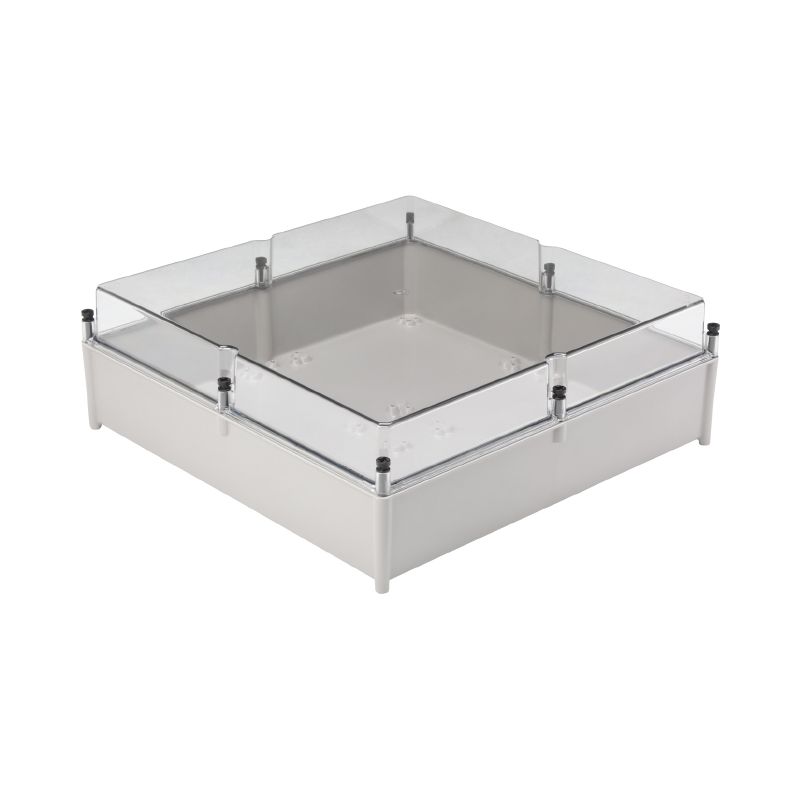

Similar to illustration
TBF 60/60/21 TRSP

TBF 60/60/21 TRSP

TBF (polyester empty enclosure), Empty enclosure, Height: 603 mm, Width: 605 mm, Depth: 210 mm, Basic material: Glass fibre-reinforced polyester, untreated, Light Grey, Transparent

Ürün No. 9502870000
Veri sayfasını indir Engineering Support Product Downloads
Aksesuarlar 8 İlgili ürünler 2
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Cable glands, right Cable glands, top/bottom Certificate numbers enclosure General information horizontal assembly vertical assembly Classifications

Approvals

ROHS
Conform

General ordering data

Version
TBF (polyester empty enclosure), Empty enclosure, Height: 603 mm, Width: 605 mm, Depth: 210 mm, Basic material: Glass fibre-reinforced polyester, untreated, Light Grey, Transparent
Order No.
9502870000
Type
TBF 60/60/21 TRSP
GTIN (EAN)
4032248032327
Qty.
1 adet

Dimensions and weights

Depth
210 mm
Depth (inches)
8,268 inch
Height
603 mm
Height (inches)
23,74 inch
Width
605 mm
Width (inches)
23,819 inch
Net weight
7.200 g

Temperatures

Operating temperature
-50 °C...130 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Cable glands, right

M12
88
M16
48
M20
40
M25
20
M32
8
M40
6
M50
6
M63
4

Cable glands, top/bottom

M12
88
M16
48
M20
40
M25
20
M32
8
M40
6
M50
6
M63
4

Certificate numbers enclosure

Declaration of Conformatiy No. (DoC LVD)
DoC DE PS2420 220224 002ISS01

General information

Access opening: height
578 mm
Access opening: width
578 mm
Allegato coperchio
Crosshead nylon screws
Areas of use
Building systems and technology
Transportation
Packaging industry
Machine construction
Basic material
Glass fibre-reinforced polyester
Enclosure attachment
6.5 mm hole in enclosure base
Flange plate
No
Installation advice
Screw mounting
Integral fixing
4 or 6 stud bolts M6 inner (female) thread
Lid
Yes
Number of lid screws
8
Operating temperature, max.
130 °C
Powierzchnia
untreated
Protection degree
IP66
Seal material
Polyurethane
Slagtålighet
IK08 in accordance with IEC 62208
IK10 in accordance with IEC 62262
Standards
IEC 60529
EN 60529
EN 62208
EN/IEC 61439-2
Torque for lid screws
1,5 Nm
Toxicity
Free from halogens
UL 94 가연성 등급
V-2
Üzemi hőmérséklet, min.
-50 °C

horizontal assembly

WDU 10 / ZDU 10
4x51
WDU 16 / ZDU 16
4x37
WDU 2,5 / ZDU 2,5 / IDU 2,5
4x101
WDU 35 / ZDU 35
4x32
WDU 4 / ZDU 4
4x85
WDU 6 / ZDU 6
4x64

vertical assembly

WDU 10 / ZDU 10
5x51
WDU 16 / ZDU 16
5x37
WDU 2,5 / ZDU 2,5 / IDU 2,5
5x101
WDU 35 / ZDU 35
5x32
WDU 4 / ZDU 4
5x85
WDU 6 / ZDU 6
5x64

Classifications

ETIM 8.0
EC000261
ETIM 9.0
EC000261
ETIM 10.0
EC000261
ECLASS 14.0
27-18-01-01
ECLASS 15.0
27-18-01-01
