WTL 6 STB SW
WTL 6 STB SW

WTL 6 STB SW

Tento výrobek již nebude k dispozici.

Last order date: /Date(1782770400000)/

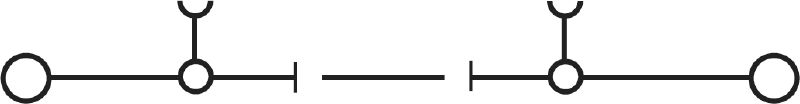

Measuring transformer disconnect terminal, Screw connection, 500, 41, 2

Art.-Nr. 2863900000
Im Konfigurator öffnen
Datenblatt herunterladen Tekninen tuki Tuotelataukset
Tilbehør 15 Anvendte produkter 41
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Material data System specifications Additional technical data Conductors for clamping (additional connection) Conductors for clamping (rated connection) General Rating data UL rating data Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/70d4994d-1e1f-4a62-8b8a-96bcbd57aca3/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/5855f480-81e6-48e1-aa53-1e87419df7ba/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (UR)
E60693

General ordering data

Version
Measuring transformer disconnect terminal, Screw connection, 500, 41, 2
Order No.
2863900000
Type
WTL 6 STB SW
GTIN (EAN)
4064675598787
Qty.
50 items
Delivery status
This article will no longer be available in the future.
Last order date
/Date(1782770400000)/

Dimensions and weights

Depth
46,5 mm
Depth (inches)
1,831 inch
Depth including DIN rail
47,5 mm
Height
69 mm
Height (inches)
2,717 inch
Width
7,9 mm
Width (inches)
0,311 inch
Net weight
23,1 g

Temperatures

Storage temperature
-25 °C...55 °C
Continuous operating temp., min.
−60 °C
Continuous operating temp., max.
130 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Material data

Basic material
Wemid
Färgkod
black
UL 94 flammability rating
V-0

System specifications

End cover plate required
Yes
Number of potentials
1
Number of levels
1
Number of clamping points per level
2
Antal potentialer per våning
1
Mounting rail
TS 35
N-function
No
PE function
No
PEN function
No

Additional technical data

Explosion-tested version
No
Open sides
right
Type of mounting
Snap-on

Conductors for clamping (additional connection)

Connection type, additional connection
Screw connection

Conductors for clamping (rated connection)

Blade size
0.8 x 4.0 mm
Clamping range, max.
10 mm²
Clamping range, min.
0,5 mm²
Clamping screw
M 3.5
Connection cross-section, stranded, max.
10 mm²
Connection cross-section, stranded, min.
0,5 mm²
Connection direction
on side
Gauge to IEC 60947-1
A5
Number of connections
2
Stripping length
12 mm
Tightening torque, max.
1,2 Nm
Tightening torque, min.
0,8 Nm
Type of connection
Screw connection
Wire connection cross section AWG, max.
AWG 8
Wire connection cross section AWG, min.
AWG 20
Wire connection cross section, finely stranded, max.
6 mm²
Wire connection cross section, finely stranded, min.
0,5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.
6 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.
0,5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
6 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
0,5 mm²
Wire connection cross-section, solid core, max.
10 mm²
Wire connection cross-section, solid core, min.
0,5 mm²

General

Mounting rail
TS 35
Standards
IEC 60947-7-1
Wire connection cross section AWG, max.
AWG 8
Wire connection cross section AWG, min.
AWG 20

Rating data

Rated cross-section
6 mm²
Rated voltage
500 V
Rated DC voltage
500 V
Märkström
41 A
Current at maximum wires
41 A
Standards
IEC 60947-7-1
Volume resistance according to IEC 60947-7-x
0,78 mΩ
Rated impulse withstand voltage
6 kV
Power loss in accordance with IEC 60947-7-x
1,31 W
Pollution severity
3

UL rating data

Certifikat nr. (UR)
E60693
Corrente Gr D (UR)
10 A
Ledarstorlek Field wiring max (UR)
8 AWG
Ledarstorlek Field wiring min (UR)
20 AWG
Sección del conductor Cableado de fábrica máx. (UR)
8 AWG
Spänning grupp D (UR)
300 V
Velikost proudu B (UR)
30 A
Voltage size B (UR)
300 V
Voltage size C (UR)
150 V
Разм. провода Заводская электропроводка, мин. (UR)
20 AWG
전류 크기 C(UR)
30 A

Classifications

ETIM 8.0
EC000902
ETIM 9.0
EC000902
ETIM 10.0
EC000902
ECLASS 14.0
27-25-01-09
ECLASS 15.0
27-25-01-09
