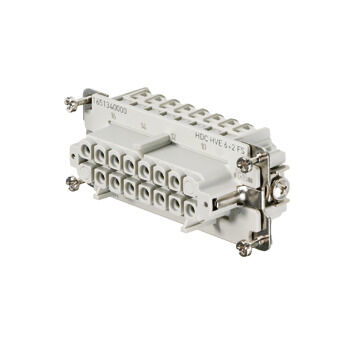

HDC HVE 6+2 FS
HDC HVE 6+2 FS
Drawing
HDC HVE 6+2 FS
mounting cutout

HDC HVE 6+2 FS

HDC insert, Female, 830 V, 20 A, Number of poles: 8, Screw connection, Installation size: 6

Produkt ID 1651340000
Download datablad Engineering-support Produktdownloads
Tilbehør 2 Anvendte produkter 2
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Dimensions General data Connection data PE Version Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/7849a070-6e16-4866-9b5a-c610b7f622e5/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/cbf09862-97e9-475d-b71a-c6db1e3e9933/DAP_Master_ICON,w_80,q_80)
ROHS
Conform

General ordering data

Version
HDC insert, Female, 830 V, 20 A, Number of poles: 8, Screw connection, Installation size: 6
Order No.
1651340000
Type
HDC HVE 6+2 FS
GTIN (EAN)
4008190299941
Qty.
1 Styk

Dimensions and weights

Depth
84,5 mm
Depth (inches)
3,327 inch
Height
35,2 mm
Height (inches)
1,386 inch
Width
34 mm
Width (inches)
1,339 inch
Net weight
76 g

Temperatures

Limit temperature
-40 °C ... 125 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
6c
REACH SVHC
Lead 7439-92-1
Potassium perfluorobutane sulfonate 29420-49-3
SCIP
b67daa31-7dca-434d-8290-da7fb52f83a2
Chemical resistance
  • Substance:
    Acetone
  • Chemical resistance:
    Resistant
  • Substance:
    Ammonia, watery
  • Chemical resistance:
    Conditionally resistant
  • Substance:
    Petrol
  • Chemical resistance:
    Resistant
  • Substance:
    Benzene
  • Chemical resistance:
    Resistant
  • Substance:
    Diesel oil
  • Chemical resistance:
    Conditionally resistant
  • Substance:
    Acetic acid, concentrated
  • Chemical resistance:
    Resistant
  • Substance:
    Potassium hydroxide
  • Chemical resistance:
    Conditionally resistant
  • Substance:
    Methanol
  • Chemical resistance:
    Conditionally resistant
  • Substance:
    Motor oil
  • Chemical resistance:
    Conditionally resistant
  • Substance:
    Lye, diluted
  • Chemical resistance:
    Resistant
  • Substance:
    Hydrochlorofluorocarbons
  • Chemical resistance:
    Conditionally resistant
  • Substance:
    Outdoor use
  • Chemical resistance:
    Conditionally resistant

Dimensions

Height of socket
35,2 mm
너비
34 mm
총 길이 베이스
84,5 mm

General data

Basic material
Copper alloy
BG
6
Colour
beige
Conductor cross-section
2,5 mm²
Installation size
6
Insulating material
PC glass-fibre reinforced (UL-listed and railway-certified)
Insulating material group
IIIa
Insulation resistance
1010 Ω
Low smoke acc. DIN EN 45545-2
Yes
Max. torque for main contact
0,55 Nm
Min. torque for main contact
0,5 Nm
Number of poles
8
Number of power contacts
6
Number of signal contacts
2
Plugging cycles, gold
≥ 500
Plugging cycles, silver
≥ 500
Pollution severity
3
Rated current (DIN EN 61984)
20 A
Rated impulse voltage (DIN EN 61984)
8 kV
Rated voltage (DIN EN 61984)
830 V
Rated voltage according to UL/CSA
600 V AC/DC
Series
HVE
Surface finish
Pasivované stříbro
Tightening torque, max. PE connection
1,5 Nm
Tightening torque, min. PE connection
1,2 Nm
Type
Femelle
Type of connection
Collegamento a vite
UL 94 flammability rating
V-0
Volume resistance
≤2 mΩ

Connection data PE

Blade size, slotted (PE connection)
SD 0.8 x 4.0
Connection type PE
Screw connection
Fixing screw
M 4
Rated cross-section
4 mm²
Stripping length PE connection
10 mm
Tightening torque, max. PE connection
1,5 Nm
Tightening torque, min. PE connection
1,2 Nm
Wire cross section, AWG (PE), max.
AWG 12
Wire cross section, AWG (PE), min.
AWG 20

Version

Alapanyag
Copper alloy
BG
6
Blade size
size PZ0
Clamping screw
M 3
Couple de serrage max. contact principal
0,55 Nm
Délka odizolování, jmenovité připojení
9 mm
Installation size
6
Min. nyomaték a főérintkező számára
0,5 Nm
Průřez propojení AWG, max.
AWG 14
Sección de conexión del conductor, flexible, max.
4 mm²
Section de raccordement du conducteur, max.
2,5 mm²
Section de raccordement du conducteur, min.
0,5 mm²
Surface
Silver passivated
Type of connection
Collegamento a vite
Velikost čepele, plochá drážka (šroubové připojení)
SD 0.6 x 3.5
Volume resistance
≤2 mΩ
Wire connection cross section AWG, min.
AWG 20
Wire connection cross section, finely stranded, min.
0,5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
4 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
0,5 mm²
Wire cross-section, solid, max.
4 mm²
Wire cross-section, solid, min.
0,5 mm²

Classifications

ETIM 8.0
EC000438
ETIM 9.0
EC000438
ETIM 10.0
EC000438
ECLASS 14.0
27-44-02-05
ECLASS 15.0
27-44-02-05
