Egenskaper

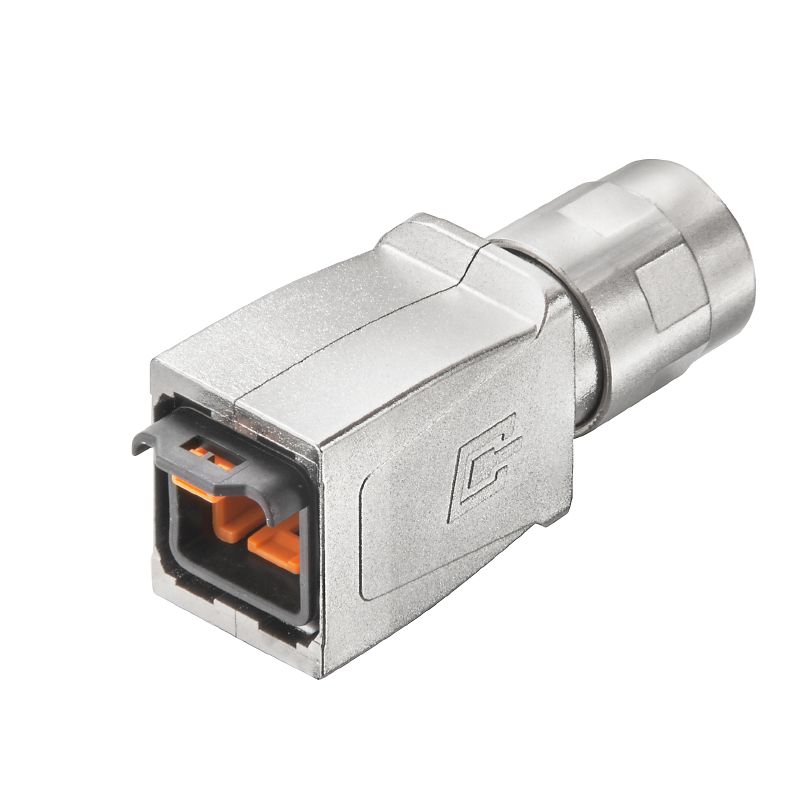

| Utförande | Tom kapsling |
| Art.nr. | 1058100000 |
| Typ | IE-PH-V14M-FO |
| GTIN (EAN) | 4032248799213 |
| Förp. | 10 items |

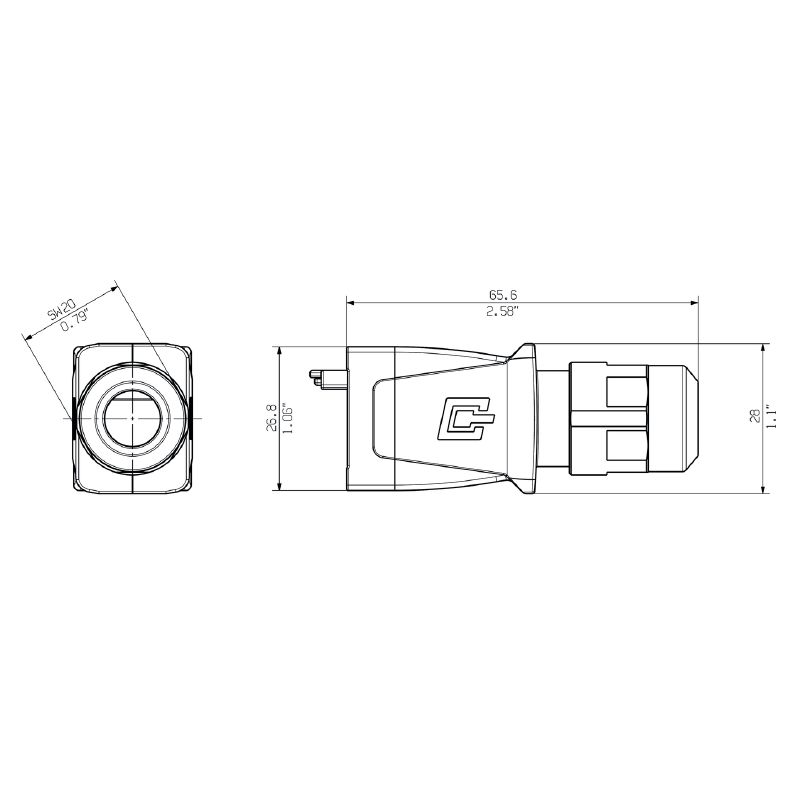

| Djup | 72,45 mm |
| Byggdjup (tum) | 2,852 inch |
| Höjd | 26,8 mm |
| Bygghöjd (tum) | 1,055 inch |
| Bredd | 22,3 mm |
| Byggbredd (tum) | 0,878 inch |
| Nettovikt | 56,327 g |
| Drifttemperatur | -40 °C...70 °C |
| RoHS-kompatibilitetsstatus | Kompatibel med undantag |
| RoHS-undantag (om tillämpligt/känt) | 6c |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | 4f3aae94-c2bc-4010-b63b-5b114ba6bd55 |
| Certifikat-Nr. (cULus) | E316369 |
| Kontaktdon Norm | IEC 61076-3-117 var. 14 |
| Godkännande/Certifikat/Dokument om överensstämmelse |
[DUXR.E316369](https://mdcop.weidmueller.com/mediadelivery/asset/900_58418)
[PROFINET Manufacturer's Declaration](https://mdcop.weidmueller.com/mediadelivery/asset/900_67339) |
| Teknikuppgifter Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_44996) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1058100000) |
| Användardokumentation |
[MAN IE GUIDE DE](https://mdcop.weidmueller.com/mediadelivery/asset/900_40065)
[MAN IE GUIDE EN](https://mdcop.weidmueller.com/mediadelivery/asset/900_40066) [Designation key / Type key](https://mdcop.weidmueller.com/mediadelivery/asset/900_90841) |
| Kataloger | [Catalogues in PDF-format](LINK/Catalog.html) |
| Broschyrer |
[FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293)
[PI PROFINET CABLING EN](http://download.weidmueller.com/asset/download/file/38183) [PI PROFINET CABLING EN](http://download.weidmueller.com/asset/download/file/38183) |
| ETIM 6.0 | EC001031 |
| ETIM 7.0 | EC001031 |
| ETIM 8.0 | EC001031 |
| ETIM 9.0 | EC001031 |
| ECLASS 9.0 | 27-18-27-02 |
| ECLASS 9.1 | 27-18-27-02 |
| ECLASS 10.0 | 27-18-27-02 |
| ECLASS 11.0 | 27-18-27-02 |
| ECLASS 12.0 | 27-18-27-02 |
| ECLASS 13.0 | 27-19-01-04 |
| ECLASS 14.0 | 27-19-01-04 |
| Godkännanden |  |
| ROHS | Uppfyllelse |
| UL File Number Search | [UL-webbplats](LINK/UL_search.html) |
| Certifikat-Nr. (cULus) | E316369 |
