IE-PS-LCD-MM
IE-PS-LCD-MM
Dimensioned drawing

IE-PS-LCD-MM

This product will soon be unavailable.

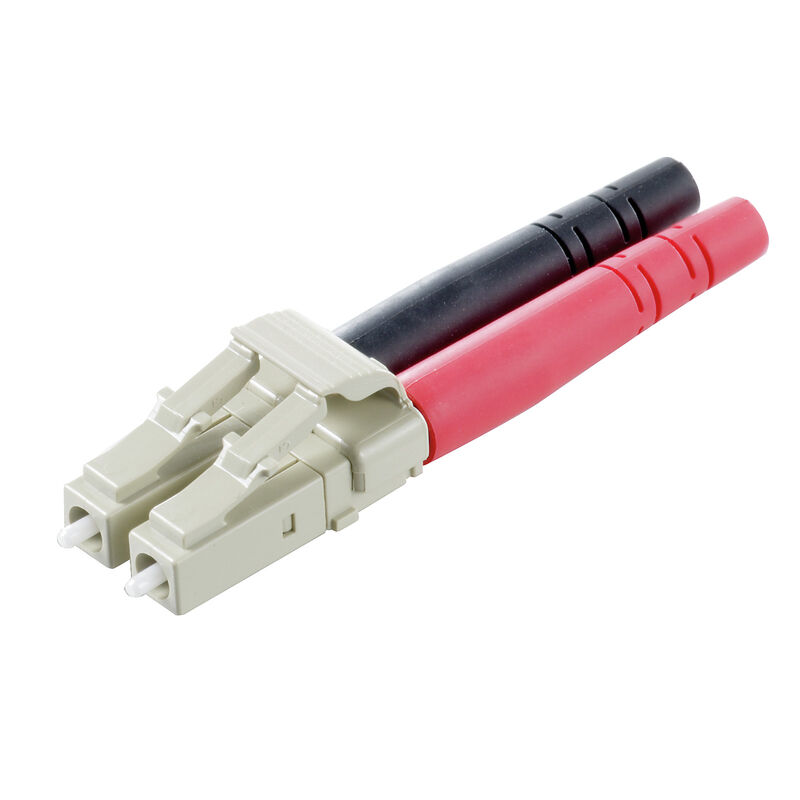

FO connector, Plug LC duplex, multimode, IP20

Item No. 1962970000
Download data sheet Product Downloads
Accessories 1
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Allmänna data General standards Classifications

Approvals

ROHS
Conform

General ordering data

Változat
FO connector, Plug LC duplex, multimode, IP20
Rendelési szám
1962970000
Art
IE-PS-LCD-MM
GTIN (EAN)
4032248645152
Qty.
1 items
Stato consegna
This article will no longer be available in the future.
Lieferbar bis
08.04.2025

Dimensions and weights

Net weight
4.22 g

Temperatures

Temperatura de servicio
-40 °C...70 °C
Feuchtigkeit
0...93 % rel. humidity

Environmental Product Compliance

RoHS megfelelőségi állapot
Compliant with exemption
Exemption RoHS (le cas échéant/connue)
6c
REACH SVHC
Lead 7439-92-1
SCIP
67cf1078-beca-4687-860b-dc475a6ec24a

Allmänna data

Bending protection sleeve material
TPE
Cable pull-out force, min.
100 N
Colour
Miscellaneous
Connection 1
LC Duplex
Connection 2
gluing, crimping, polishing
Crimp barrel material
Copper
nickel-plated
Description of article
Plug LC duplex, multimode
Dust protection cap material
TPE
Ferrule material
Zirconia
Fibre type
GOF
Multimode
Housing main material
PC UL 94 V0
Housing material, insert
Zinc diecast
Humidity
0...93 % rel. humidity
Insertion loss
≤ 0.4 dB
Plugging cycles
1000
Pressure spring material
Stainless steel, rust-proof
Protection degree
IP20
Return loss (attenuation)
≥ 30 dB
Sheath diameter, max.
3 mm
Sheath diameter, min.
2.8 mm
Single conductor diameter, max
1.4 mm
Single conductor diameter, min
0.6 mm

General standards

Connector standard
IEC 61754-20

Classifications

ETIM 8.0
EC001122
ETIM 9.0
EC001122
ETIM 10.0
EC001122
ECLASS 14.0
19-17-01-22
ECLASS 15.0
19-17-01-22
