SC 3.81/18/90G 3.2SN OR BX

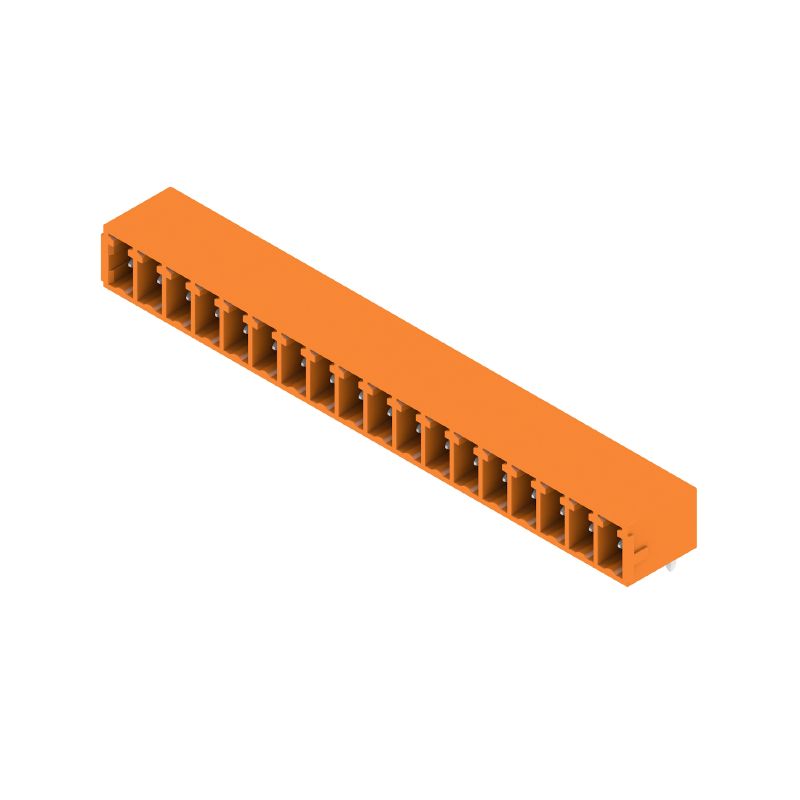

Product image
SC 3.81/18/90G 3.2SN OR BX
Product image
SC 3.81/18/90G 3.2SN OR BX
Dimensional drawing

SC 3.81/18/90G 3.2SN OR BX

Bu ürün yakında mevcut olmayacak.

Sista orderdatum: /Date(1793401200000)/

PCB plug-in connector, male header, closed side, THT solder connection, 3.81 mm, Number of poles: 18, 90°, Solder pin length (l): 3.2 mm, tinned, orange, Box

Ürün No. 1942230000
Veri sayfasını indir Mühendislik desteği Ürün İndirmleri
Aksesuarlar 4 İlgili ürünler 27
Approvals General ordering data Dimensions and weights Environmental Product Compliance System specifications Material data Rated data acc. to IEC Rated data acc. to CSA Rated data acc. to UL 1059 Packing Important note Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/7849a070-6e16-4866-9b5a-c610b7f622e5/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/33feeb02-46e9-4a14-9d79-8ec5ee409fe3/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (cURus)
E60693

General ordering data

Version
PCB plug-in connector, male header, closed side, THT solder connection, 3.81 mm, Number of poles: 18, 90°, Solder pin length (l): 3.2 mm, tinned, orange, Box
Order No.
1942230000
Type
SC 3.81/18/90G 3.2SN OR BX
GTIN (EAN)
4032248655366
Qty.
24 adet
Product data
IEC: 320 V / 17.5 A
UL: 300 V / 11 A
Packaging
Box
Delivery status
This article will no longer be available in the future.
Sista orderdatum
/Date(1793401200000)/

Dimensions and weights

Depth
9,2 mm
Depth (inches)
0,362 inch
Height
10,3 mm
Height (inches)
0,406 inch
Height of lowest version
7,1 mm
Width
69,98 mm
Width (inches)
2,755 inch
순중량
3,882 g

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

System specifications

Product family
OMNIMATE Signal - series BC/SC 3.81
Type of connection
Board connection
Mounting onto the PCB
THT solder connection
Pitch in mm (P)
3,81 mm
Pitch in inches (P)
0,15 "
Outgoing elbow
90°
Number of poles
18
Number of solder pins per pole
1
Solder pin length (l)
3,2 mm
Solder pin length tolerance
0 / -0.2 mm
Размеры выводов под пайку
d = 1.0 mm
Octagonal
Solder pin dimensions = d tolerance
0 / -0,03 mm
Solder eyelet hole diameter (D)
1,2 mm
Solder eyelet hole diameter tolerance (D)
+ 0,1 mm
L1 in mm
64,77 mm
L1 in inches
2,55 "
Number of rows
1
Pin series quantity
1
Touch-safe protection acc. to DIN VDE 57 106
finger-safe unplugged/ back-of-hand-safe plugged
Touch-safe protection acc. to DIN VDE 0470
IP20 plugged/ IP10 unplugged
Volume resistance
≤5 mΩ
Can be coded
Yes
Plugging force/pole, max.
7 N
Pulling force/pole, max.
5 N

Material data

Materiale isolante
PA GF
Couleur
orange
Tableau des couleurs (similaire)
RAL 2000
Groupe de matériaux isolants
II
Comparative Tracking Index (CTI)
≥ 550
UL 94 flammability rating
V-0
Material de contacto
Copper alloy
Superficie de contacto
tinned
Storage temperature, min.
-40 °C
Storage temperature, max.
70 °C
Operating temperature, min.
-50 °C
Operating temperature, max.
120 °C
Temperature range, installation, min.
-25 °C
Temperature range, installation, max.
120 °C

Rated data acc. to IEC

tested acc. to standard
IEC 60664-1
IEC 61984
Névleges áram, min. pólusszám (Tu=20 °C)
17,5 A
Courant nominal, nombre de pôles max. (Tu = 20 °C)
17,5 A
Courant nominal, nombre de pôles min. (Tu = 40 °C)
17,5 A
Rated current, max. number of poles (Tu=40°C)
16,3 A
Märkspänning vid överspänningsk./Nedsmutsningsgrad II/2
320 V
Märkspänning vid överspänningsk./Nedsmutsningsgrad III/2
160 V
서지 전압 클래스 정격 전압 / 오염 등급 III/3
160 V
Номинальное импульсное напряжение при категории помехозащищенности/Категория загрязнения II/2
2,5 kV
znamionowe napięcie udarowe przy kat. przepięć/stopniu zanieczyszczenia III/2
2,5 kV
Sobretensión de choque nominal con categoría de sobretensión/grado de polución III/3
2,5 kV
Resistencia a corrientes de corta duración
3 x 1s with 76 A

Rated data acc. to CSA

Institute (CSA)
CSA
Certificate No. (CSA)
200039-1121690
Rated voltage (Use group B / CSA)
300 V
Rated current (Use group B / CSA)
11 A
Rated current (Use group D / CSA)
10 A
Reference to approval values
Specifications are maximum values, details - see approval certificate.

Rated data acc. to UL 1059

Institute (cURus)
CURUS
Certificate No. (cURus)
E60693
Nennspannung (Use group B / UL 1059)
300 V
Märkspänning (användargrupp D / UL 1059)
300 V
Märkström (användargrupp B / UL 1059)
11 A
Rated current (Use group D / UL 1059)
10 A
Reference to approval values
Specifications are maximum values, details - see approval certificate.

Packing

Packaging
Box
VPE length
350 mm
VPE width
138 mm
VPE height
32 mm

Important note

IPC conformity
Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.
Notes
  • Additional variants on request
  • Rated current related to rated cross-section & min. No. of poles.
  • Rated data refer only to the component itself. Clearance and creepage distances to other components are to be designed in accordance with the relevant application standards.
  • P on drawing = pitch
  • In accordance with IEC 61984, OMNIMATE-connectors are connectors without breaking capacity (COC). During designated use, connectors are not allowed to be engaged or disengaged when live or under load
  • Long term storage of the product with average temperature of 50 °C and maximum humidity 70%, 36 months


Classifications

ETIM 8.0
EC002637
ETIM 9.0
EC002637
ETIM 10.0
EC002637
ECLASS 14.0
27-46-02-01
ECLASS 15.0
27-46-02-01
