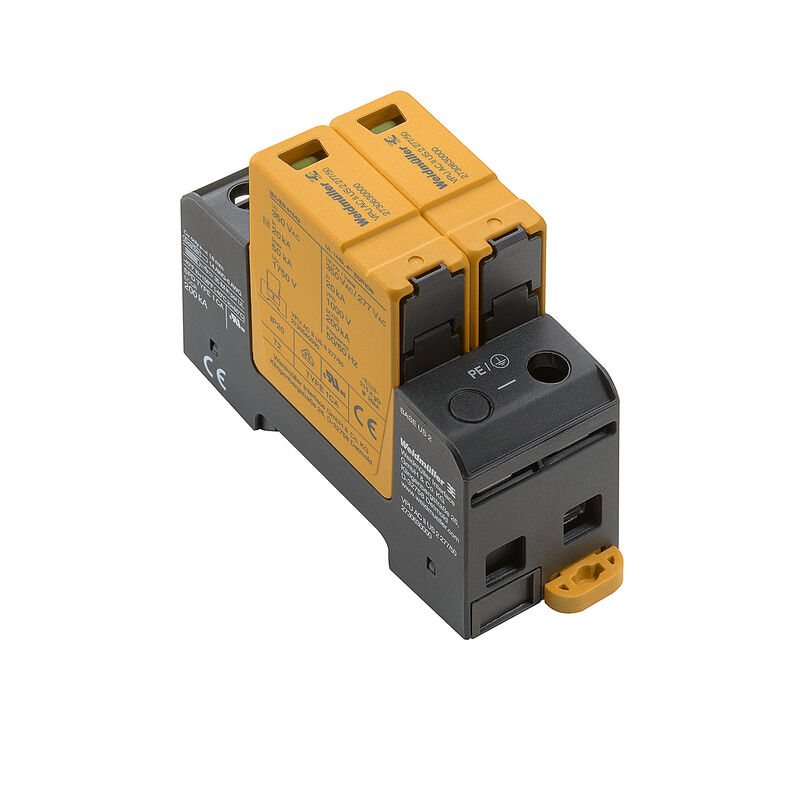

VPU AC II US 2 277/50
VPU AC II US 2 277/50
Electric symbol
Schematic circuit diagram

VPU AC II US 2 277/50

Surge voltage arrester, Low voltage, Surge protection, Single-phase, TN-S

Product ID 2730630000
Openen in configurator
Gegevensblad downloaden Engineering Support Product Downloads
Toebehoren 4 Onderdelen 2 Verwante producten 6
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Rated data UL Connection data, remote alert General data Insulation coordination acc. to EN 50178 Rated data IEC / EN Connection data Electrical data General data Ratings IECEx/ATEX/cUL Guarantee Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/0d1637a4-c7dd-4915-8bc8-4c9de8d8b393/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/756ea985-024d-4142-85a7-acc2e9775394/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate no. (cULus)
E354261

General ordering data

Utförande
Surge voltage arrester, Low voltage, Surge protection, Single-phase, TN-S
Art.nr.
2730630000
Typ
VPU AC II US 2 277/50
GTIN (EAN)
4050118807479
Qty.
1 items

Dimensions and weights

Djup
68 mm
Depth (inches)
2,677 inch
Depth including DIN rail
76 mm
Höjd
90 mm
Height (inches)
3,543 inch
Bredd
36 mm
Width (inches)
1,417 inch
Montagemått höjd
75 mm
Net weight
259 g

Temperatures

Storage temperature
-40 °C...85 °C
Ambient temperature
-40 °C…85 °C
Operating temperature
-40 °C...85 °C
Humidity
5 - 95% rel. humidity

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Rated data UL

Ambient temperature (operational), max.
85 °C
Rated Voltage UN
277 V
VPR (N-PE)
1.000 V
MCOV (L-PE)
350 V
MCOV (N-PE)
350 V
SCCR
200 kA
In
20 kA
Category
SPD TYPE 1
Connection cross-section AWG, min.
AWG 14
Connection cross-section AWG, max.
AWG 6
Ambient temperature (operational), min.
-40 °C
MODE
all modes
VPR (L-N)
2.000 V
VPR (L-PE)
1.000 V
Voltage type
AC
UL Energy Networks
Split-Phase

Connection data, remote alert

Connection type
PUSH IN

General data

Colour
orange
black
Design
Installation housing; 2TE
Insta IP 20
Mounting rail
TS 35
Operating altitude
≤ 4000 m
Optical function display
green = OK; red = arrester is defective - replace
Protection degree
IP20 in installed state
Segment
Power distribution
UL 94 flammability rating
V-0
Version
Surge protection

Insulation coordination acc. to EN 50178

Pollution severity
2
Surge voltage category
III

Rated data IEC / EN

Clase de requisitos según IEC 61643-11
Type II
Corrente di scarica In (8/20 µs) filo-PE
20 kA
Courant de fuite Imax. (8/20 µs) (N-PE)
50 kA
Courant de fuite In (8/20 µs) N-PE
20 kA
Energia koordináció (≤10 m)
Type II
Type III
Frequency range, max.
60 Hz
Frequenzbereich, min.
50 Hz
Följdströmssläckande förmåga Ifi
Follow current need not be taken into account
Integrerad försäkring
No
Leakage current at Un
0,3 mA
Low voltage network
Single-phase
TN-S
Max. continuous voltage, Uc (AC)
350 V
Number of poles
2
Ochranné pojistky
No Fuse neccessary ≤315 A gG
250 A gG @50 kA Isccr
315 A gG @25 kA Isccr
Rated voltage (AC)
277 V
Requirements class, acc. to EN 61643-11
T2
T3
Response time / fallback time
≤ 25 ns
Signalling contact
No
Standards
IEC 61643-11
EN 61643-11
UL 1449
NFPA 79
Temporary surge voltage (over-voltage) - TOV
403 V
Typ SPD
T2
Voltage type
AC
Номинальный ток короткого замыкания ISCCR
50 kA
Уровень защиты, Up при IN (L/N-PE)
≤ 1.75 kV
방전 전류 I최대 (8/20µs) 와이어-PE
50 kA

Connection data

Stripping length
18 mm
Wire connection method
Screw connection
Type of connection
Screw connection
Stripping length, rated connection
18 mm
Tightening torque, min.
3 Nm
Tightening torque, max.
4,5 Nm
Clamping range, rated connection
16 mm²
Clamping range, min.
1,5 mm²
Clamping range, max.
35 mm²
Wire connection cross section AWG, min.
AWG 16
Wire connection cross section AWG, max.
AWG 2
Wire cross-section, solid, min.
1,5 mm²
Wire cross-section, solid, max.
35 mm²
Wire connection cross section, finely stranded, min.
4 mm²
Wire connection cross section, finely stranded, max.
25 mm²
Sezione di collegamento cavo, flessibile, AEH (DIN 46228-1), min.
2,5 mm²
Sezione di collegamento cavo, flessibile, AEH (DIN 46228-1), max.
35 mm²
Connection cross-section, stranded, min.
1,5 mm²
Connection cross-section, stranded, max.
35 mm²

Electrical data

Voltage type
AC

General data

Number of poles
2
Protection degree
IP20 in installed state
Colour
orange
black

Ratings IECEx/ATEX/cUL

Certificate no. (cULus)
E354261

Guarantee

Time interval
5 years

Classifications

ETIM 8.0
EC000941
ETIM 9.0
EC000941
ETIM 10.0
EC000941
ECLASS 14.0
27-17-12-02
ECLASS 15.0
27-17-12-02
