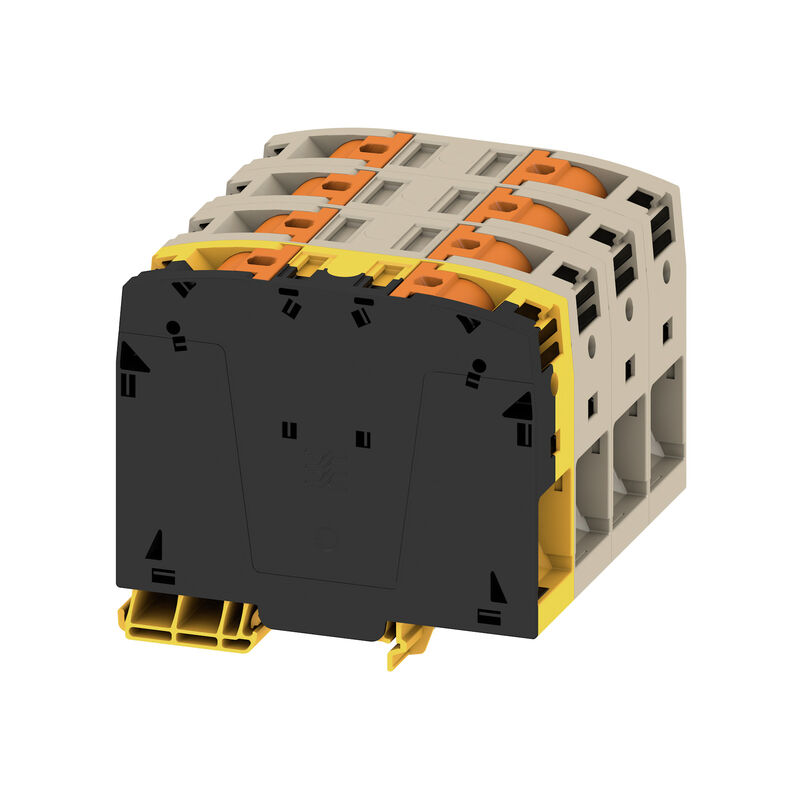

Feed-through terminal, PUSH IN, 95 mm², 1000 V, 232 A, dark beige

Produkt ID 2694130000
Åbn i konfiguratoren
Download datablad Engineering Support Product Downloads
Tilbehør 13 Anvendte produkter 113
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Material data System specifications Additional technical data Przewody zaciskane (kolejne przyłącze) Rögzíthető vezetékek (névleges csatlakozás) CSA névleges adatok General Rating data Расчетные данные согласно UL Important note Classifications

Approvals

Approvals
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319217/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319222/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319226/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319230/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319234/-S800/-T1z1mm-S80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (cURus)
E60693

General ordering data

Version
Feed-through terminal, PUSH IN, 95 mm², 1000 V, 232 A, dark beige
Order No.
2694130000
Type
A2C 95/120 3FT-FE
GTIN (EAN)
4064675266501
Qty.
1 Styk

Dimensions and weights

Depth
90 mm
Depth (inches)
3,543 inch
Height
101,5 mm
Height (inches)
3,996 inch
Width
100 mm
Width (inches)
3,937 inch
Nettó tömeg
298 g

Temperatures

Storage temperature
-25 °C...55 °C
Ambient temperature
-5 °C…40 °C
Continuous operating temp., min.
-60 °C
Continuous operating temp., max.
130 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Material data

Material básico
Wemid
Color
dark beige
Colour of operational elements
orange
Grado inflamabilidad según UL 94
V-0

System specifications

Véglap szükséges
No
Potenciálok száma
4
Number of levels
1
Number of clamping points per level
6
Nombre de potentiels par étage
4
Etages internes pontés
No
Barrette de liaison équipée
TS 35
Función PEN
No

Additional technical data

Lados abiertos
closed
Tipo de fijación
TS 35
Tipo de montaje
Snap-on
Versión a prueba de explosivos
Yes

Przewody zaciskane (kolejne przyłącze)

Connection type, additional connection
PUSH IN

Rögzíthető vezetékek (névleges csatlakozás)

120 mm²
Blade size
1,0 x 5,5 mm
Clamping range, min.
25 mm²
Connection cross-section, finely stranded, min.
25 mm²
Connection cross-section, stranded, max.
120 mm²
Connection cross-section, stranded, min.
25 mm²
Connection direction
z boku
Number of connections
2
Stripping length
40 mm
Type of connection
PUSH IN
Wire connection cross section AWG, max.
AWG 3/0
Wire connection cross section AWG, min.
AWG 4
Wire connection cross section, finely stranded, max.
120 mm²
Wire connection cross section, finely stranded, min.
25 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.
95 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.
25 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
95 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
25 mm²
Wire connection cross-section, solid core, max.
120 mm²
Wire connection cross-section, solid core, min.
25 mm²

CSA névleges adatok

Certificate No. (CSA)
200039-80115835
Current size B (CSA)
255 A
Current size C (CSA)
255 A
Voltage size B (CSA)
600 V
Voltage size C (CSA)
600 V
Wire cross section max. (CSA)
250 kcmil
Wire cross section min. (CSA)
4 AWG

General

Mounting rail
TS 35
Standards
IEC 60947-7-1
Wire connection cross section AWG, max.
AWG 3/0
Wire connection cross section AWG, min.
AWG 4

Rating data

Sección nominal
95 mm²
Névleges feszültség
1.000 V
Tensión nominal DC
1.500 V
Corriente nominal
232 A
Áram maximum vezetékoknál
232 A
Standards
IEC 60947-7-1
Volume resistance according to IEC 60947-7-x
0,14 mΩ
Névleges lökőfeszültség
8 kV
Pérdida de potencia según la norma IEC 60947-7-x
7,42 W
Categoría de sobretensión
III
Grado de polución
3

Расчетные данные согласно UL

Corriente Gr C (cURus)
255 A
Current size B (cURus)
255 A
Leitergr. Factory wiring max (cURus)
250 kcmil
Leitergr. Factory wiring min (cURus)
4 AWG
Leitergr. Field wiring min (cURus)
4 AWG
Sección del conductor Cableado de campo máx. (cURus)
250 kcmil
Tensión Gr C (cURus)
600 V
Velikost napětí B (cURus)
600 V
Zertifikat-Nr. (cURus)
E60693

Important note

Product information
The max. connectable wire reduces by one wire size if a cross connector is used that has to be mounted in the wire entry.

Classifications

ETIM 8.0
EC000897
ETIM 9.0
EC000897
ETIM 10.0
EC000897
ECLASS 14.0
27-25-01-01
ECLASS 15.0
27-25-01-01
