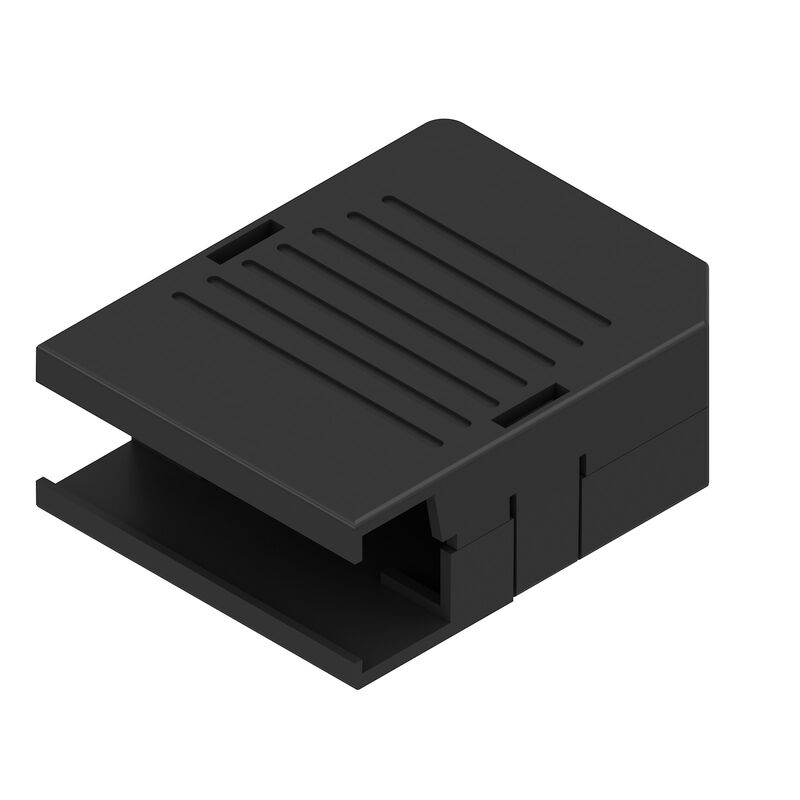

Product image
Similar to illustration
BCZ 3.81 AH08 BK BX

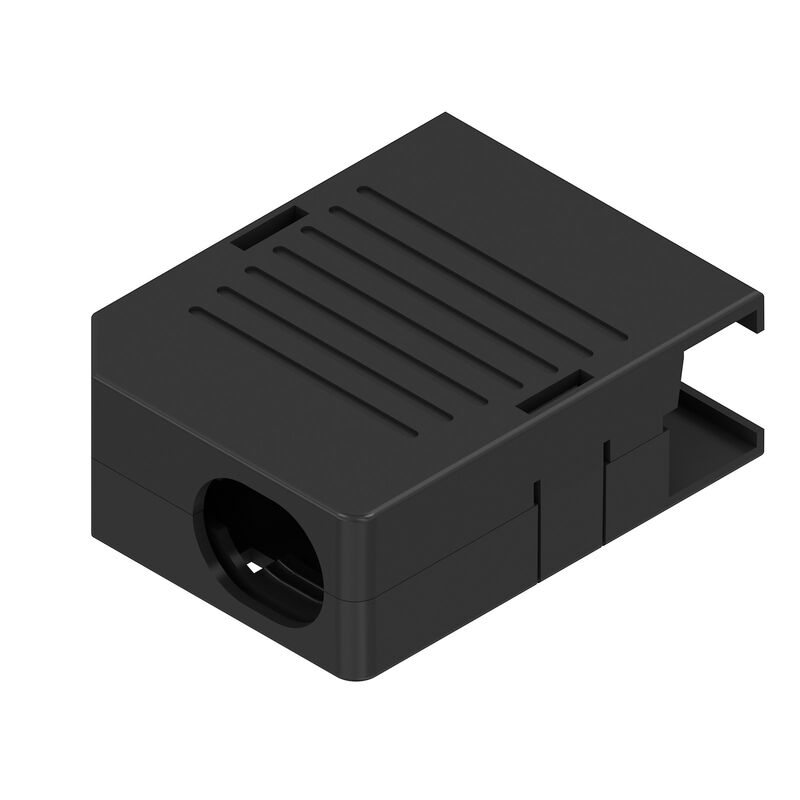

Product image
BCZ 3.81 AH08 BK BX

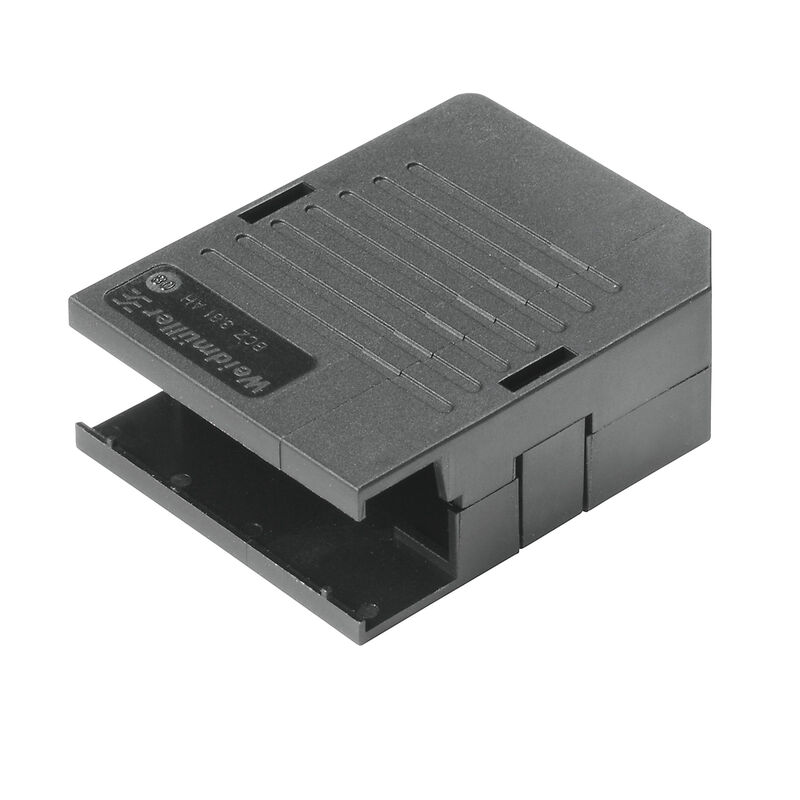

Product image
BCZ 3.81 AH08 BK BX
Example of use
BCZ 3.81 AH08 BK BX
Dimensional drawing

BCZ 3.81 AH08 BK BX

PCB plug-in connector, Accessories, Hood, black, Number of poles: 8

Ürün No. 1005330000
Veri sayfasını indir Mühendislik desteği Ürün İndirmleri
aksesuarıdır 9 İlgili ürünler 32
Approvals General ordering data Dimensions and weights Conformité environnementale du produit System specifications Material data Rated data acc. to IEC Packing Important note Classifications

Approvals

ROHS
Conform

General ordering data

Version
PCB plug-in connector, Accessories, Hood, black, Number of poles: 8
Order No.
1005330000
Type
BCZ 3.81 AH08 BK BX
GTIN (EAN)
4032248752553
VPE
10 Styk
Product data

Packaging
Box

Dimensions and weights

Net weight
6,1 g

Conformité environnementale du produit

RoHS Compliance Status
準拠 (免除なし)
REACH SVHC
No SVHC above 0.1 wt%

System specifications

Product family
OMNIMATE Signal - series BC/SC 3.81
Pitch in mm (P)
3,81 mm
Pitch in inches (P)
0,15 "
Number of poles
8
L1, inch
0,15 "
Numero di serie di poli
1
Момент затяжки
  • Тип момента затяжки:
    Винт крышки
  • Информация по использованию:
    • Момент затяжки:
      • мин.:
        0,4 Nm
      • макс.:
        0,5 Nm

Material data

Insulating material
PA 66 GF 30
Colour
black
Colour chart (similar)
RAL 9011
Grado inflamabilidad según UL 94
V-0
Matériau des contacts
Cu-ötvözet
Lagertemperatur, min.
-40 °C
Storage temperature, max.
70 °C
Operating temperature, min.
-50 °C
Operating temperature, max.
100 °C
Temperature range, installation, min.
-25 °C
Temperature range, installation, max.
100 °C

Rated data acc. to IEC

tested acc. to standard
IEC 60664-1
IEC 61984

Packing

Packaging
Box
VPE length
204 mm
VPE width
108 mm
VPE height
28 mm

Important note

IPC conformity
Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.
Notes
  • Long term storage of the product with average temperature of 50 °C and maximum humidity 70%, 36 months


Classifications

ETIM 8.0
EC002943
ETIM 9.0
EC002943
ETIM 10.0
EC002943
ECLASS 14.0
27-46-04-05
ECLASS 15.0
27-46-04-05
