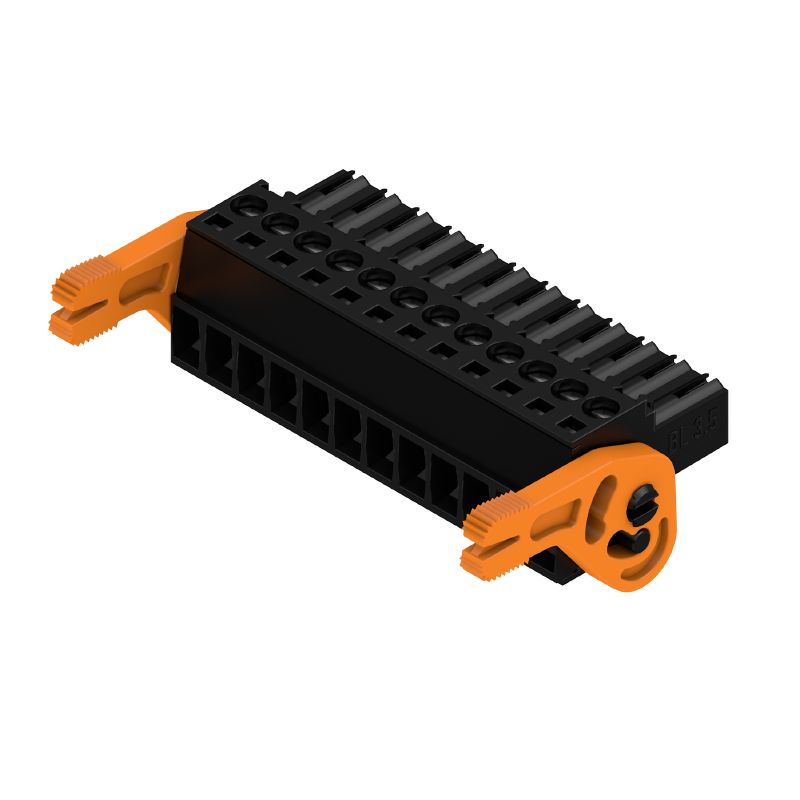

Product image
BL 3.50/12/180LH SN BK BX

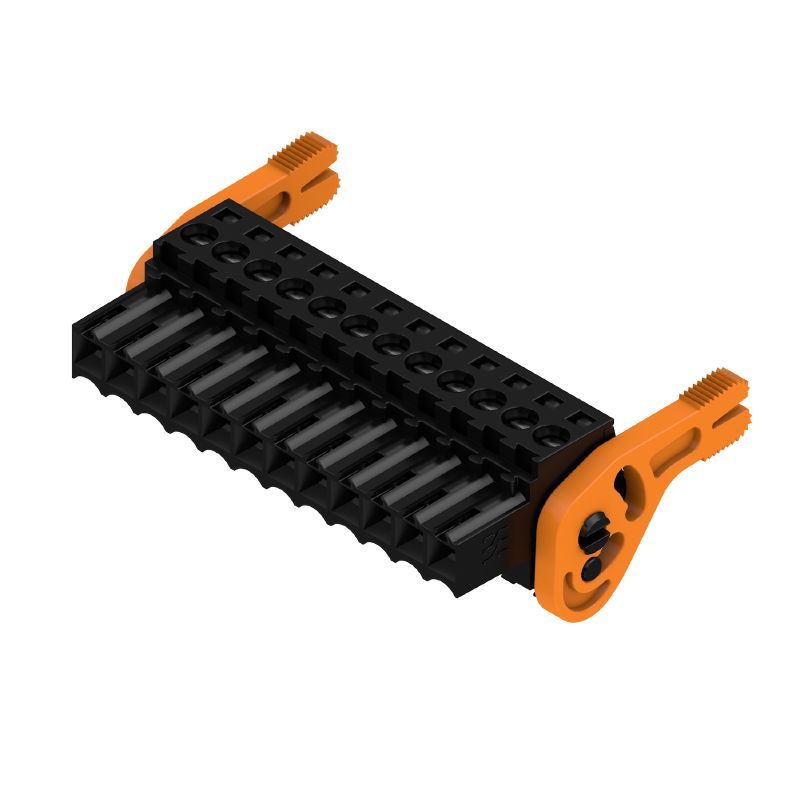

Product image
BL 3.50/12/180LH SN BK BX
Dimensional drawing
BL 3.50/12/180LH SN BK BX
Graph
BL 3.50/12/180LH SN BK BX
Graph
BL 3.50/12/180LH SN BK BX
Graph
BL 3.50/12/180LH SN BK BX
Wykres

BL 3.50/12/180LH SN BK BX

PCB plug-in connector, female plug, 3.50 mm, Number of poles: 12, 180°, Clamping yoke connection, Clamping range, max. : 1.5 mm², Box

Product ID 1687980000
Gegevensblad downloaden Engineeringondersteuning Productdownloads
Toebehoren 7 Contradelen 6 Verwante producten 24
Approvals General ordering data Dimensions and weights Environmental Product Compliance System Parameters Material data Conductors suitable for connection Rated data acc. to IEC Rated data acc. to CSA Rated data acc. to UL 1059 Packing Type tests Important note Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/70d4994d-1e1f-4a62-8b8a-96bcbd57aca3/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (UR)
E60693

General ordering data

Version
PCB plug-in connector, female plug, 3.50 mm, Number of poles: 12, 180°, Clamping yoke connection, Clamping range, max. : 1.5 mm², Box
Order No.
1687980000
Type
BL 3.50/12/180LH SN BK BX
GTIN (EAN)
4008190853532
Qty.
36 items
Product data
IEC: 320 V / 17 A / 0.2 - 1.5 mm²
UL: 300 V / 10 A / AWG 28 - AWG 14
Packaging
Box

Dimensions and weights

Depth
29,5 mm
Depth (inches)
1,161 inch
Height
14,9 mm
Height (inches)
0,587 inch
Width
48,5 mm
Width (inches)
1,909 inch
Net weight
12,32 g

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%
Product Carbon Footprint
  • Cradle to gate:
    0.25 kg CO2 eq.

System Parameters

Produktfamilj
OMNIMATE Signal - series BL/SL 3.50
Anslutningstyp
Field connection
Ledaranslutningsteknik
Clamping yoke connection
Delning i mm (P)
3,5 mm
Delning i tum (P)
0,138 "
Ledarutgångsriktning
180°
Number of poles
12
L1 i mm
38,5 mm
L1 i tum
1,516 "
Antal rader
1
Polradstal
1
Märkarea
1,5 mm²
Touch-safe protection acc. to DIN VDE 57 106
Safe from finger touch
Beröringsskydd enligt DIN VDE 0470
IP20 plugged/ IP10 unplugged
Protection degree
IP20
when fully mounted
Genomgångsmotstånd (6)
≤5 mΩ
Koderbar
Yes
Stripping length
6 mm
Clamping screw
M 2
Screwdriver blade
0.4 x 2.5
Screwdriver blade standard
DIN 5264
Plugging cycles
25
Plugging force/pole, max.
7 N
Pulling force/pole, max.
5 N
Tightening torque
  • Torque type:
    Wire connection
  • Usage information:
    • Tightening torque:
      • min.:
        0,2 Nm
      • max.:
        0,25 Nm

Material data

Insulating material
PBT
Colour
black
Colour chart (similar)
RAL 9011
Insulating material group
IIIa
Comparative Tracking Index (CTI)
≥ 200
UL 94 flammability rating
V-0
Contact material
Cu-alloy
Contact surface
tinned
Layer structure of plug contact
4...8 µm Sn hot-dip tinned
Storage temperature, min.
−40 °C
Storage temperature, max.
70 °C
Operating temperature, min.
−50 °C
Operating temperature, max.
100 °C
Temperature range, installation, min.
−30 °C
Temperature range, installation, max.
100 °C

Conductors suitable for connection

Clamping range, min.
0,08 mm²
Clamping range, max.
1,5 mm²
Wire connection cross section AWG, min.
AWG 28
Wire connection cross section AWG, max.
AWG 14
Solid, min. H05(07) V-U
0,2 mm²
单股导线的，最大值 H05(07) V-U
1,5 mm²
Flexible, min. H05(07) V-K
0,2 mm²
Flexible, max. H05(07) V-K
1,5 mm²
w. plastic collar ferrule, DIN 46228 pt 4, min.
0,2 mm²
w. plastic collar ferrule, DIN 46228 pt 4, max.
1,5 mm²
带导线管状端头，DIN 46228 部分 1，最小
0,2 mm²
w. wire end ferrule, DIN 46228 pt 1, max.
1,5 mm²
Plug gauge in accordance with EN 60999 a x b; ø
2.4 mm x 1.5 mm
Clampable conductor
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      0,5 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        8 mm
    • Recommended wire-end ferrule:
      0409500000
    • Stripping length:
      • nominal:
        6 mm
    • Recommended wire-end ferrule:
      0282600000
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      0,75 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        8 mm
    • Recommended wire-end ferrule:
      0409600000
    • Stripping length:
      • nominal:
        6 mm
    • Recommended wire-end ferrule:
      0282700000
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      1 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        8 mm
    • Recommended wire-end ferrule:
      0409700000
    • Stripping length:
      • nominal:
        6 mm
    • Recommended wire-end ferrule:
      0372600000
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      0,25 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        8 mm
    • Recommended wire-end ferrule:
      9025740000
    • Stripping length:
      • nominal:
        5 mm
    • Recommended wire-end ferrule:
      9018910000
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      0,34 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        8 mm
    • Recommended wire-end ferrule:
      9025750000
Reference text
The outside diameter of the plastic collar should not be larger than the pitch (P)
Length of ferrules is to be chosen depending on the product and the rated voltage.

Rated data acc. to IEC

tested acc. to standard
IEC 60664-1
IEC 61984
Rated current, min. number of poles (Tu=20°C)
17 A
Rated current, max. number of poles (Tu=20°C)
12 A
Rated current, min. number of poles (Tu=40°C)
14,5 A
Rated current, max. number of poles (Tu=40°C)
10 A
Rated voltage for surge voltage class / pollution degree II/2
320 V
Rated voltage for surge voltage class / pollution degree III/2
160 V
额定电压值（过电压等级III/污染等级3）
160 V
Rated impulse voltage for surge voltage class/ pollution degree II/2
320 V
额定冲击电压（过压等级III/污染等级2）
160 V
Rated impulse voltage for surge voltage class/ contamination degree III/3
160 V
Short-time withstand current resistance
3 x 1s with 100 A

Rated data acc. to CSA

Märkspänning (användargrupp B / CSA)
300 V
Märkspänning (användargrupp D / CSA)
300 V
Märkström (användargrupp B / CSA)
10 A
Märkström (användargrupp D / CSA)
10 A
Ledardiameter AWG, min.
AWG 28
Ledardiameter AWG, max.
AWG 14

Rated data acc. to UL 1059

Institut (UR)
UR
Certifikat nr. (UR)
E60693
Märkspänning (användargrupp B / UL 1059)
300 V
Märkspänning (användargrupp D / UL 1059)
300 V
Märkström (användargrupp B / UL 1059)
10 A
Märkström (användargrupp D / UL 1059)
10 A
Ledardiameter AWG, min.
AWG 28
Ledardiameter AWG, max.
AWG 14
Reference to approval values
Specifications are maximum values, details - see approval certificate.

Packing

Förpackning
Box
VPE-längd
351 mm
VPE-bredd
138 mm
VPE-höjd
28 mm

Type tests

Test: Hållfasthet för märkningar
  • Standard:
    DIN EN 61984 section 7.3.2 / 09.02 taking pattern from DIN EN 60068-2-70 / 07.96
  • Test:
    mark of origin, type identification, approval marking SEV, approval marking CSA
  • Evaluation:
    available
  • Test:
    durability
  • Evaluation:
    passed
Test: Felaktig inkoppling (ingen utbytbarhet)
  • Standard:
    DIN EN 61984 section 6.3 and 6.9.1 / 09.02, DIN IEC 60512 part 7 section 5 / 05.94
  • Test:
    180° turned with coding elements
  • Evaluation:
    passed
Test: Klämbar area
  • Standard:
    DIN EN 60999-1 section 7 and 9.1 / 12.00, DIN EN 60947-1 section 8.2.4.5.1 / 12.99
  • Conductor type:
    • Type of conductor and conductor cross-section:
      solid 0.2 mm²
    • Type of conductor and conductor cross-section:
      stranded 0.2 mm²
    • Type of conductor and conductor cross-section:
      solid 1.5 mm²
    • Type of conductor and conductor cross-section:
      stranded 1.5 mm²
    • Type of conductor and conductor cross-section:
      AWG 28/1
    • Type of conductor and conductor cross-section:
      AWG 28/19
    • Type of conductor and conductor cross-section:
      AWG 16/1
    • Type of conductor and conductor cross-section:
      AWG 16/19
  • Evaluation:
    passed
Test beträffande ledare som skadats och lossnat oavsiktligt
  • Standard:
    DIN EN 60999-1 section 9.4 / 12.00
  • Requirement:
    0.2 kg
  • Conductor type:
    • Type of conductor and conductor cross-section:
      AWG 28/1
    • Type of conductor and conductor cross-section:
      AWG 28/19
  • Evaluation:
    passed
  • Requirement:
    0.3 kg
  • Conductor type:
    • Type of conductor and conductor cross-section:
      2 × AWG 24/1
    • Type of conductor and conductor cross-section:
      2 × AWG 24/19 with wire end ferrule
  • Evaluation:
    passed
  • Requirement:
    0.4 kg
  • Conductor type:
    • Type of conductor and conductor cross-section:
      solid 1.5 mm²
    • Type of conductor and conductor cross-section:
      stranded 1.5 mm²
    • Type of conductor and conductor cross-section:
      AWG 16/7
  • Evaluation:
    passed
Frånslagstest
  • Standard:
    DIN EN 60999-1 section 9.5 / 12.00
  • Requirement:
    ≥5 N
  • Conductor type:
    • Type of conductor and conductor cross-section:
      AWG 28/1
    • Type of conductor and conductor cross-section:
      AWG 28/19
  • Evaluation:
    passed
  • Requirement:
    ≥10 N
  • Conductor type:
    • Type of conductor and conductor cross-section:
      2 × AWG 24/1
    • Type of conductor and conductor cross-section:
      2 × AWG 24/19 with wire end ferrule
  • Evaluation:
    passed
  • Requirement:
    ≥40 N
  • Conductor type:
    • Type of conductor and conductor cross-section:
      H05V-U1.5
    • Type of conductor and conductor cross-section:
      H05V-K1.5
    • Type of conductor and conductor cross-section:
      AWG 16/7
  • Evaluation:
    passed

Important note

IPC conformity
Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.
Notes
  • Additional variants on request
  • Gold-plated contact surfaces on request
  • Rated current related to rated cross-section & min. No. of poles.
  • Max. outer diameter of the conductor: 2.9 mm
  • Wire end ferrule without plastic collar to DIN 46228/1
  • Wire end ferrule with plastic collar to DIN 46228/4
  • P on drawing = pitch
  • Rated data refer only to the component itself. Clearance and creepage distances to other components are to be designed in accordance with the relevant application standards.
  • In accordance with IEC 61984, OMNIMATE-connectors are connectors without breaking capacity (COC). During designated use, connectors are not allowed to be engaged or disengaged when live or under load
  • Long term storage of the product with average temperature of 50 °C and maximum humidity 70%, 36 months
