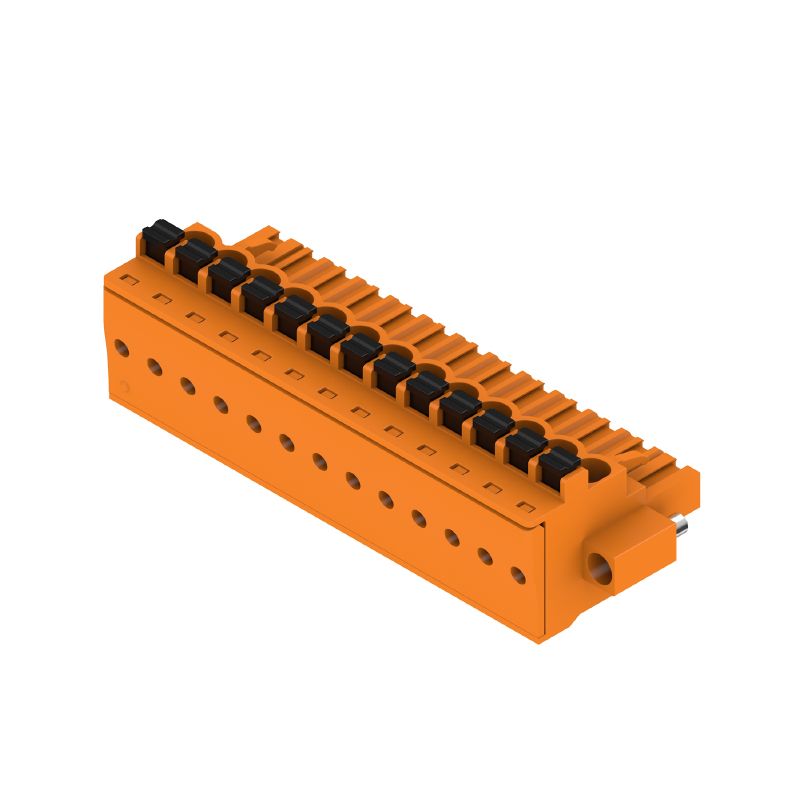

BLF 5.08HC/13/90F SN OR BX
Product image
BLF 5.08HC/13/90F SN OR BX
Product image
BLF 5.08HC/13/90F SN OR BX
Dimensional drawing
BLF 5.08HC/13/90F SN OR BX
Graph
BLF 5.08HC/13/90F SN OR BX
Graph
BLF 5.08HC/13/90F SN OR BX
Product benefits
Uncompromising functionality
High vibration resistance
BLF 5.08HC/13/90F SN OR BX
Product benefits
Solid PUSH IN contact
Safe and durable
BLF 5.08HC/13/90F SN OR BX
Product benefits
Cost-effective wiring
Quick and intuitive operation
BLF 5.08HC/13/90F SN OR BX
Product benefits
Wide clamping range
Tool-free wire connection

BLF 5.08HC/13/90F SN OR BX

PCB plug-in connector, female plug, 5.08 mm, Number of poles: 13, 90°, PUSH IN with actuator, Clamping range, max. : 3.31 mm², Box

Tuotteen tunnus 1002200000
Lataa tietosivu Engineering Support Product Downloads
Lisävarusteet 4 On lisävaruste 20 Vastineet 17 Samankaltaiset tuotteet 28
Approvals General ordering data Dimensions and weights Environmental Product Compliance System Parameters Material data Conductors suitable for connection Rated data acc. to IEC Rated data acc. to CSA Rated data acc. to UL 1059 Packing Type tests Important note Classifications

Approvals

Schválení
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319226/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319230/-S800/-T1z1mm-S80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (cURus)
E60693

General ordering data

Verze
PCB plug-in connector, female plug, 5.08 mm, Number of poles: 13, 90°, PUSH IN with actuator, Clamping range, max. : 3.31 mm², Box
Číslo objednávky
1002200000
Typ
BLF 5.08HC/13/90F SN OR BX
GTIN (EAN)
4032248694358
Qty.
24 items
Product data
IEC: 400 V / 24 A / 0.2 - 2.5 mm²
UL: 300 V / 18.5 A / AWG 26 - AWG 12
Packaging
Box

Dimensions and weights

Hloubka
26,2 mm
Depth (inches)
1,031 inch
Výška
20,6 mm
Height (inches)
0,811 inch
Šířka
75,84 mm
Width (inches)
2,986 inch
Čistá hmotnost
30,25 g

Environmental Product Compliance

Stav souladu se směrnicí RoHS
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%
Product Carbon Footprint
  • Cradle to gate:
    0,844 kg CO2 eq.

System Parameters

Product family
OMNIMATE Signal - series BL/SL 5.08
Type of connection
Field connection
Wire connection method
PUSH IN with actuator
Pitch in mm (P)
5,08 mm
Pitch in inches (P)
0,2 "
Conductor outlet direction
90°
Number of poles
13
L1 in mm
60,96 mm
L1 in inches
2,4 "
Počet řad
1
Pin series quantity
1
Rated cross-section
2,5 mm²
Touch-safe protection acc. to DIN VDE 57 106
Safe from finger touch
Touch-safe protection acc. to DIN VDE 0470
IP20 plugged/ IP10 unplugged
Protection degree
IP20
Volume resistance
≤5 mΩ
Can be coded
Yes
Stripping length
10 mm
Screwdriver blade
0.6 x 3.5
Screwdriver blade standard
DIN 5264
Plugging cycles
25
Plugging force/pole, max.
7 N
Pulling force/pole, max.
5,5 N
Tightening torque
  • Torque type:
    Screw flange
  • Usage information:
    • Tightening torque:
      • min.:
        0,2 Nm
      • max.:
        0,25 Nm

Material data

Izolační materiál
PBT
Colour
orange
Farbtabelle (ähnlich)
RAL 2000
Insulating material group
IIIa
CTI (Comparative Tracking Index)
≥ 200
UL 94 flammability rating
V-0
Contact material
Cu-alloy
Surface du contact
tinned
Layer structure of plug contact
4...8 µm Sn hot-dip tinned
Storage temperature, min.
−40 °C
Storage temperature, max.
70 °C
Operating temperature, min.
−50 °C
Operating temperature, max.
100 °C
Temperature range, installation, min.
−30 °C
Temperature range, installation, max.
100 °C

Conductors suitable for connection

Upínací rozsah, min.
0,13 mm²
3,31 mm²
Wire connection cross section AWG, min.
AWG 26
Průřez propojení AWG, max.
AWG 12
Solid, min. H05(07) V-U
0,2 mm²
Solid, max. H05(07) V-U
2,5 mm²
fintrådig, min. H05(07) V-K
0,2 mm²
Flexible, max. H05(07) V-K
2,5 mm²
dutinkou s plastovým límcem, , DIN 46228 pt 4, min.
0,25 mm²
con terminale AEH con collare DIN 46 228/4, max.
2,5 mm²
w. wire end ferrule, DIN 46228 pt 1, min.
0,25 mm²
w. wire end ferrule, DIN 46228 pt 1, max.
2,5 mm²
Plug gauge in accordance with EN 60999 a x b; ø
2.8 mm x 2.0 mm
Clampable conductor
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      0,5 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        12 mm
    • Recommended wire-end ferrule:
      9025870000
    • Stripping length:
      • nominal:
        10 mm
    • Recommended wire-end ferrule:
      9004050000
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      0,75 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        12 mm
    • Recommended wire-end ferrule:
      9025860000
    • Stripping length:
      • nominal:
        10 mm
    • Recommended wire-end ferrule:
      0542500000
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      1 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        12 mm
    • Recommended wire-end ferrule:
      9019100000
    • Stripping length:
      • nominal:
        10 mm
    • Recommended wire-end ferrule:
      0282800000
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      1,5 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        10 mm
    • Recommended wire-end ferrule:
      0186500000
    • Stripping length:
      • nominal:
        12 mm
    • Recommended wire-end ferrule:
      0635100000
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      2,5 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        10 mm
    • Recommended wire-end ferrule:
      9004080000
    • Stripping length:
      • nominal:
        13 mm
    • Recommended wire-end ferrule:
      9036220000
Reference text
The outside diameter of the plastic collar should not be larger than the pitch (P)
Length of ferrules is to be chosen depending on the product and the rated voltage.

Rated data acc. to IEC

tested acc. to standard
IEC 60664-1
IEC 61984
Rated current, min. number of poles (Tu=20°C)
24 A
Rated current, max. number of poles (Tu=20°C)
19 A
Rated current, min. number of poles (Tu=40°C)
21 A
Rated current, max. number of poles (Tu=40°C)
16,5 A
napięcie znamionowe przy kat. przepięć/stopniu zanieczyszczenia II/2
400 V
Rated voltage for surge voltage class / pollution degree III/2
320 V
Rated voltage for surge voltage class / pollution degree III/3
250 V
Tensione di dimensionamento con classe di sovratensione/grado di lordura II/2
4 kV
Rated impulse voltage for surge voltage class/ pollution degree III/2
4 kV
Névleges lökőfeszültség a III/3 túlfeszültség osztályhoz / szennyeződés mértékéhez
4 kV
Resistencia a corrientes de corta duración
3 x 1s with 120 A

Rated data acc. to CSA

Institute (CSA)
CSA
Certificate No. (CSA)
200039-1121690
Rated voltage (Use group B / CSA)
300 V
Rated voltage (Use group D / CSA)
300 V
Rated current (Use group B / CSA)
10 A
Jmenovitý proud (aplikační skupina D / CSA)
10 A
Wire cross-section, AWG, min.
AWG 12
Wire cross-section, AWG, max.
AWG 26
Odkaz na hodnoty pro schválení
Specifications are maximum values, details - see approval certificate.

Rated data acc. to UL 1059

Institute (cURus)
CURUS
Certificate No. (cURus)
E60693
Rated voltage (Use group B / UL 1059)
300 V
Rated voltage (Use group D / UL 1059)
300 V
Rated current (Use group B / UL 1059)
18,5 A
Rated current (Use group D / UL 1059)
10 A
Wire cross-section, AWG, min.
AWG 26
Wire cross-section, AWG, max.
AWG 12
Odkaz na hodnoty pro schválení
Specifications are maximum values, details - see approval certificate.

Packing

Packaging
Box
VPE length
350 mm
VPE width
135 mm
VPE height
30 mm

Type tests

Test: Durability of markings
  • Standard:
    DIN EN 61984 section 7.3.2 / 09.02 taking pattern from DIN EN 60068-2-70 / 07.96
  • Test:
    mark of origin, type identification, pitch, type of material, date clock
  • Evaluation:
    available
  • Test:
    durability
  • Evaluation:
    passed
Test: Misengagement (Non-interchangeability)
  • Standard:
    DIN EN 61984 section 6.3 and 6.9.1 / 09.02, DIN EN 60512-13-5 / 11.08
  • Test:
    180° turned with coding elements
  • Evaluation:
    passed
  • Test:
    visual examination
  • Evaluation:
    passed
Test: Clampable cross section
  • Standard:
    DIN EN 60999-1 section 7 and 9.1 / 12.00, DIN EN 60947-1 section 8.2.4.5.1 / 04.08
  • Conductor type:
    • Type of conductor and conductor cross-section:
      solid 0.2 mm²
    • Type of conductor and conductor cross-section:
      stranded 0.2 mm²
    • Type of conductor and conductor cross-section:
      solid 2.5 mm²
    • Type of conductor and conductor cross-section:
      stranded 2.5 mm²
    • Type of conductor and conductor cross-section:
      AWG 26/1
    • Type of conductor and conductor cross-section:
      AWG 26/19
    • Type of conductor and conductor cross-section:
      AWG 14/1
    • Type of conductor and conductor cross-section:
      AWG 14/19
  • Evaluation:
    passed
Test for damage to and accidental loosening of conductors
  • Standard:
    DIN EN 60999-1 section 9.4 / 12.00
  • Requirement:
    0.2 kg
  • Conductor type:
    • Type of conductor and conductor cross-section:
      AWG 26/1
    • Type of conductor and conductor cross-section:
      AWG 26/19
  • Evaluation:
    passed
  • Requirement:
    0.3 kg
  • Conductor type:
    • Type of conductor and conductor cross-section:
      H05V-U0.5
    • Type of conductor and conductor cross-section:
      H05V-K0.5
  • Evaluation:
    passed
  • Requirement:
    0.7 kg
  • Conductor type:
    • Type of conductor and conductor cross-section:
      H07V-U2.5
    • Type of conductor and conductor cross-section:
      H07V-K2.5
  • Evaluation:
    passed
  • Requirement:
    0.9 kg
  • Conductor type:
    • Type of conductor and conductor cross-section:
      AWG 12/1
    • Type of conductor and conductor cross-section:
      AWG 12/19
  • Evaluation:
    passed
Pull-out test
  • Standard:
    DIN EN 60999-1 section 9.5 / 12.00
  • Requirement:
    ≥10 N
  • Conductor type:
    • Type of conductor and conductor cross-section:
      AWG 26/1
    • Type of conductor and conductor cross-section:
      AWG 26/19
  • Evaluation:
    passed
  • Requirement:
    ≥20 N
  • Conductor type:
    • Type of conductor and conductor cross-section:
      H05V-U0.5
    • Type of conductor and conductor cross-section:
      H05V-K0.5
  • Evaluation:
    passed
  • Requirement:
    ≥50 N
  • Conductor type:
    • Type of conductor and conductor cross-section:
      H07V-U2.5
    • Type of conductor and conductor cross-section:
      H07V-K2.5
  • Evaluation:
    passed
  • Requirement:
    ≥60 N
  • Conductor type:
    • Type of conductor and conductor cross-section:
      AWG 12/1
    • Type of conductor and conductor cross-section:
      AWG 12/19
  • Evaluation:
    passed

Important note

IPC shoda
Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.
Poznámky
  • Additional variants on request
  • Gold-plated contact surfaces on request
  • Rated current related to rated cross-section & min. No. of poles.
  • Wire end ferrule without plastic collar to DIN 46228/1
  • Wire end ferrule with plastic collar to DIN 46228/4
  • P on drawing = pitch
  • Crimping shape "A" for wire end ferrules with PZ 6/5 crimping tool recommended.
  • The test point can only be used as potential-pickup point.
  • In accordance with IEC 61984, OMNIMATE-connectors are connectors without breaking capacity (COC). During designated use, connectors are not allowed to be engaged or disengaged when live or under load
  • Long term storage of the product with average temperature of 50 °C and maximum humidity 70%, 36 months


Classifications

ETIM 8.0
EC002638
ETIM 9.0
EC002638
ETIM 10.0
EC002638
ECLASS 14.0
27-46-02-02
ECLASS 15.0
27-46-02-02
