BLZP 5.08HC/10/180F SN OR BX

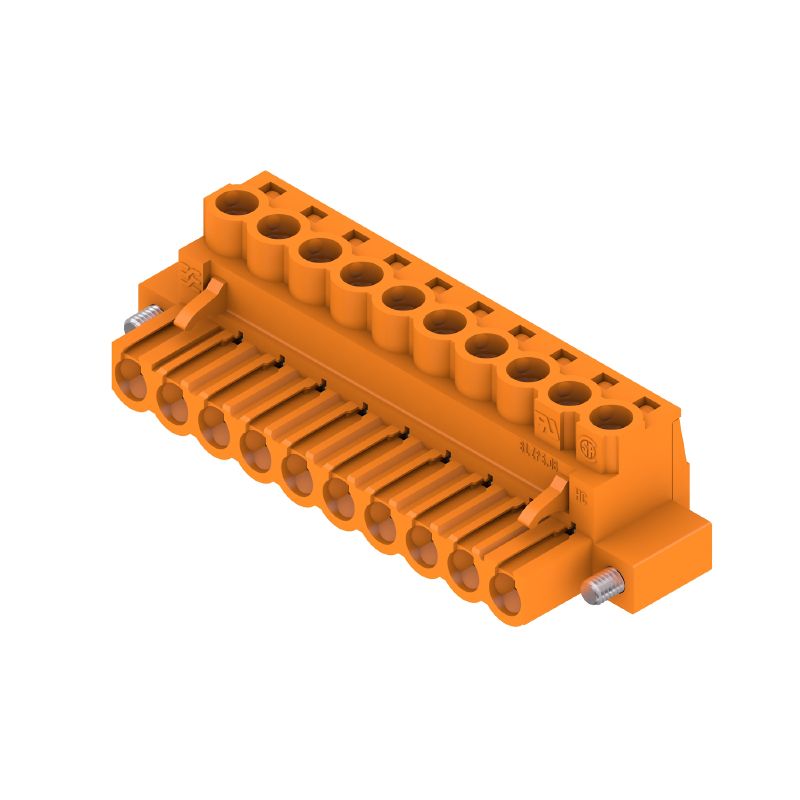

Product image
BLZP 5.08HC/10/180F SN OR BX
Product image
BLZP 5.08HC/10/180F SN OR BX
Dimensional drawing
BLZP 5.08HC/10/180F SN OR BX
Graph

BLZP 5.08HC/10/180F SN OR BX

PCB plug-in connector, female plug, 5.08 mm, Number of poles: 10, 180°, Clamping yoke connection, Clamping range, max. : 4 mm², Box

Tuotteen tunnus 1944170000
Lataa tietosivu Tekninen tuki Tuotelataukset
Lisävarusteet 6 Vastineet 17 Samankaltaiset tuotteet 35
Approvals General ordering data Dimensions and weights Environmental Product Compliance System Parameters Material data Conductors suitable for connection Rated data acc. to IEC Rated data acc. to CSA Rated data acc. to UL 1059 Packing Type tests Important note Classifications

Approvals

Agréments
![](https://assets.dam.weidmueller.com/assets/api/7849a070-6e16-4866-9b5a-c610b7f622e5/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/33feeb02-46e9-4a14-9d79-8ec5ee409fe3/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/70d4994d-1e1f-4a62-8b8a-96bcbd57aca3/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificat Nº (UR)
E60693
証明書番号（cURus）
E60693

General ordering data

Version
PCB plug-in connector, female plug, 5.08 mm, Number of poles: 10, 180°, Clamping yoke connection, Clamping range, max. : 4 mm², Box
Référence
1944170000
Type
BLZP 5.08HC/10/180F SN OR BX
GTIN (EAN)
4032248618750
Qté.
30 items
Product data
IEC: 400 V / 23 A / 0.2 - 4 mm²
UL: 300 V / 20 A / AWG 26 - AWG 12
Packaging
Box

Dimensions and weights

Profondeur
20 mm
깊이 (인치)
0.787 inch
Hauteur
16.1 mm
Height (inches)
0.634 inch
Largeur
60.6 mm
Width (inches)
2.386 inch
Poids net
17.95 g

Environmental Product Compliance

Statut de conformité RoHS
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%
Empreinte carbone du produit
  • Cradle to gate:
    0.326 kg CO2 eq.

System Parameters

Familia del producto
OMNIMATE Signal - series BL/SL 5.08
Tipo de conexión
Field connection
Técnica de conexión de conductores
Clamping yoke connection
Paso en mm (P)
5.08 mm
Pitch in inches (P)
0.2 "
Conductor outlet direction
180°
Número de polos
10
L1 en mm
45.72 mm
L1 en pulgadas
1.8 "
Nombre de séries
1
Número de filas de polos
1
Sección nominal
4 mm²
Protezione da contatto accidentale DIN VDE 57 106
Safe from finger touch
Protección contra contacto según DIN VDE 0470
IP20 plugged/ IP10 unplugged
Protection degree
IP20
Resistencia de paso
≤5 mΩ
Codificable
Yes
Lunghezza di spellatura
7 mm
Clamping screw
M 2.5
Screwdriver blade
0.6 x 3.5
PH 1
PZ 1
Screwdriver blade standard
DIN 5264
ISO 8764/2-PH
ISO 8764/2-PZ
Plugging cycles
25
Plugging force/pole, max.
10 N
Pulling force/pole, max.
9 N
Tightening torque
  • Torque type:
    Wire connection
  • Usage information:
    • Tightening torque:
      • min.:
        0.4 Nm
      • max.:
        0.5 Nm
  • Torque type:
    Screw flange
  • Usage information:
    • Tightening torque:
      • min.:
        0.2 Nm
      • max.:
        0.25 Nm

Material data

Matériau isolant
PBT
Couleur
orange
Tableau des couleurs (similaire)
RAL 2000
Groupe de matériaux isolants
IIIa
Indice de Poursuite Comparatif (CTI)
≥ 200
UL 94 flammability rating
V-0
Matériau des contacts
Cu-alloy
Surface du contact
tinned
Structure en couches du contact mâle
4...8 µm Sn hot-dip tinned
Storage temperature, min.
-40 °C
Storage temperature, max.
70 °C
Operating temperature, min.
-50 °C
Operating temperature, max.
100 °C
Temperature range, installation, min.
-25 °C
Temperature range, installation, max.
100 °C

Conductors suitable for connection

Plage de serrage, min.
0.13 mm²
Plage de serrage, max.
4 mm²
Section de raccordement du conducteur, AWG, min.
AWG 30
Section de raccordement du conducteur, AWG, max.
AWG 12
Rigide, min. H05(07) V-U
0.2 mm²
Rigide, max. H05(07) V-U
4 mm²
souple, min. H05(07) V-K
0.2 mm²
souple, max. H05(07) V-K
4 mm²
avec embout isolé DIN 46 228/4, min.
0.2 mm²
avec embout isolé DIN 46 228/4, max.
2.5 mm²
érvéghüvellyel, DIN 46228 1. pont, min.
0.2 mm²
avec embout selon DIN 46 228/1, max.
4 mm²
Illesztőcsap az EN 60999 szerint a x b; ø
2.8 mm x 2.4 mm
Clampable conductor
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      0.5 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        6 mm
    • Recommended wire-end ferrule:
      0282600000
    • Stripping length:
      • nominal:
        8 mm
    • Recommended wire-end ferrule:
      0409500000
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      1 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        6 mm
    • Recommended wire-end ferrule:
      0372600000
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      1.5 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        7 mm
    • Recommended wire-end ferrule:
      0372700000
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      2.5 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        7 mm
    • Recommended wire-end ferrule:
      0373000000
    • Stripping length:
      • nominal:
        10 mm
    • Recommended wire-end ferrule:
      9019160000
Texte de réference
The outside diameter of the plastic collar should not be larger than the pitch (P)
Length of ferrules is to be chosen depending on the product and the rated voltage.

Rated data acc. to IEC

tested acc. to standard
IEC 60664-1
IEC 61984
Courant nominal, nombre de pôles min. (Tu = 20 °C)
23 A
Courant nominal, nombre de pôles max. (Tu = 20 °C)
18 A
Courant nominal, nombre de pôles min. (Tu = 40 °C)
21 A
Courant nominal, nombre de pôles max. (Tu = 40 °C)
16 A
Tension de choc nominale pour classe de surtension/Degré de pollution II/2
400 V
Tension de choc nominale pour classe de surtension/Degré de pollution III/2
320 V
Tension de choc nominale pour classe de surtension/Degré de pollution III/3
250 V
Tension de choc nominale pour classe de surtension/Degré de pollution II/2
4,000 V
Névleges lökőfeszültség a III/2 túlfeszültség osztályhoz / szennyezés mértékéhez
4 kV
Tension de choc nominale pour classe de surtension/Degré de pollution III/3
4 kV
Tenue aux courants de faible durée
3 x 1s with 120 A

Rated data acc. to CSA

Instituto (CSA)
CSA
Núm. de certificación (CSA)
200039-1121690
Tensión nominal (Use Group B / CSA)
300 V
Tensión nominal (Use Group C / CSA)
50 V
Tensión nominal (Use group D / CSA)
300 V
Intensidad nominal (Use Group B / CSA)
20 A
Courant nominal (groupe d'utilisation D / CSA)
20 A
Sección de conexión del conductor AWG, mín.
AWG 30
Sección de conexión del conductor AWG, máx.
AWG 12
Référence aux valeurs approuvées
Specifications are maximum values, details - see approval certificate.

Rated data acc. to UL 1059

Instituto (UR)
UR
Núm. de certificación (UR)
E60693
Instituto (cURus)
CURUS
Núm. de certificación (cURus)
E60693
Tensión nominal (Use Group B / UL 1059)
300 V
Tensión nominal (Use Group D / UL 1059)
300 V
Intensidad nominal (Use Group B / UL 1059)
20 A
Intensidad nominal (Use Group D / UL 1059)
10 A
Sección de conexión del conductor AWG, mín.
AWG 26
Sección de conexión del conductor AWG, máx.
AWG 12
Référence aux valeurs approuvées
Specifications are maximum values, details - see approval certificate.

Packing

Embalaje
Box
Longitud de VPE
349 mm
Anchura VPE
136 mm
Altura de VPE
31 mm

Type tests

Prueba: durabilidad de los marcajes
  • Standard:
    DIN EN 61984 section 7.3.2 / 09.02 taking pattern from DIN EN 60068-2-70 / 07.96
  • Test:
    mark of origin, rated voltage, rated cross-section, type of material
  • Evaluation:
    available
  • Test:
    durability
  • Evaluation:
    passed
Prueba: error de acoplamiento (no intercambiable)
  • Standard:
    DIN EN 60512-13-5 / 11.06, IEC 60512-13-5 / 02.06
  • Test:
    180° turned with coding elements
  • Evaluation:
    passed
  • Test:
    visual examination
  • Evaluation:
    passed
Prueba: sección ajustable
  • Standard:
    DIN EN 60999-1 section 7 and 9.1 / 12.00, DIN EN 60947-1 section 8.2.4.5.1 / 12.02
  • Conductor type:
    • Type of conductor and conductor cross-section:
      solid 0.2 mm²
    • Type of conductor and conductor cross-section:
      stranded 0.2 mm²
    • Type of conductor and conductor cross-section:
      solid 2.5 mm²
    • Type of conductor and conductor cross-section:
      stranded 2.5 mm²
    • Type of conductor and conductor cross-section:
      AWG 26/1
    • Type of conductor and conductor cross-section:
      AWG 26/19
  • Evaluation:
    passed
Prueba de daños y liberación accidental de conductores
  • Standard:
    DIN EN 60999-1 section 9.4 / 12.00
  • Requirement:
    0.2 kg
  • Conductor type:
    • Type of conductor and conductor cross-section:
      AWG 26/1
    • Type of conductor and conductor cross-section:
      AWG 26/19
  • Evaluation:
    passed
  • Requirement:
    0.3 kg
  • Conductor type:
    • Type of conductor and conductor cross-section:
      solid 0.5 mm²
    • Type of conductor and conductor cross-section:
      stranded 0.5 mm²
  • Evaluation:
    passed
  • Requirement:
    0.9 kg
  • Conductor type:
    • Type of conductor and conductor cross-section:
      AWG 12/1
    • Type of conductor and conductor cross-section:
      AWG 12/19
  • Evaluation:
    passed
Prueba de extracción
  • Standard:
    DIN EN 60999-1 section 9.5 / 12.00
  • Requirement:
    ≥10 N
  • Conductor type:
    • Type of conductor and conductor cross-section:
      AWG 26/1
    • Type of conductor and conductor cross-section:
      AWG 26/19
  • Evaluation:
    passed
  • Requirement:
    ≥20 N
  • Conductor type:
    • Type of conductor and conductor cross-section:
      H05V-U0.5
    • Type of conductor and conductor cross-section:
      H05V-K0.5
  • Evaluation:
    passed
  • Requirement:
    ≥60 N
  • Conductor type:
    • Type of conductor and conductor cross-section:
      H07V-U4.0
    • Type of conductor and conductor cross-section:
      H07V-K4.0
    • Type of conductor and conductor cross-section:
      AWG 12/1
    • Type of conductor and conductor cross-section:
      AWG 12/19
  • Evaluation:
    passed

Important note

Conformité IPC
Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.
Remarques
  • Additional variants on request
  • Gold-plated contact surfaces on request
  • Rated current related to rated cross-section & min. No. of poles.
  • Wire end ferrule without plastic collar to DIN 46228/1
  • Wire end ferrule with plastic collar to DIN 46228/4
  • P on drawing = pitch
  • Rated data refer only to the component itself. Clearance and creepage distances to other components are to be designed in accordance with the relevant application standards.
  • In accordance with IEC 61984, OMNIMATE-connectors are connectors without breaking capacity (COC). During designated use, connectors are not allowed to be engaged or disengaged when live or under load
  • Long term storage of the product with average temperature of 50 °C and maximum humidity 70%, 36 months


Classifications

ETIM 8.0
EC002638
ETIM 9.0
EC002638
ETIM 10.0
EC002638
ECLASS 14.0
27-46-02-02
ECLASS 15.0
27-46-02-02
