Özellikler

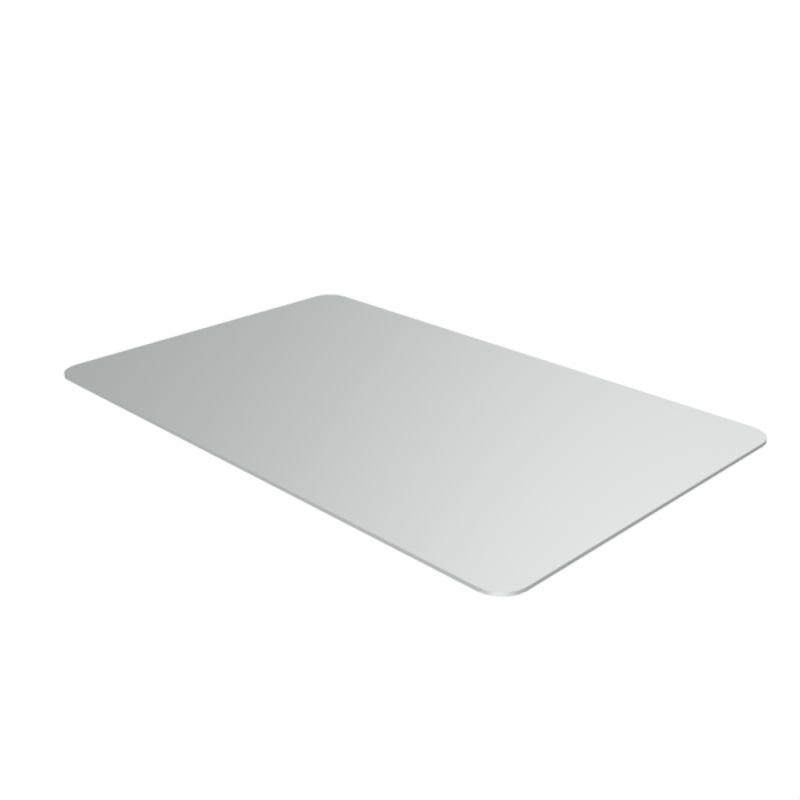

| Version | MetalliCard, Device markers, 54 x 85 mm, silver |
| Order No. | 1327600000 |
| Type | CC-M 85/54 AL |
| GTIN (EAN) | 4050118132502 |
| Qty. | 40 adet |
| Depth | 0,5 mm |
| Depth (inches) | 0,02 inch |
| Height | 54 mm |
| Height (inches) | 2,126 inch |
| Width | 85 mm |
| Width (inches) | 3,346 inch |
| Net weight | 6,1 g |
| Operating temperature range | -55...130 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Colour | silver |
| Material |
Chrome coated aluminium (AL)
Anodized aluminium |
| Number of markers per combination | 1 MetalliCard = Device markers |
| Number of markers per packaging unit |
|
| Operating temperature range | -55...130 °C |
| Operating temperature range, max. | 130 °C |
| Operating temperature range, min. | -55 °C |
| Recommended industries |
Energy
Process |
| Size of labelling field | 83.8 x 52.4 mm |
| Width | 85 mm |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_61216) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1327600000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1327600000) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC001288 |
| ETIM 7.0 | EC001288 |
| ETIM 8.0 | EC001288 |
| ETIM 9.0 | EC001288 |
| ECLASS 9.0 | 27-40-06-29 |
| ECLASS 9.1 | 27-40-06-29 |
| ECLASS 10.0 | 27-40-06-29 |
| ECLASS 11.0 | 27-28-11-04 |
| ECLASS 12.0 | 27-28-11-04 |
| ECLASS 13.0 | 27-28-11-04 |
| ECLASS 14.0 | 27-28-11-04 |
| ROHS | Conform |
