Özellikler

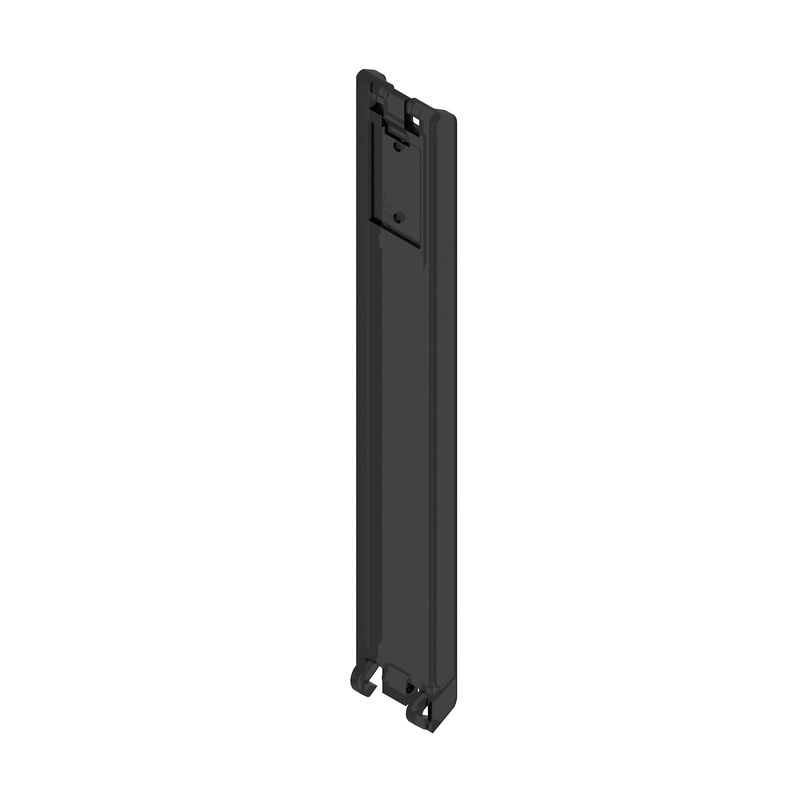

| Version | Modular housing, OMNIMATE Housing - series CH20M black, Transparent, Flip cover, Width: 12.5 mm |
| Order No. | 1104240000 |
| Type | CH20M12 C BK 1819 |
| GTIN (EAN) | 4032248878833 |
| Qty. | 70 adet |
| Depth | 6 mm |
| Depth (inches) | 0,236 inch |
| Height | 86,3 mm |
| Height (inches) | 3,398 inch |
| Width | 12,5 mm |
| Width (inches) | 0,492 inch |
| Net weight | 2,54 g |
| Ambient temperature | -25 °C…85 °C |
| Operating temperature range | -40 °C...120 °C |
| Humidity | 5 - 93% rel. humidity, Tu = 40°C, no condensation |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Comparative Tracking Index (CTI) | 175 ≤ CTI <400 |
| Insulating material | PC |
| Insulating material group | IIIa |
| Material | Plastic |
| Surface finish | untreated |
| UL 94 flammability rating | V-2 |
| Colour |
black
Transparent |
| Colour chart (similar) |
RAL 9011
- |
| Encapsulation option | No |
| Protection degree | IP20 in installed state |
| Marker integrateable | Yes |
| Safety lock | sealable |
| Alternitive colours | More on request |
| Customer specific cutouts possible | No |
| Customer specific labelling possible | Yes |
| Customer specific order process | See guideline under downloads |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_211570) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1104240000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1104240000) |
| User Documentation |
[Guideline customerspecific housings CH20M12-67](https://mdcop.weidmueller.com/mediadelivery/asset/900_177964)
[Guideline kundenspezifische Gehäuse CH20M12-67](https://mdcop.weidmueller.com/mediadelivery/asset/900_177965) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| Brochures |
[FL ANALO.SIGN.CONV. EN](http://download.weidmueller.com/asset/download/file/38237)
[MB DEVICE MANUF. EN](http://download.weidmueller.com/asset/download/file/38257) [FL MACHINE SAFETY EN](http://download.weidmueller.com/asset/download/file/38228) [FL 72H SAMPLE SER EN](http://download.weidmueller.com/asset/download/file/38294) [PO OMNIMATE EN](http://download.weidmueller.com/asset/download/file/38132) [PO OMNIMATE EN](http://download.weidmueller.com/asset/download/file/38132) |
| ETIM 7.0 | EC001031 |
| ETIM 8.0 | EC001031 |
| ETIM 9.0 | EC001031 |
| ECLASS 11.0 | 27-18-27-92 |
| ECLASS 12.0 | 27-18-27-92 |
| ECLASS 13.0 | 27-19-06-03 |
| ECLASS 14.0 | 27-19-06-03 |
| ROHS | Conform |
Aksesuarlar
-
Ürün No.:1038860000Ambalaj birimi:1 adet
ESG, Device markers x 13.5 mm, PA 66, Colour: To customer specification
-
Ürün No.:1912130000Ambalaj birimi:5 adet
ESG, Device markers x 13.5 mm, PA 66, Colour: Transparent
Şunun karşı parçasıdır
-
Ürün No.:1104190000Ambalaj birimi:70 adet
Front element, OMNIMATE Housing - series CH20M black, Front element, including preperation for flip cover, Width: 12.5 mm
-
Ürün No.:2554760000Ambalaj birimi:70 adet
Front element, OMNIMATE Housing - series CH20M Agate grey, Front element, including preperation for flip cover, Width: 12.5 mm
-
Ürün No.:1294350000Ambalaj birimi:70 adet
Front element, OMNIMATE Housing - series CH20M Light Grey, Front element, including preperation for flip cover, Width: 12.5 mm
İlgili ürünler
-
Ürün No.:1104180000Ambalaj birimi:14 adet
Modular housing, OMNIMATE Housing - series CH20M black, Base element, Width: 12.5 mm
Münferit parçaları
-
Ürün No.:1167190000Ambalaj birimi:1 adet
Electronics housing sample, OMNIMATE Housing - series CH20M black, Sample kit for developers, consisting of individual parts incl. female plug, unmounted, Enclosure set, Connection technology, Width: 12.5 mm
-
Ürün No.:1111630000Ambalaj birimi:1 adet
Electronics housing sample, OMNIMATE Housing - series CH20M black, Reference product CH20M12 housing, completely mounted, including 4 socket connectors, mounted, Enclosure set, Connection technology, Width: 12.5 mm
