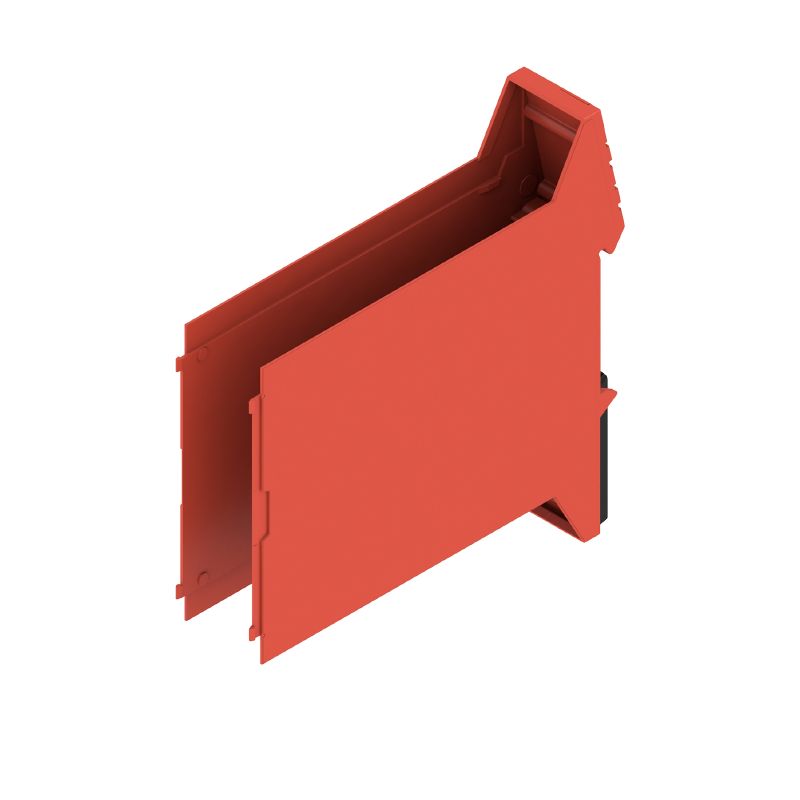

Modular housing, OMNIMATE Housing - series CH20M red, Base element, Width: 22.5 mm

Item No. 1206870000
Open in Configurator
Download data sheet Engineering Support Product Downloads
Related products 7
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Material data General data Assembly properties Mechanical tests Thermal tests Component properties Design - IN requirements Individualization options Important note Classifications

Approvals

ROHS
Conform

General ordering data

버전
Modular housing, OMNIMATE Housing - series CH20M red, Base element, Width: 22.5 mm
Заказ №
1206870000
Typ
CH20M22 B RD/BK 2014
GTIN (EAN)
4032248988761
Qty.
10 items

Dimensions and weights

Profondità
108 mm
Depth (inches)
4,252 inch
Wysokość
109,3 mm
Height (inches)
4,303 inch
Width
22,5 mm
Width (inches)
0,886 inch
Net weight
33,48 g

Temperatures

Ambient temperature
-25 °C…85 °C
Operating temperature range
-40...120 ℃
Humidity
5 - 93% rel. humidity, Tu = 40°C, no condensation

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Material data

Basic material
Plastic
Comparative Tracking Index (CTI)
600 ≤ CTI
Insulating material
PA 66 GF 30
Insulating material group
I
Surface finish
untreated
UL 94 flammability rating
V-0

General data

Colour
red
Colour chart (similar)
RAL 3020
Encapsulation option
No
Mounting rail
TS 35
Protection degree
IP20 in installed state

Assembly properties

Number of slots for female connectors of the mounted assembly, max.
6
Number of PCBs, max.
1
Number of connection levels, max.
3
Number of poles, max.
24
Height of components on the PCB, max.
16,1 mm
Type of assembly of the PCB
double-sided

Mechanical tests

According to Standard
DIN EN 61373:1999 (shock and vibration)
Test conditions
five housings installed in a row
200g additional weight on the PCB
Proved axles
X
Y
Z
Shock test
  • General test advices:
    All mechanical tests were tested on examplary setup, or in view of depending regulation. The specified results do not replace approval relevant tests. They are just orientation values.
  • Test category:
    1
  • Number of shocks per axle:
    3 in positive and negative direction
  • Shock duration:
    30 ms
  • Acceleration horizontal:
    30 m/s²
  • Acceleration vertical:
    30 m/s²
  • Acceleration longitudinal:
    50 m/s²
Vibration test
  • Test category:
    1B
  • Test duration:
    5 hours per axle
  • Effective acceleration:
    7,9 m/s²

Thermal tests

Thermal tests
  • General test advices:
    All thermal tests were tested on examplary setup, or in view of depending regulation. The specified results do not replace approval relevant tests. They are just orientation values.
  • Test conditions:
    three housings installed in a row - no spacing
  • Test axles:
    horizontal
  • Ambient temperature:
    70 °C
  • Power dissapation, max.:
    1,9 W
  • Ambient temperature:
    60 °C
  • Power dissapation, max.:
    2,35 W
  • Ambient temperature:
    40 °C
  • Power dissapation, max.:
    3,4 W
  • Ambient temperature:
    20 °C
  • Power dissapation, max.:
    4,5 W

Component properties

Color of clip-on foot
black
Number of connection levels, max.
3

Design - IN requirements

Epaisseur du circuit imprimé
1,6 mm
Tolerance for the PCB shape
±0.1 mm
Áramköri lap vastagságának tűrése
±0.15 mm

Individualization options

Bearbeitungsmöglichkeiten
Laser processing
Colores alternativos
More on request
Customer specific labelling possible
Yes
Proces objednávky specifický pro zákazníka
See guideline under downloads

Important note

Product information
Circuit board contour, restricted zones, and other information for the design in of the circuit board can be found in the category connection technology under the corresponding male headers in the downloads.

Classifications

ETIM 8.0
EC001031
ETIM 9.0
EC001031
ETIM 10.0
EC001031
ECLASS 14.0
27-19-06-01
ECLASS 15.0
27-19-06-01
