Özellikler
| Version | PCB plug-in connector, Crimp contact, Individual contact, Pin – standard, tinned, Max. clamping range : 0.25 mm² |
| Order No. | 1421600000 |

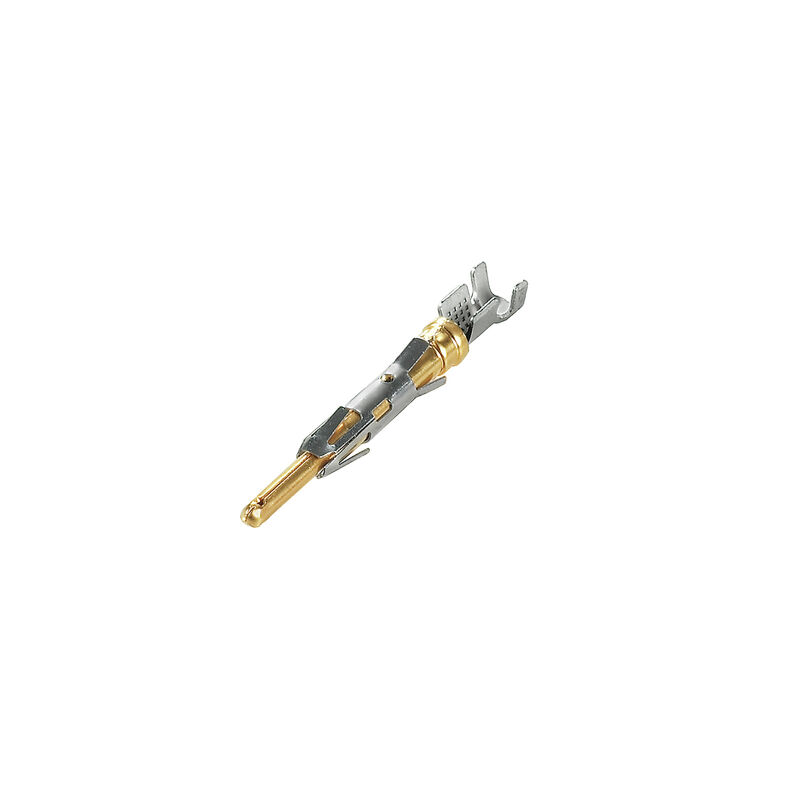

| Type | CS1,6E26-24 SN I1,4 |
| GTIN (EAN) | 4008190009939 |
| Qty. | 250 adet |
| Product data | |
| Packaging | Box |
| Net weight | 0,504 g |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Wire connection method | Crimp connection |
| Conductor outlet direction | 180° |
| Number of poles | 1 |
| Pin series quantity | 1 |
| Volume resistance | 3.30 mΩ |
| Stripping length | 4 mm |
| Contact material | Cu-alloy |
| Contact surface | tinned |
| Storage temperature, min. | -40 °C |
| Storage temperature, max. | 70 °C |
| Operating temperature, min. | -50 °C |
| Operating temperature, max. | 100 °C |
| Temperature range, installation, min. | -25 °C |
| Temperature range, installation, max. | 100 °C |
| Clamping range, min. | 0,14 mm² |
| Clamping range, max. | 0,25 mm² |
| Wire connection cross section AWG, min. | AWG 26 |
| Wire connection cross section AWG, max. | AWG 24 |
| Stranded, min. H07V-R | 0,14 mm² |
| Stranded, max. H07V-R | 0,25 mm² |
| Flexible, min. H05(07) V-K | 0,14 mm² |
| Flexible, max. H05(07) V-K | 0,25 mm² |
| w. wire end ferrule, DIN 46228 pt 1, min. | 0 mm² |
| w. wire end ferrule, DIN 46228 pt 1, max. | 0 mm² |
| Outer diameter of insulation, min. | 0,8 mm |
| Outer diameter of insulation, max. | 1,4 mm |
| tested acc. to standard |
IEC 60664-1
IEC 61984 |
| Rated impulse voltage for surge voltage class/ pollution degree III/2 | 0 kV |
| Packaging | Box |
| VPE length | 89 mm |
| VPE width | 72 mm |
| VPE height | 42 mm |
