FBCON PA CG/M12 8WAY LIMITER
FBCON PA CG/M12 8WAY LIMITER
FBCON PA CG/M12 8WAY LIMITER

FBCON PA CG/M12 8WAY LIMITER

Standard distributor with current limiting, 8-channel distributor LIMITER, IP66, IP67, Branch line M12, Round

Ürün No. 2617190000
Veri sayfasını indir Mühendislik desteği Ürün İndirmleri
İlgili ürünler 28
Approvals General ordering data Dimensions and weights Temperatures Probability of failure Environmental Product Compliance Connection data Dati tecnici Part description Classifications

Approvals

Homologaciones
![](https://assets.dam.weidmueller.com/assets/api/0d1637a4-c7dd-4915-8bc8-4c9de8d8b393/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Nº de certificat (cULus)
E141197

General ordering data

Versión
Standard distributor with current limiting, 8-channel distributor LIMITER, IP66, IP67, Branch line M12, Round
Código
2617190000
Tipo
FBCON PA CG/M12 8WAY LIMITER
GTIN (EAN)
4050118621716
Qty.
1 adet

Dimensions and weights

Profundidad
34 mm
Depth (inches)
1,339 inch
Altura
34 mm
Height (inches)
1,339 inch
Anchura
175 mm
Width (inches)
6,89 inch
Net weight
890 g

Temperatures

Temperatura de almacenamiento
-40 °C...80 °C
Temperatura de servicio
-40 °C...75 °C
Humidity
5...95 %, no condensation

Probability of failure

SIL in compliance with IEC 61508
None

Environmental Product Compliance

Statut de conformité RoHS
Compliant with exemption
Exemption RoHS (le cas échéant/connue)
6bI, 6c, 7a, 7cI
REACH SVHC
Lead 7439-92-1
SCIP
3a5f5913-76fc-4ff5-8563-4463f80bbe02

Connection data

Clamping range, min.
4 mm²
Clamping range, max.
6 mm²

Dati tecnici

Bus system
Profibus-PA
Foundation Fieldbus
Cable entry
Linia odgałęzienia M12
okrągły
Cable glands
Kabelförskruvning i mässing
Conductor O.D., max.
9,5 mm
Conductor O.D., min.
6,5 mm
Current limiting
adjustable
20 mA, 40 mA, 60 mA
Design of housing
With pressure compensation element
Housing main material
Aluminium
AISi12
Aluminum
Number of poles
3
Operating voltage
30 V
Pollution severity
3
Povrch krytu
powder coating
Protection degree
IP66
IP67
Spotřeba proudu v pohotovostním režimu
7 mA
Type of distribution
8-channel distributor LIMITER
Type of mounting
surface-mounted

Part description

Description du produit

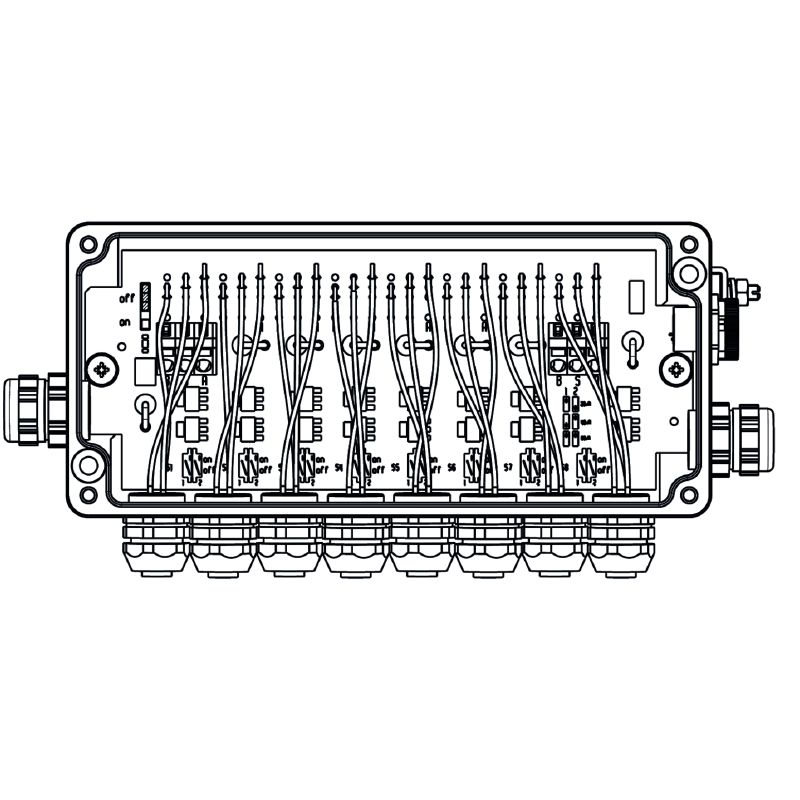

The device is an active field distributor for the fieldbus systems Profibus PA and Foundation Fieldbus H1. The device complies with protection class IP66/IP67. Functional description The device connects up to eight field devices with one fieldbus segment. An adjustable current monitoring per spur line protects the trunk line from short circuits or overload (see figure B1). Suppressor diodes protect the connected field devices from surge voltages. A red LED indicates a short circuit or overload on the spur line. A green LED indicates sufficient voltage supply on the trunk line. The device supports earthing concepts with multi-point screen earthing or single-point screen earthing. The earthing concepts are explained in the Profibus PA and Foundation Fieldbus guidelines.

Classifications

ETIM 8.0
EC001604
ETIM 9.0
EC001604
ETIM 10.0
EC001604
ECLASS 14.0
27-44-01-11
ECLASS 15.0
27-44-01-11
