Özellikler

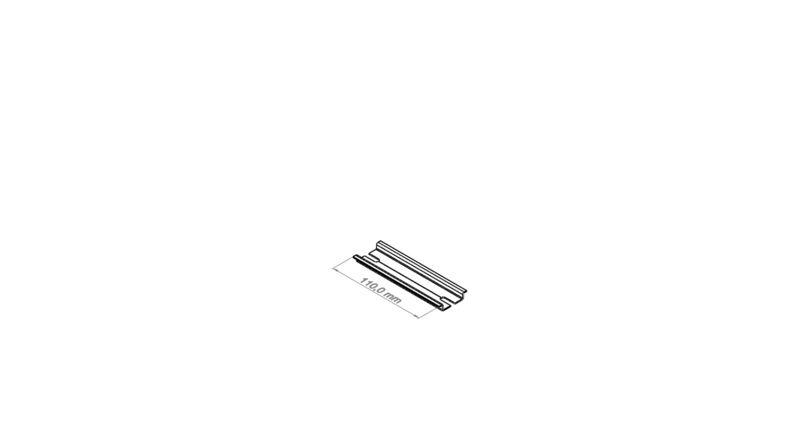

| Version | Field Power® terminal rail, Steel, galvanized, 110 mm, for aluminium lid |
| Order No. | 2633750000 |
| Type | FP ENC DR07 110 3C A |
| GTIN (EAN) | 4050118664362 |
| Qty. | 5 adet |
| Depth | 7,5 mm |
| Depth (inches) | 0,295 inch |
| Height | 35 mm |
| Height (inches) | 1,378 inch |
| Width | 110 mm |
| Width (inches) | 4,331 inch |
| Net weight | 36 g |
| Operating temperature | -40 °C...85 |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Installation advice | Screws included |
| Insulating material | Steel |
| Material | Steel, galvanized |
| Colour | silver |
| Material | Steel, galvanized |
| Insulating material | Steel |
| Colour | silver |
| Type of mounting | Screw mounting |
| Mounting position, installation notice | for aluminium lid |
| Installation advice | Screws included |
| Version | with slot |
| Approval/Certificate/Document of Conformity | [Manufacturer's Declaration FieldPower® Enclosure parts](https://mdcop.weidmueller.com/mediadelivery/asset/900_263559) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_205612) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2633750000) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC001285 |
| ETIM 7.0 | EC001285 |
| ETIM 8.0 | EC001285 |
| ETIM 9.0 | EC001285 |
| ECLASS 9.0 | 27-40-06-02 |
| ECLASS 9.1 | 27-40-06-02 |
| ECLASS 10.0 | 27-40-06-02 |
| ECLASS 11.0 | 27-40-06-02 |
| ECLASS 12.0 | 27-40-06-02 |
| ECLASS 13.0 | 27-40-06-02 |
| ECLASS 14.0 | 27-40-06-02 |
| ROHS | Conform |
Aksesuarlar
aksesuarıdır
-
Ürün No.:8000051770Ambalaj birimi:1 adet
FieldPower® power supply unit, IP65, in closed state, in complete state, 10A, 48 V, DC
-
Ürün No.:8000051702Ambalaj birimi:1 adet
FieldPower® power supply unit, IP65, in closed state, in complete state, 10A, 24 V, DC
-
Ürün No.:2887630000Ambalaj birimi:1 adet
FieldPower® power supply unit, IP65, in closed state, in complete state, 10A, 48 V, DC, PUSH IN
-
Ürün No.:2887610000Ambalaj birimi:1 adet
FieldPower® power supply unit, IP65, in closed state, in complete state, 20A, 24 V, DC, PUSH IN
-
Ürün No.:2887590000Ambalaj birimi:1 adet
FieldPower® power supply unit, IP65, in closed state, in complete state, 10A, 24 V, DC, PUSH IN
-
Ürün No.:2632840000Ambalaj birimi:1 adet
FieldPower® enclosures, 191 mm, 279 mm, 178 mm, IP65, in complete state, Aluminium, Aluminium
-
Ürün No.:2632950000Ambalaj birimi:1 adet
FieldPower® enclosures, 196 mm, 284 mm, 220 mm, IP65, in complete state, glass-fibre reinforced polycarbonate, Aluminium, black, Aluminium
Münferit parçalar
-
Ürün No.:1274150000Ambalaj birimi:1 adet
Klippon EB (Essential Box), Mounting screw, Height: 13.3 mm, Width: 8.5 mm, Depth: 8.5 mm, Material: Steel, galvanized, galvanic zinc plated and passivated, silver
