Özellikler
| Version | Frame |
| Order No. | 2736940000 |

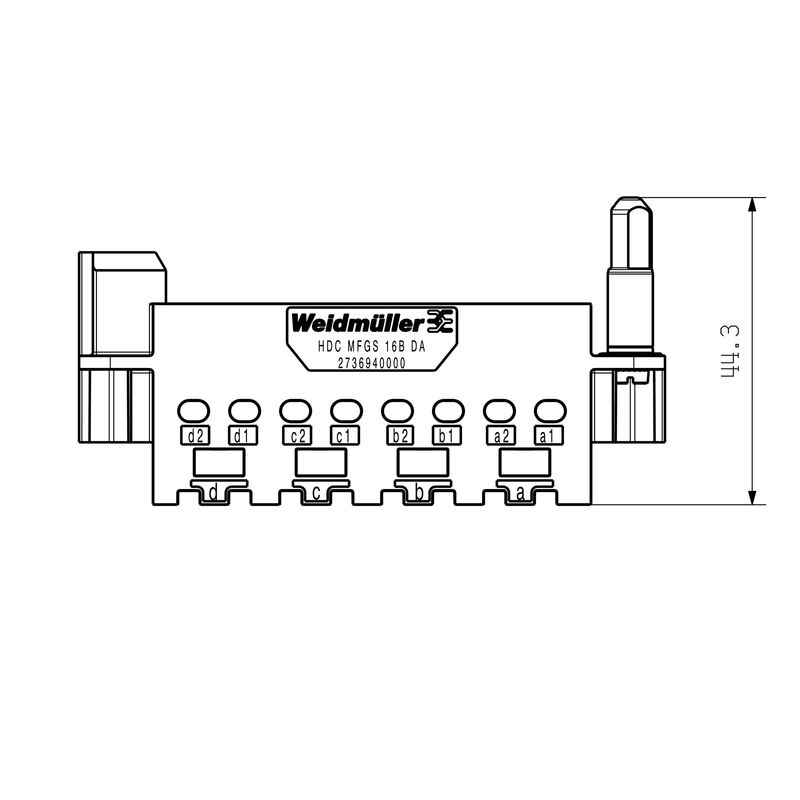

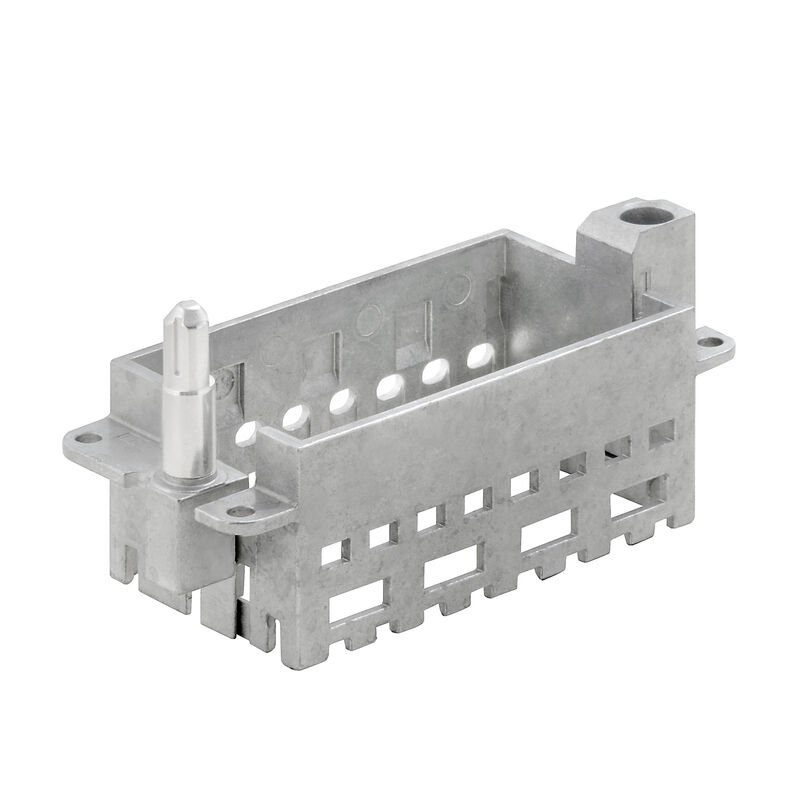

| Type | HDC MFGS 16B DA |
| GTIN (EAN) | 4050118823004 |
| Qty. | 1 adet |
| Net weight | 81 g |
| Limit temperature | -40 °C ... 125 °C |
| RoHS Compliance Status | Compliant with exemption |
| RoHS Exemption (if applicable/known) | 6c |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | d447edfa-0214-4f34-b5ba-82eae491b46a |
| Material | Diecast zinc |
| Number of slots | 4 |
| Plugging cycles | ≥ 500 |
| Series | ModuPlug |
| Size | 6 |
| Version of guiding pin | short |
| Product information | The PE connection is no longer available for the version with guide pin. |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_166386) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2736940000) |
| Technical Documentation | [HDC MFGS 16B DA](https://mdcop.weidmueller.com/mediadelivery/asset/900_181498) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC002312 |
| ETIM 7.0 | EC002312 |
| ETIM 8.0 | EC002312 |
| ETIM 9.0 | EC002312 |
| ECLASS 9.0 | 27-44-02-06 |
| ECLASS 9.1 | 27-44-02-06 |
| ECLASS 10.0 | 27-44-02-06 |
| ECLASS 11.0 | 27-44-02-06 |
| ECLASS 12.0 | 27-44-02-92 |
| ECLASS 13.0 | 27-44-02-92 |
| ECLASS 14.0 | 27-44-02-92 |
| ROHS | Conform |
aksesuarıdır
-
Ürün No.:2748270000Ambalaj birimi:2 adet
Power module, 1000 V, Number of poles: 1, Axial screw connection, Female, Required plug-in slots: 2
-
Ürün No.:2748240000Ambalaj birimi:2 adet
Power module, 1000 V, 200 A, Number of poles: 1, Axial screw connection, Male, Required plug-in slots: 2
-
Ürün No.:3092810000Ambalaj birimi:1 adet
Data module, 48 V, 5 A, Number of poles: 8, Crimp connection, Female, Required plug-in slots:
-
Ürün No.:2748530000Ambalaj birimi:1 adet
Data module, 50 V, 5 A, Cat. 6A, Number of poles: 8, Crimp connection, Female, Required plug-in slots: 1
-
Ürün No.:2635980000Ambalaj birimi:1 adet
Signal module, 250 V, 16 A, Number of poles: 4, PUSH IN with actuator, Male, Required plug-in slots: 0.5
-
Ürün No.:2748450000Ambalaj birimi:1 adet
Signal module, 400 V, 16 A, Number of poles: 8, PUSH IN with actuator, Female, Required plug-in slots: 1
-
Ürün No.:1428970000Ambalaj birimi:1 adet
Power module, 830 V, 40 A, Number of poles: 4, Crimp connection, Female, Required plug-in slots: 1
-
Ürün No.:2748320000Ambalaj birimi:2 adet
Power module, 690 V, 40 A, Number of poles: 2, Axial screw connection, Male, Required plug-in slots: 1
-
Ürün No.:2748500000Ambalaj birimi:5 adet
Power module, 4 A, Number of poles: , Crimp connection, Male, Required plug-in slots:
-
Ürün No.:2748440000Ambalaj birimi:1 adet
Signal module, 400 V, 16 A, Number of poles: 8, PUSH IN with actuator, Male, Required plug-in slots: 1
-
Ürün No.:2748340000Ambalaj birimi:5 adet
Power module, 830 V, 40 A, Number of poles: 2, Crimp connection, Male, Required plug-in slots: 1
-
Ürün No.:2748390000Ambalaj birimi:1 adet
High voltage module, 2900 V, 16 A, Number of poles: 2, Crimp connection, Female, Required plug-in slots: 2
-
Ürün No.:2748360000Ambalaj birimi:5 adet
Power module, Number of poles: 7, Crimp connection, Male, Required plug-in slots: 1
-
Ürün No.:2748560000Ambalaj birimi:2 adet
Data module, 50 V, 10 A, Number of poles: 2, Crimp connection, Male, Required plug-in slots: 2
-
Ürün No.:2748470000Ambalaj birimi:1 adet
Signal module, 250 V, 10 A, Number of poles: 12, PUSH IN with actuator, Female, Required plug-in slots: 1
-
Ürün No.:2636190000Ambalaj birimi:1 adet
Signal module, 400 V, 16 A, Number of poles: 5, PUSH IN with actuator, Female, Required plug-in slots: 1
-
Ürün No.:2748520000Ambalaj birimi:1 adet
Data module, 50 V, 5 A, Cat. 6A, Number of poles: 8, Crimp connection, Male, Required plug-in slots: 1
-
Ürün No.:2748510000Ambalaj birimi:5 adet
Power module, 4 A, Number of poles: , Crimp connection, Female, Required plug-in slots:
-
Ürün No.:1429350000Ambalaj birimi:1 adet
Power module, 690 V, 40 A, Number of poles: 3, Crimp connection, Female, Required plug-in slots: 1
-
Ürün No.:2748430000Ambalaj birimi:1 adet
Signal module, 500 V, 16 A, Number of poles: 6, PUSH IN with actuator, Female, Required plug-in slots: 1
-
Ürün No.:2748330000Ambalaj birimi:2 adet
Power module, 690 V, 40 A, Number of poles: 2, Axial screw connection, Female, Required plug-in slots: 1
-
Ürün No.:2748380000Ambalaj birimi:1 adet
High voltage module, 2900 V, 16 A, Number of poles: 2, Crimp connection, Male, Required plug-in slots: 2
-
Ürün No.:2748290000Ambalaj birimi:2 adet
Power module, 1000 V, 100 A, Number of poles: 2, Axial screw connection, Female, Required plug-in slots: 2
-
Ürün No.:2748460000Ambalaj birimi:1 adet
Signal module, 250 V, 10 A, Number of poles: 12, PUSH IN with actuator, Male, Required plug-in slots: 1
-
Ürün No.:2748490000Ambalaj birimi:5 adet
Signal module, 160 V, 10 A, Number of poles: 17, Crimp connection, Female, Required plug-in slots: 1
-
Ürün No.:2748310000Ambalaj birimi:2 adet
Power module, 1000 V, 70 A, Number of poles: 2, Axial screw connection, Female, Required plug-in slots: 1
-
Ürün No.:2635990000Ambalaj birimi:1 adet
Signal module, 250 V, 16 A, Number of poles: 4, PUSH IN with actuator, Female, Required plug-in slots: 0.5
-
Ürün No.:1428910000Ambalaj birimi:1 adet
Signal module, 500 V, 16 A, Number of poles: 20, Crimp connection, Male, Required plug-in slots: 2
-
Ürün No.:2748250000Ambalaj birimi:2 adet
Power module, 1000 V, 200 A, Number of poles: 1, Axial screw connection, Female, Required plug-in slots: 2
-
Ürün No.:2748370000Ambalaj birimi:5 adet
Power module, Number of poles: 7, Crimp connection, Female, Required plug-in slots: 1
-
Ürün No.:2748540000Ambalaj birimi:5 adet
Module, 48 V, 1.5 A, Number of poles: 4, Crimp connection, Solder connection, Male, Required plug-in slots: 1
-
Ürün No.:3092820000Ambalaj birimi:1 adet
Data module, 48 V, 5 A, Number of poles: 8, Crimp connection, Male, Required plug-in slots:
-
Ürün No.:2748300000Ambalaj birimi:2 adet
Power module, 1000 V, 70 A, Number of poles: 2, Axial screw connection, Male, Required plug-in slots: 1
-
Ürün No.:1429340000Ambalaj birimi:1 adet
Power module, 690 V, 40 A, Number of poles: 3, Crimp connection, Pin, Required plug-in slots: 1
-
Ürün No.:2748400000Ambalaj birimi:1 adet
Signal module, 230 V, 16 A, Number of poles: 5, PUSH IN with actuator, Male, Required plug-in slots: 1
-
Ürün No.:2748570000Ambalaj birimi:2 adet
Data module, 50 V, 10 A, Number of poles: 2, Crimp connection, Female, Required plug-in slots: 2
-
Ürün No.:2636180000Ambalaj birimi:1 adet
Signal module, 400 V, 16 A, Number of poles: 5, PUSH IN with actuator, Male, Required plug-in slots: 1
-
Ürün No.:2748480000Ambalaj birimi:5 adet
Signal module, 160 V, 10 A, Number of poles: 17, Crimp connection, Male, Required plug-in slots: 1
-
Ürün No.:1429020000Ambalaj birimi:1 adet
Data module, Number of poles: 2, Crimp connection, Female, Required plug-in slots: 1
-
Ürün No.:2748280000Ambalaj birimi:2 adet
Power module, 1000 V, 100 A, Number of poles: 2, Axial screw connection, Male, Required plug-in slots: 2
-
Ürün No.:1428990000Ambalaj birimi:1 adet
Data module, Number of poles: 2, Crimp connection, Male, Required plug-in slots: 1
-
Ürün No.:2748350000Ambalaj birimi:5 adet
Power module, 830 V, 40 A, Number of poles: 2, Crimp connection, Female, Required plug-in slots: 1
-
Ürün No.:2748260000Ambalaj birimi:2 adet
Power module, 1000 V, Number of poles: 1, Axial screw connection, Male, Required plug-in slots: 2
-
Ürün No.:1428930000Ambalaj birimi:1 adet
Signal module, 500 V, 16 A, Number of poles: 20, Crimp connection, Female, Required plug-in slots: 2
-
Ürün No.:2748410000Ambalaj birimi:1 adet
Signal module, 230 V, 16 A, Number of poles: 5, PUSH IN with actuator, Female, Required plug-in slots: 1
-
Ürün No.:2748550000Ambalaj birimi:5 adet
Module, 48 V, 1.5 A, Number of poles: 4, Crimp connection, Solder connection, Female, Required plug-in slots: 1
-
Ürün No.:1428950000Ambalaj birimi:1 adet
Power module, 830 V, 40 A, Number of poles: 4, Crimp connection, Pin, Required plug-in slots: 1
-
Ürün No.:2748420000Ambalaj birimi:1 adet
Signal module, 500 V, 16 A, Number of poles: 6, PUSH IN with actuator, Male, Required plug-in slots: 1
