HSS-HF 2.4-4.8 EL W30M
HSS-HF 2.4-4.8 EL W30M

HSS-HF 2.4-4.8 EL W30M

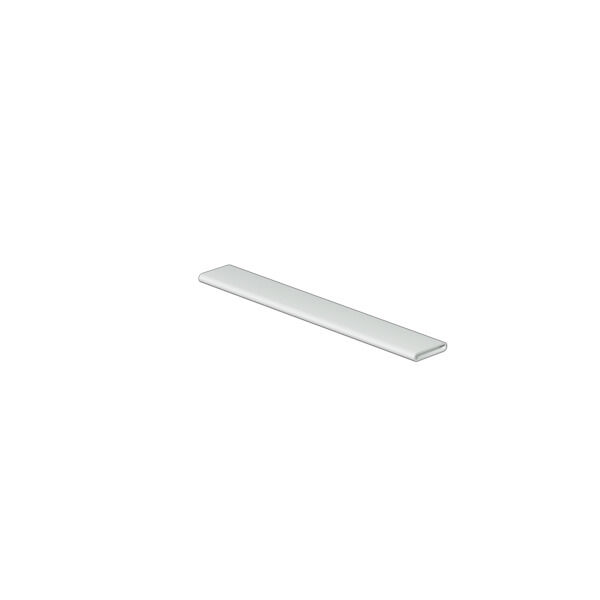

Conductor and cable markers, 2.4 - 4.8 mm, white

Ürün No. 1513270000
Veri sayfasını indir Ürün İndirmleri Mühendislik desteği
Aksesuarlar 5 İlgili ürünler 39
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance General data Conductor and cable markers Important note Classifications

Approvals

ROHS
Conform

General ordering data

Versione
Conductor and cable markers, 2.4 - 4.8 mm, white
Rendelési szám
1513270000
유형
HSS-HF 2.4-4.8 EL W30M
GTIN (EAN)
4050118321005
Qty.
1 adet

Dimensions and weights

깊이
0,9 mm
Depth (inches)
0,035 inch
너비
7,6 mm
Width (inches)
0,299 inch
길이
30 000 mm
Length (inches)
1 181,1 inch
Net weight
287 g

Temperatures

Zakres temperatury stosowania
-55...105 °C

Environmental Product Compliance

RoHS-kompatibilitetsstatus
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

General data

Basic material
Polyolefine
Colour
white
compatible printer
[THM MULTIMARK](~/p/2599430000)
[THM MULTIMARK PLUS](~/p/2599440000)
[THM-TWINMARK](~/p/1140490000)
Halogen
No
Length
30 000 mm
Number per roll
1
Operating temperature range
-55...105 °C
Operating temperature range, max.
105 °C
Operating temperature range, min.
-55 °C
Printed characters
without
Type of printing
neutral
Width
7,6 mm

Conductor and cable markers

Conductor O.D.
2.4 - 4.8 mm
Conductor O.D., min.
2,4 mm
Cross-section for connected wire
0.75 - 4 mm²
Halogener
No
Ledardiameter, max.
4 mm²
Ledardiameter, min.
0,75 mm²
Ledarytterdiameter, max.
4,8 mm
Rate of shrinkage
2:1
Recommended shrinking temperature
90 °C

Important note

Product information
External roll holder 1302920000 necessary

Classifications

ETIM 8.0
EC001530
ETIM 9.0
EC001530
ETIM 10.0
EC001530
ECLASS 14.0
27-28-11-02
ECLASS 15.0
27-28-11-02
