Özellikler

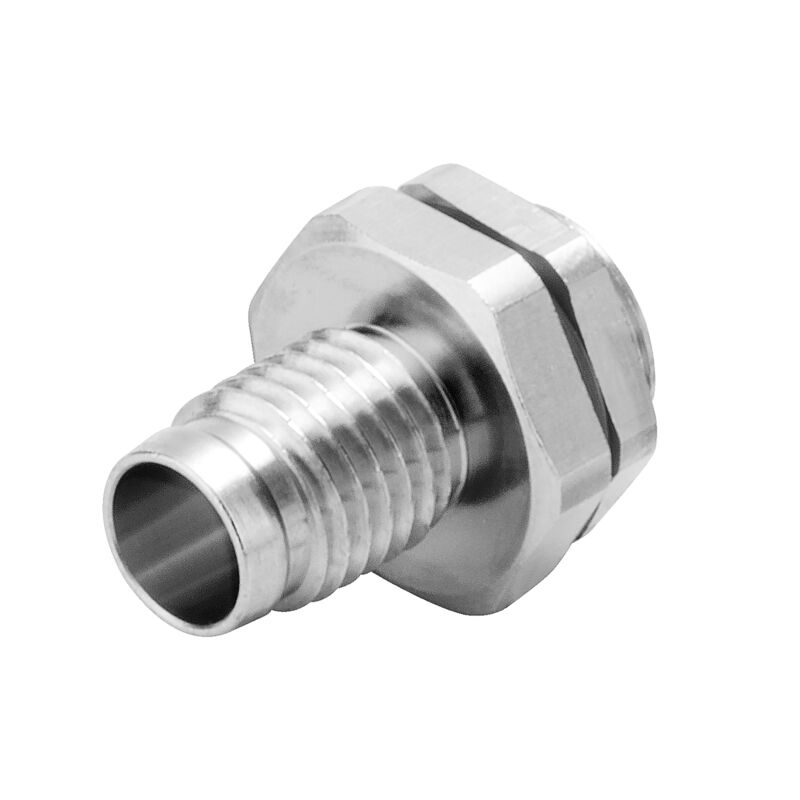

| Version | PCB, M8 socket housing, IP67, Frontpanel mounting |
| Order No. | 2726020000 |
| Type | IE-BHD-SPE-M8-OT-FP |
| GTIN (EAN) | 4050118810776 |
| Qty. | 10 adet |
| Net weight | 3 g |
| Operating temperature | -40 °C...85 °C |
| RoHS Compliance Status | Compliant |
| REACH SVHC | No SVHC above 0.1 wt% |
| Number of poles | 2 |
| Product family | Industrial Ethernet |
| Protection degree | IP67 |
| Insulation strength | ≥ 500 MΩ |
| Connector standard |
IEC 61076-2-104
IEC 63171-5 |
| Colour | silver |
| Colour chart (similar) | RAL 7001 |
| Insulation strength | ≥ 500 MΩ |
| UL 94 flammability rating | V-0 |
| Operating temperature, min. | -40 °C |
| Operating temperature, max. | 85 °C |
| VPE length | 90 mm |
| VPE width | 25 mm |
| VPE height | 15 mm |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_177544) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2726020000) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC001031 |
| ETIM 7.0 | EC001031 |
| ETIM 8.0 | EC001031 |
| ETIM 9.0 | EC001031 |
| ECLASS 9.0 | 27-18-27-02 |
| ECLASS 9.1 | 27-18-27-02 |
| ECLASS 10.0 | 27-18-27-02 |
| ECLASS 11.0 | 27-18-27-02 |
| ECLASS 12.0 | 27-18-27-02 |
| ECLASS 13.0 | 27-19-01-04 |
| ECLASS 14.0 | 27-19-01-04 |
| ROHS | Conform |
Aksesuarlar
-
Ürün No.:2739640000Ambalaj birimi:10 adet
Locknut, PCB, M8 socket housing
