시스템 케이블, M12 D-코드 – 플랜지, 개방, Cat.5 (ISO/IEC 11801) / Cat.5e (TIA T568-B), PUR, 2 m

ID výrobku 1234770020
Stáhnout datový list Engineering Support Product Downloads
Tilbehør 4 Anvendte produkter 5
Godkännanden 일반 주문 데이터 Mått och vikter 온도 Conformità ambientale del prodotto Struktura kabelu Electrical properties of cable Mechanische und Materialeigenschaften Kabel Plug, left Plug, right 분류

Godkännanden

ROHS
Uppfyllelse

일반 주문 데이터

Version

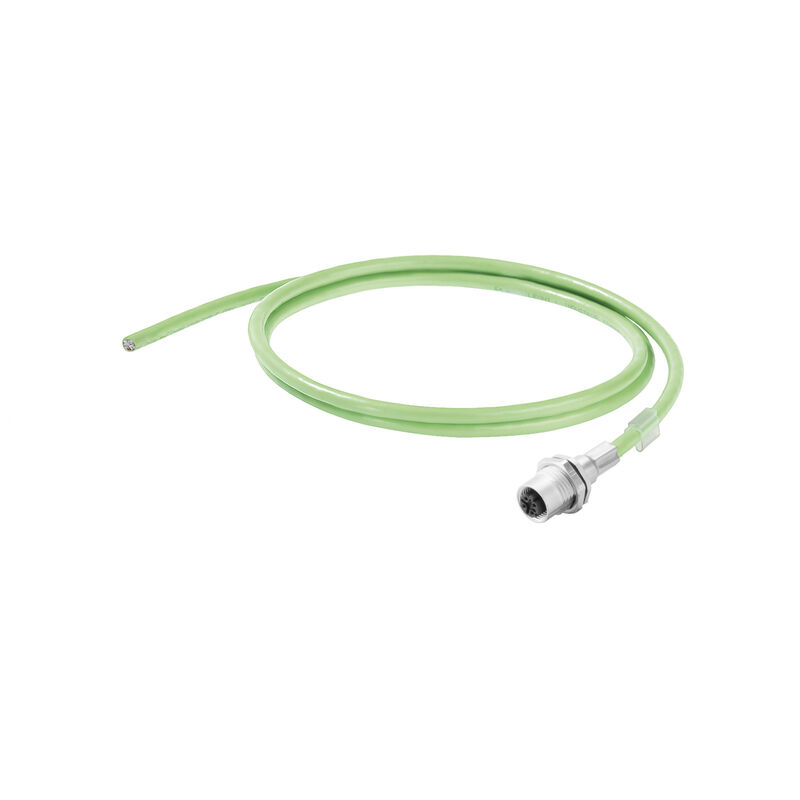

시스템 케이블, M12 D-코드 – 플랜지, 개방, Cat.5 (ISO/IEC 11801) / Cat.5e (TIA T568-B), PUR, 2 m
Order No.
1234770020
Type
IE-C5DS4UG0020MBSXXX-E
GTIN (EAN)
4050118019452
Qty.
1 adet

Mått och vikter

Length
2 m
Bygglängd (tum)
78,74 inch
Net weight
138 g

온도

Storage temperature
-50 °C...70 °C
Operating temperature
-40 °C...70 °C
Installation temperature
-20 °C...60 °C

Conformità ambientale del prodotto

RoHS Compliance Status
준수, 예외 존재
RoHS Exemption (if applicable/known)
6c
REACH SVHC
Lead 7439-92-1
SCIP
67cf1078-beca-4687-860b-dc475a6ec24a

Struktura kabelu

Cross-section
4*AWG 22/7 - 0,32 mm²
Insulation cross-section
1,5 mm
Material sheath
PUR
Sheath diameter, max.
6,7 mm
Sheathing colour
green (RAL 6018)
Shielding
Contatto dello schermo a 360°

Electrical properties of cable

Category
Cat.5 (ISO/IEC 11801) / Cat.5e (TIA T568-B)

Mechanische und Materialeigenschaften Kabel

Halogen
halogenfrei, gemäß IEC 60754-2
Min. bending radius, once only
5 x Kabeldurchmesser
Min. bending radius, repetitive
15 x cable diameter
Resistance to spread of flame
Yes

Plug, left

Plug left
M12, D-coded, IP67, female contact, straight, flange, Plastic, shielded

Plug, right

Plug right
free conductor end

분류

ETIM 8.0
EC002599
ETIM 9.0
EC002599
ETIM 10.0
EC002599
ECLASS 14.0
27-06-03-08
ECLASS 15.0
27-06-03-08
