IE-CC-8W-FA-IP67
IE-CC-8W-FA-IP67

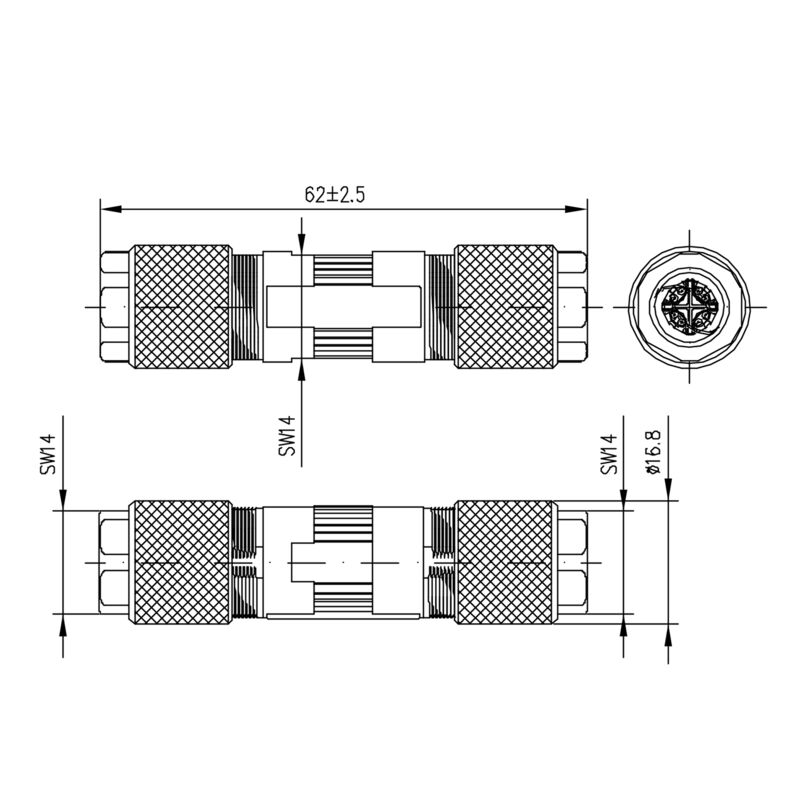

Dimensioned drawing

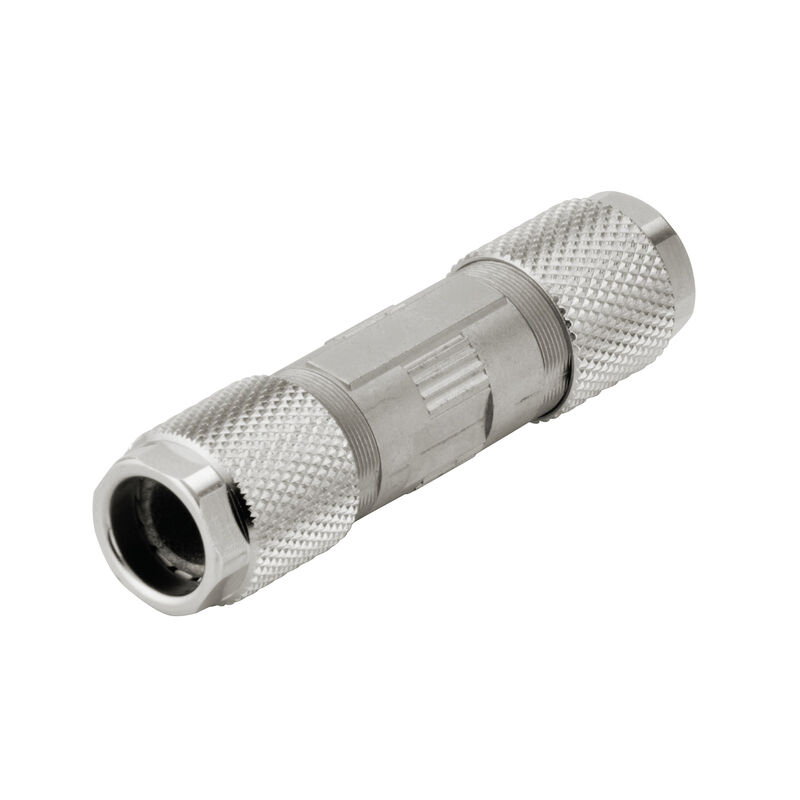

IE-CC-8W-FA-IP67

Connecting module, IDC, Class FA (ISO/IEC11801 2011) with Cat. 7A Cable, IP67

Ürün No. 1499940000
Veri sayfasını indir Engineering Support Product Downloads
İlgili ürünler 2
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance General Info Electrical properties Classifications

Approvals

ROHS
Conform

General ordering data

Version
Connecting module, IDC, Class FA (ISO/IEC11801 2011) with Cat. 7A Cable, IP67
Order No.
1499940000
Type
IE-CC-8W-FA-IP67
GTIN (EAN)
4050118308297
Qty.
1  adet

Dimensions and weights

Width
16,8  mm
Width (inches)
0,661  inch
Length
64  mm
Length (inches)
2,52  inch
Net weight
41  g

Temperatures

Operating temperature
-40 °C...85 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
6c
REACH SVHC
Lead 7439-92-1
SCIP
e4cad7fc-a55e-4d5c-8f05-417a6385e9b6

General Info

Number of poles
8
Connection 1
IDC
Connection 2
IDC
Description of article
Connecting module
Colour
silver
Housing main material
Zinc diecast
Insulation cross-section, max.
1,6  mm
Category
Class FA (ISO/IEC11801 2011) with Cat. 7A Cable
Connection diameter, solid
0.4...0.64 mm
Wire connection diameter, solid, min.
0,4  mm
Conductor connection cross-section, solid (AWG)
AWG 24...AWG 22
Wire connection diameter, solid, max.
0,64  mm
Connection diameter, flexible
0.48...0.76 mm
Wire cross-section, solid, min. (AWG)
AWG 24
Conductor connection cross-section, flexible (AWG)
AWG 26...AWG 22
Wire cross-section, solid, max. (AWG)
AWG 22
Wire connection diameter, flexible, min.
0,48  mm
Wire connection diameter, flexible, max.
0,76  mm
Wire cross-section, finely stranded, min. (AWG)
AWG 26
Wire cross-section, finely stranded, max. (AWG)
AWG 22
Sheath diameter, min.
5  mm
Sheath diameter, max.
9,7  mm
Contact holder materials
PA
Shielding
360° all-round enclosure
Protection degree
IP67

Electrical properties

Insulation strength
100 MΩ
PoE / PoE+
conforming to IEEE 802.3af
conforming to IEEE 802.3at
Rated voltage
63  V

Classifications

ETIM 6.0
EC001059
ETIM 7.0
EC001059
ETIM 8.0
EC001059
ETIM 9.0
EC001059
ETIM 10.0
EC001059
ECLASS 9.0
27-40-02-12
ECLASS 9.1
27-40-02-12
ECLASS 10.0
27-40-02-12
ECLASS 11.0
27-40-02-12
ECLASS 12.0
27-40-02-12
ECLASS 13.0
27-40-02-12
ECLASS 14.0
27-40-02-12
ECLASS 15.0
27-40-02-12
