Özellikler

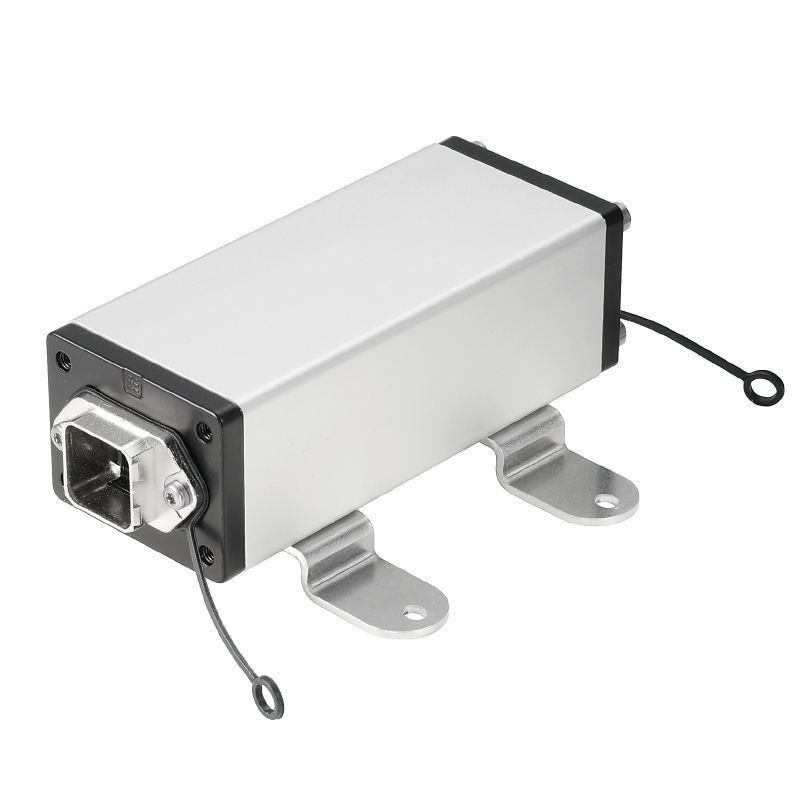

| Version | Junction box, FreeCon, Hybrid, Plug-in connector, IP65 |
| Order No. | 1068840000 |
| Type | IE-CD-V14MHYB-10P-C-MA |
| GTIN (EAN) | 4032248823932 |
| Qty. | 1 adet |
| Depth | 142 mm |
| Depth (inches) | 5,591 inch |
| Height | 52 mm |
| Height (inches) | 2,047 inch |
| Width | 41 mm |
| Width (inches) | 1,614 inch |
| Net weight | 652,82 g |
| Storage temperature | -40 °C...75 °C |
| Operating temperature | -40 °C...70 °C |
| RoHS Compliance Status | Compliant with exemption |
| RoHS Exemption (if applicable/known) | 6c |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | e4cad7fc-a55e-4d5c-8f05-417a6385e9b6 |
| Colour | silver |
| Housing main material |
Aluminium profile
Cover: die-cast zinc, painted |
| Protection degree | IP65 |
| Type of mounting | Screw mounting |
| UL 94 flammability rating | V-0 |
| Certificate no. (cULus) | E316369 |
| Connector standard | IEC 61076-3-117 Var. 14 |
| Contact material (hybrid connector) | Copper alloy |
| Contact resistance (hybrid connector) | ≤ 10 mΩ |
| Contact surface (hybrid connector) | Gold over nickel |
| Housing base material (hybrid connector) |
Zinc diecast (flange)
PA 66 |
| Material of seal (hybrid connector) | NBR |
| Plugging cycles (hybrid connector) | 500 |
| Pole count | 10 |
| Protection degree (hybrid connector) | IP65 |
| Rated current (hybrid connector) | 3 A per contact |
| Rated voltage (DIN EN 61984) (hybrid connector) | 24 V |
| Shielding (hybrid connector) | 360° shield contact |
| Approval/Certificate/Document of Conformity | [PROFINET Manufacturer's Declaration](https://mdcop.weidmueller.com/mediadelivery/asset/900_67339) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_253566) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1068840000) |
| User Documentation |
[MAN IE GUIDE DE](https://mdcop.weidmueller.com/mediadelivery/asset/900_40065)
[MAN IE GUIDE EN](https://mdcop.weidmueller.com/mediadelivery/asset/900_40066) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| Brochures |
[MB FREECONCONTACT EN](http://download.weidmueller.com/asset/download/file/38173)
[FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293) [PI PROFINET CABLING EN](http://download.weidmueller.com/asset/download/file/38183) [PI PROFINET CABLING EN](http://download.weidmueller.com/asset/download/file/38183) |
| ETIM 7.0 | EC002597 |
| ETIM 8.0 | EC002597 |
| ETIM 9.0 | EC002597 |
| ECLASS 9.1 | 27-44-03-18 |
| ECLASS 10.0 | 27-44-03-18 |
| ECLASS 11.0 | 27-44-03-18 |
| ECLASS 12.0 | 27-44-03-18 |
| ECLASS 13.0 | 27-44-03-18 |
| ECLASS 14.0 | 27-44-03-18 |
| Approvals |  |
| ROHS | Conform |
| UL File Number Search | [UL Website](LINK/UL_search.html) |
| Certificate no. (cULus) | E316369 |
