Özellikler

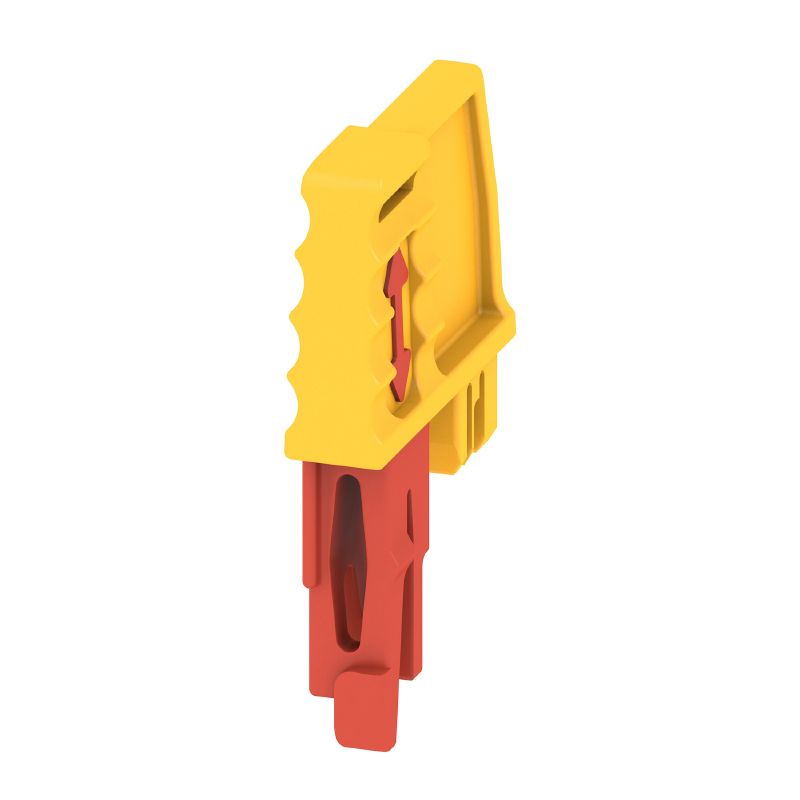

| Version | Locking lever (terminal) |
| Order No. | 2710400000 |
| Type | LL TTB 6/2 CM YL |
| GTIN (EAN) | 4064675012627 |
| Qty. | 50 adet |
| Depth | 25,2 mm |
| Depth (inches) | 0,992 inch |
| Height | 4,2 mm |
| Height (inches) | 0,165 inch |
| Width | 15,9 mm |
| Width (inches) | 0,626 inch |
| Net weight | 0,8 g |
| Storage temperature | -25 °C...55 °C |
| Continuous operating temp., min. | -60 °C |
| Continuous operating temp., max. | 130 °C |
| REACH SVHC | / |
| Material | Wemid |
| Colour | yellow |
| UL 94 flammability rating | V-0 |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_205943) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2710400000) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC002848 |
| ETIM 7.0 | EC002848 |
| ETIM 8.0 | EC002848 |
| ETIM 9.0 | EC002848 |
| ECLASS 9.0 | 27-14-11-92 |
| ECLASS 9.1 | 27-14-11-92 |
| ECLASS 10.0 | 27-14-11-92 |
| ECLASS 11.0 | 27-14-11-92 |
| ECLASS 12.0 | 27-14-11-92 |
| ECLASS 13.0 | 27-25-03-90 |
