LUP 12.70/03/90 5.0SN BK BX
Product image

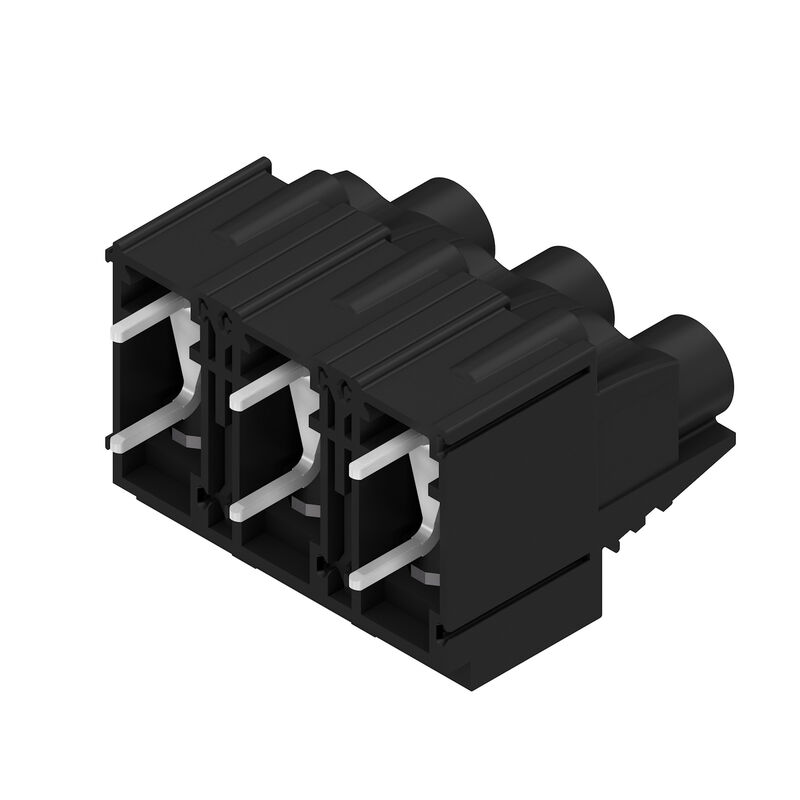

LUP 12.70/03/90 5.0SN BK BX
Product image

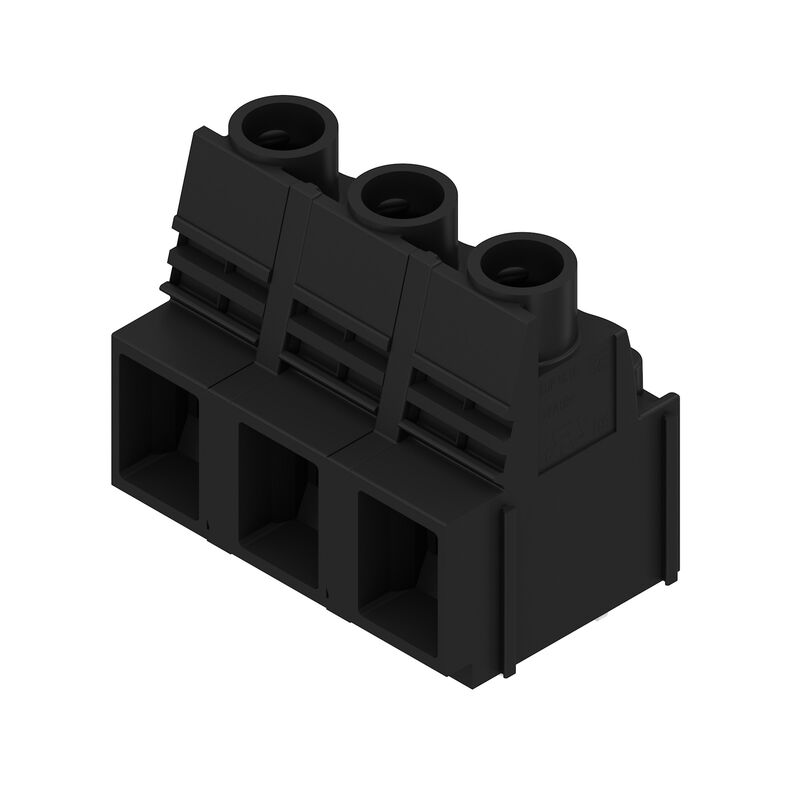

LUP 12.70/03/90 5.0SN BK BX
Dimensional drawing
LUP 12.70/03/90 5.0SN BK BX
Graph
LUP 12.70/03/90 5.0SN BK BX
Graph

LUP 12.70/03/90 5.0SN BK BX

Printed circuit board terminals, 12.70 mm, Number of poles: 3, 90°, Solder pin length (l): 5 mm, tinned, black, Clamping yoke connection, Clamping range, max. : 16 mm², Box

Produkt ID 2014380000
Download datablad Mühendislik desteği Ürün İndirmleri
İlgili ürünler 8
Approvals General ordering data Dimensions and weights Environmental Product Compliance System parameters Material data Conductors suitable for connection Rated data acc. to IEC Rated data acc. to CSA Rated data acc. to UL 1059 Packing Type tests Important note Classifications

Approvals

Agréments
![](https://assets.dam.weidmueller.com/assets/api/33feeb02-46e9-4a14-9d79-8ec5ee409fe3/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Tanúsítvány száma (cURus)
E60693

General ordering data

Version
Printed circuit board terminals, 12.70 mm, Number of poles: 3, 90°, Solder pin length (l): 5 mm, tinned, black, Clamping yoke connection, Clamping range, max. : 16 mm², Box
Référence
2014380000
Type
LUP 12.70/03/90 5.0SN BK BX
GTIN (EAN)
4050118400137
Qté.
20 adet
Product data
IEC: 1000 V / 76 A / 0.5 - 16 mm²
UL: 600 V / 65 A / AWG 22 - AWG 6
Packaging
Box

Dimensions and weights

Profondeur
25,1 mm
Depth (inches)
0,988 inch
Hauteur
36,5 mm
Height (inches)
1,437 inch
Height of lowest version
31,5 mm
Largeur
36,36 mm
Width (inches)
1,431 inch
Poids net
29,96 g

Environmental Product Compliance

Statut de conformité RoHS
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

System parameters

Product family
OMNIMATE Power - series LUP
Wire connection method
Clamping yoke connection
Mounting onto the PCB
THT solder connection
Conductor outlet direction
90°
Pitch in mm (P)
12,7 mm
Pitch in inches (P)
0,5 "
Number of poles
3
Pin series quantity
1
Fitted by customer
Yes
Number of rows
1
Max. adjacent poles per row
12
Lötstiftlänge (l)
5 mm
Solder pin dimensions
1.2 x 1.2 mm
Bestückungsloch-Durchmesser (D)
1,6 mm
Tolerancja średnicy otworu oczka lutowniczego (D)
+ 0,1 mm
폴당 용접 핀 수
2
스크류드라이버 블레이드
1.0 x 5.5
PZ 2
Screwdriver blade standard
DIN 5264
Tightening torque, min.
1,2 Nm
Tightening torque, max.
1,5 Nm
Clamping screw
M 4
Stripping length
12 mm
L1 in mm
25,4 mm
L1 in inches
1 "
Touch-safe protection acc. to DIN VDE 0470
IP20 plugged/ IP10 unplugged
Touch-safe protection acc. to DIN VDE 57 106
Safe from finger touch
Protection degree
IP20
Volume resistance
0.50 mΩ

Material data

Matériau isolant
Wemid (PA)
Couleur
black
Tableau des couleurs (similaire)
RAL 9011
Groupe de matériaux isolants
I
Indice de Poursuite Comparatif (CTI)
≥ 600
UL 94 flammability rating
V-0
Matériau des contacts
Cu-alloy
Surface du contact
tinned
Structure en couches du raccordement soudé
1.5...3 µm Ni / 4...6 µm Sn matt
Storage temperature, min.
-40 °C
Storage temperature, max.
70 °C
Operating temperature, min.
-50 °C
Operating temperature, max.
120 °C
Temperature range, installation, min.
-25 °C
Temperature range, installation, max.
120 °C

Conductors suitable for connection

Plage de serrage, min.
0,13 mm²
Plage de serrage, max.
16 mm²
Section de raccordement du conducteur, AWG, min.
AWG 22
Section de raccordement du conducteur, AWG, max.
AWG 6
Rigide, min. H05(07) V-U
0,5 mm²
Rigide, max. H05(07) V-U
16 mm²
Semi-rigide, min. H07V-R
6 mm²
Stranded, max. H07V-R
16 mm²
souple, min. H05(07) V-K
0,5 mm²
souple, max. H05(07) V-K
16 mm²
avec embout isolé DIN 46 228/4, min.
2,5 mm²
avec embout isolé DIN 46 228/4, max.
10 mm²
con terminale, DIN 46228 pt 1, min.
2,5 mm²
avec embout selon DIN 46 228/1, max.
10 mm²
Plug gauge in accordance with EN 60999 a x b; ø
5.4 mm x 5.1 mm; 5.3 mm
Raccordement
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      2,5 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        12 mm
    • Recommended wire-end ferrule:
      0186100000
    • Stripping length:
      • nominal:
        14 mm
    • Recommended wire-end ferrule:
      9019170000
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      4 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        12 mm
    • Recommended wire-end ferrule:
      0244100000
    • Stripping length:
      • nominal:
        14 mm
    • Recommended wire-end ferrule:
      9019200000
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      6 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        12 mm
    • Recommended wire-end ferrule:
      0191900000
    • Stripping length:
      • nominal:
        14 mm
    • Recommended wire-end ferrule:
      0533500000
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      10 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        15 mm
    • Recommended wire-end ferrule:
      0534200000
    • Stripping length:
      • nominal:
        12 mm
    • Recommended wire-end ferrule:
      0282900000
참조 텍스트
Length of ferrules is to be chosen depending on the product and the rated voltage.
The outside diameter of the plastic collar should not be larger than the pitch (P)

Rated data acc. to IEC

tested acc. to standard
IEC 60664-1
IEC 61984
Courant nominal, nombre de pôles min. (Tu = 20 °C)
76 A
Courant nominal, nombre de pôles max. (Tu = 20 °C)
74 A
Courant nominal, nombre de pôles min. (Tu = 40 °C)
76 A
Courant nominal, nombre de pôles max. (Tu = 40 °C)
64 A
Tension de choc nominale pour classe de surtension/Degré de pollution II/2
1.000 V
Tension de choc nominale pour classe de surtension/Degré de pollution III/2
1.000 V
Névleges feszültség a III/3 túlfeszültség osztályhoz / szennyezés mértékéhez
1.000 V
Tension de choc nominale pour classe de surtension/Degré de pollution II/2
6 kV
Tensione di dimensionamento con classe di sovratensione/grado di lordura III/2
8 kV
Tension de choc nominale pour classe de surtension/Degré de pollution III/3
8 kV
Tenue aux courants de faible durée
1 x 1s with 700 A

Rated data acc. to CSA

Rated voltage (Use group B / CSA)
600 V
Rated voltage (Use group C / CSA)
600 V
Rated current (Use group B / CSA)
65 A
Rated current (Use group C / CSA)
65 A
Wire cross-section, AWG, min.
AWG 22
Wire cross-section, AWG, max.
AWG 6

Rated data acc. to UL 1059

Institute (cURus)
CURUS
Certificate No. (cURus)
E60693
Rated voltage (Use group B / UL 1059)
600 V
Rated voltage (Use group C / UL 1059)
600 V
Rated current (Use group B / UL 1059)
65 A
Rated current (Use group C / UL 1059)
65 A
Ledardiameter AWG, min.
AWG 22
Leiteranschlussquerschnitt AWG, max.
AWG 6
Reference to approval values
Specifications are maximum values, details - see approval certificate.

Packing

Verpackung
Box
VPE length
227 mm
VPE width
113 mm
VPE height
46 mm

Type tests

Test: Durability of markings
  • Standard:
    DIN EN 61984 section 7.3.2 / 09.02 taking pattern from DIN EN 60068-2-70 / 07.96
  • Test:
    mark of origin, type identification, type of material, approval marking UL, durability
  • Evaluation:
    available
  • Standard:
    DIN EN 61984 section 7.3.2 / 09.02 taking pattern from DIN EN 60068-2-70 / 07.96
  • Test:
    approval marking CSA, approval marking SEV
Test: Clampable cross section
  • Standard:
    DIN EN 60999-1 section 7 and 9.1 / 12.00, DIN EN 60947-1 section 8.2.4.5.1 / 12.02
  • Conductor type:
    • Type of conductor and conductor cross-section:
      solid 0.5 mm²
    • Type of conductor and conductor cross-section:
      stranded 0.5 mm²
    • Type of conductor and conductor cross-section:
      solid 16 mm²
    • Type of conductor and conductor cross-section:
      stranded 16 mm²
    • Type of conductor and conductor cross-section:
      AWG 22/1
    • Type of conductor and conductor cross-section:
      AWG 22/19
    • Type of conductor and conductor cross-section:
      AWG 6/1
    • Type of conductor and conductor cross-section:
      AWG 6/19
  • Evaluation:
    passed
Test for damage to and accidental loosening of conductors
  • Standard:
    DIN EN 60999-1 section 9.4 / 12.00
  • Requirement:
    0.2 kg
  • Conductor type:
    • Type of conductor and conductor cross-section:
      AWG 22/1
    • Type of conductor and conductor cross-section:
      AWG 22/19
  • Evaluation:
    passed
  • Requirement:
    0.3 kg
  • Conductor type:
    • Type of conductor and conductor cross-section:
      solid 0.5 mm²
    • Type of conductor and conductor cross-section:
      stranded 0.5 mm²
  • Evaluation:
    passed
  • Requirement:
    2.9 kg
  • Conductor type:
    • Type of conductor and conductor cross-section:
      solid 16 mm²
    • Type of conductor and conductor cross-section:
      stranded 16 mm²
    • Type of conductor and conductor cross-section:
      AWG 6/7
  • Evaluation:
    passed
Pull-out test
  • Standard:
    DIN EN 60999-1 section 9.5 / 12.00
  • Requirement:
    ≥15 N
  • Conductor type:
    • Type of conductor and conductor cross-section:
      AWG 22/1
    • Type of conductor and conductor cross-section:
      AWG 22/19
  • Evaluation:
    passed
  • Requirement:
    ≥20 N
  • Conductor type:
    • Type of conductor and conductor cross-section:
      H05V-U0.5
    • Type of conductor and conductor cross-section:
      H05V-K0.5
  • Evaluation:
    passed
  • Requirement:
    ≥100 N
  • Conductor type:
    • Type of conductor and conductor cross-section:
      H07V-K16
    • Type of conductor and conductor cross-section:
      H07V-U16
    • Type of conductor and conductor cross-section:
      AWG 6/7
  • Evaluation:
    passed

Important note

Conformité IPC
Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.
Remarques
  • Additional variants on request
  • Rated current related to rated cross-section & min. No. of poles.
  • Wire end ferrule without plastic collar to DIN 46228/1
  • Wire end ferrule with plastic collar to DIN 46228/4
  • The data given under CSA relates to a cUL approval - E60693
  • P on drawing = pitch
  • Rated data refer only to the component itself. Clearance and creepage distances to other components are to be designed in accordance with the relevant application standards.
  • Long term storage of the product with average temperature of 50 °C and maximum humidity 70%, 36 months


Classifications

ETIM 8.0
EC002643
ETIM 9.0
EC002643
ETIM 10.0
EC002643
ECLASS 14.0
27-46-01-01
ECLASS 15.0
27-46-01-01
