Özellikler

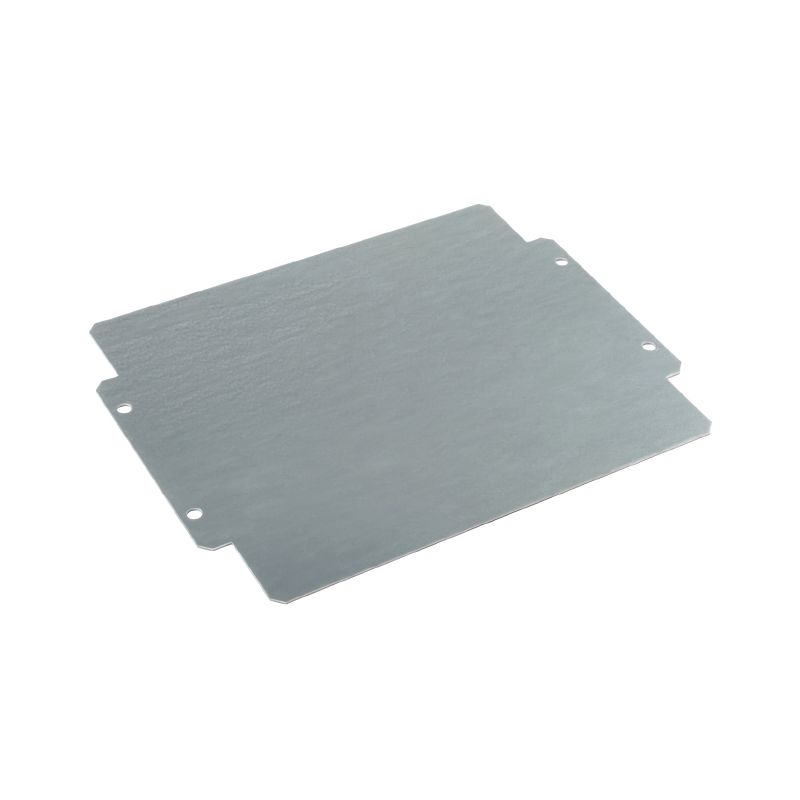

| Version | Klippon K (aluminium empty enclosure), Mounting plate, Mounting plate, Height: 213 mm, Width: 264 mm, Depth: 2 mm, Material: Sheet steel, galvanized, galvanized, silver |
| Order No. | 3073140000 |
| Type | MOPL K71 STAHL |
| GTIN (EAN) | 4008190858070 |
| Qty. | 1 adet |
| Depth | 2 mm |
| Depth (inches) | 0,079 inch |
| Height | 213 mm |
| Height (inches) | 8,386 inch |
| Width | 264 mm |
| Width (inches) | 10,394 inch |
| Mounting dimension - height | 80 mm |
| Mounting dimension - width | 250 mm |
| Net weight | 789 g |
| REACH SVHC | / |
| Material | Sheet steel, galvanized |
| Material thickness | 2 mm |
| Surface finish | galvanized |
| Type of fixing | when screwed in |
| Material | Sheet steel, galvanized |
| Material thickness | 2 mm |
| Mounting dimension - height | 80 mm |
| Mounting dimension - width | 250 mm |
| Surface finish | galvanized |
| Type of fixing | when screwed in |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.3073140000) |
| WSCAD Universe | [WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=3073140000&norm=0) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000213 |
| ETIM 7.0 | EC000213 |
| ETIM 8.0 | EC000213 |
| ETIM 9.0 | EC000213 |
| ECLASS 9.0 | 27-40-06-39 |
| ECLASS 9.1 | 27-18-92-90 |
| ECLASS 10.0 | 27-40-06-39 |
| ECLASS 11.0 | 27-40-06-39 |
| ECLASS 12.0 | 27-40-06-39 |
| ECLASS 13.0 | 27-40-06-39 |
| ROHS | Conform |
